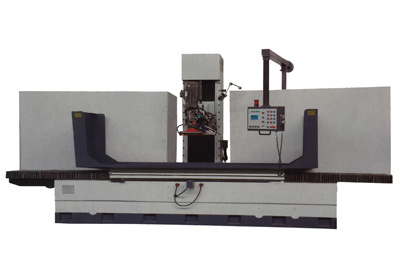

Ningbo Blin Machinery Co., Ltd. >> Special PLC Column Moving Guideway Grinder, Grinding Machine (BL-MG60*1600/2200/3000/6000, MG80*1600/2200/3000/4000) (China top quality)

Special PLC Column Moving Guideway Grinder, Grinding Machine (BL-MG601600/2200/3000/6000, MG801600/2200/3000/4000) (China top quality)

Name: Special PLC Column Moving Guideway Grinder, Grinding Machine (BL-MG60*1600/2200/3000/6000, MG80*1600/2200/3000/4000) (China top quality)
Brand: china-manufacturer-directory.com
SKU: 771323865
Availability: InStock
Rating: 4.6 (30 reviews)

Supplier:	Ningbo Blin Machinery Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Guideway Grinder(BL-MG60/80)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Worktable Size(W*L):	6101600/6102200/6103000/8101600/810*2200mm
Max Processing Dimension(W*L):	6101600/6102200/6103000/8101600/810*2200mm
Max. Grinding Height:	600/790/850/1050;450/650/700/900mm
Longitudinal Moving Speed Of Worktable:	6~23m/Min
Vertical Wheel Head Rotating:	+30,+5,-30,-5
Rapid Speed:	0.05~2m/Min
Hand Wheel Feed:	0.005m/Div
Spindle Motor:	5.5kw
Max Loading Capacity Of Worktable With C:	1230/1690/2300/1630/2240/3060/6000kg
Total Rated Power:	17/17/17/17/17/19/27/27kw
Type:	Surface Grinding Machine
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Precision:	High Precision
Processing Object:	Metal Surface

Product Description

Special PLC Column Moving Guideway Grinder,Grinding Machine(BL-MG60*1600/2200/3000/6000,MG80*1600/2200/3000/4000)(CHINA top quality)

Specification:

Item		Unit	MG60×1600	MG60×2200	MG60×3000	MG80×1600	MG80×2200	MG80×3000	MG60×6000	MG80×4000
Worktable size(W×L)		mm	610×1600	610×2200	610×3000	810×1600	810×2200	810×3000	610×6000	810×4000
Max processing dimension(W×L)		mm	610×1600	610×2200	610×3000	810×1600	810×2200	810×3000	610×6000	810×4000
Max. grinding height		mm	600/790/850/1050						450/650/700/900
Longitudinal moving speed of worktable		m/min	6~23
Vertical wheel head rotating		°	+30°,+5°,-30°,-5°
Wheel head cross moving	Rapid speed	m/min	0.05~2
Wheel head cross moving	Hand wheel feed	mm/div	0.005
Wheel head vertical moving	Rapid speed	m/min	0.05~2
Wheel head vertical moving	Hand wheel feed	mm/gra	0.005
Grinding Wheel	Speed	rpm	1450(50hz)
Grinding Wheel	Size(O.D.×W×I.D.)	mm	According to technology reuqirement
Spindle motor		kw	5.5
Max loading capacity of worktable with chuck		kg	1230	1690	2300	1630	2240	3060	6000	6000
Total rated power		kw	17	17	17	17	17	19	27	27
N.W.		kg	8500	9500	12500	10000	11500	14000	25000	22000
Overall size(L×W×H)		mm	4700×3000×2720	6000×3000×2920	8200×3000×2920	4700×3500×2920	6000×3500×3000	8200×3600×3000	17000×3000×3000	13500×3600×3000

Remark: NC servo motor used on cross and vertical movement, Hydraulic drove longitudinal movement.

Standard Configuration:
Wheel balancing arbor
Flange and Wheel extractor
Working lamp
Wheel dresser base (without diamond pen)
Wheel
Leveling screw and wedge
Built in electro magnetic chuck controller
PLC auto grinding controller
Coolant tank with magnetic separator
Hydraulic angle wheel dresser
Balance stand

Optional configuration:
Electro magnetic chuck
