Splicing Box Machine for Mobile Phone Boxes with CE Certificate (3PCS board)
Product Specifications
| Prod Model: |
ZK-660ANP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Box Size:400*300*125mm: |
Min Box Size:125*85*20mm |
| Precision Error: |
±0.5mm |
Product Description

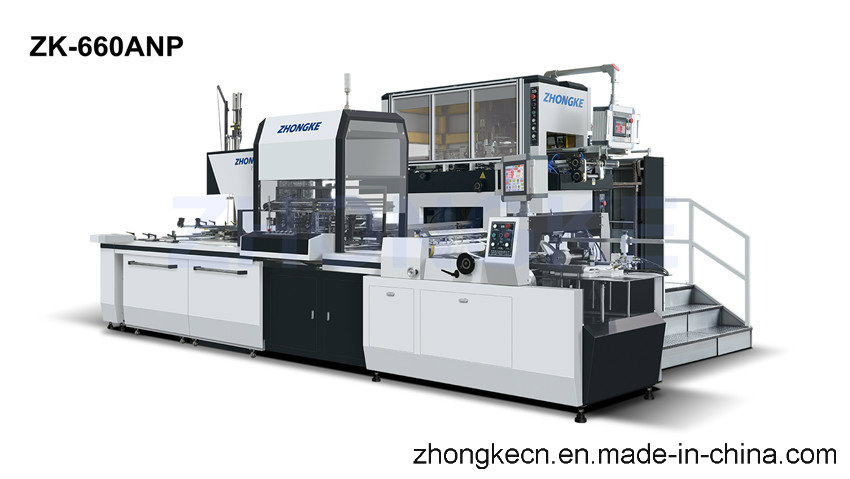

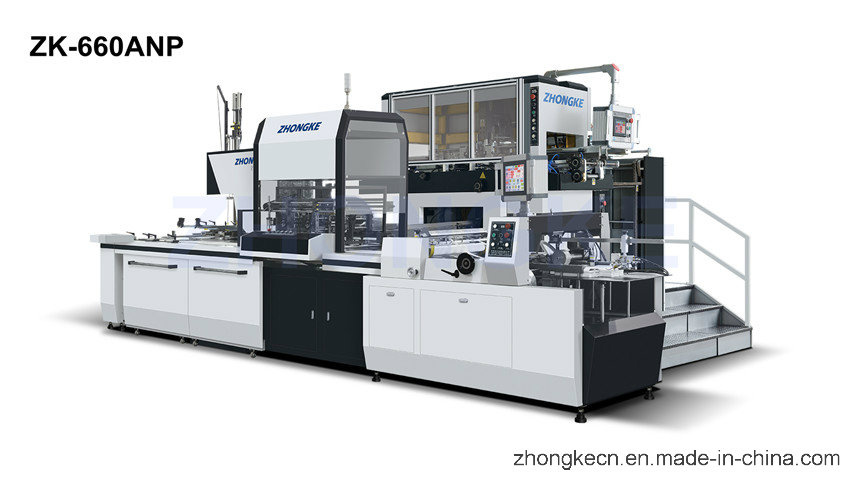

Full Automatic Rigid Box Making Machine with 3pcs board
Model: ZK-660ANP
General Introduction:Zhongke is the first factory to produce Full-Automatic Rigid Box Making Machinery in China. Our machine is suitable to produce the cardboard or chipboard boxes, such as shoe box, elegant gift box, Shirt box, strap boxes, puzzle game box and any two pieces set-up box. Jointed board(panel)-type automatic box making machine
To the essence and economize,close to the perfect box making process
New concept, full automatic, zero waster with jointed board-type automatic box making machine
PHJ4030 is a unique professional equipment for specialized production upscale box case.
Unprecedented, new benchmark for making box.
Close to the perfect box making process, subversion of the traditional
After market research, the current box making process all have platemaking trouble, serious waste of raw materials, finished products not solid enough etc series problems, materials waste problem is particularly prominent.
Zhongke solved all the problems for you
Jointed board(panel)-type automatic box making machine will be fully automatic,zero-waste concept, solved all problems for clients, bring a reform for box making industry.
Original jointed board(panel)-type box making process, guidelines a new direction for box making industry,solved the problems of platemaking trouble and materials waste.
Hot melt glue spray technology will completely replace the previous taped box process, the product more solid and beautiful, can be point spray and line spray etc variety of ways according to process requirements.
Characteristics:
1.by spray system three board together,simple transformed,less waste
2.Elegant rigid box without any imprint of corner tapper,product is strong and beautiful
3.Precision feeding system for paper,unparalleled sheets, high efficiency.
4.Stainless steel and chrome roll plastic bag fitted with a small roller,glue thickness is easy to control,and durable
5.high-precision optical positioning to ensure positioning accuracy±0.2mm
6.Can make ear-to-ear and ear-cross-ear folding boxes
Product Introduction
ZK-660ANP is now china's most advanced and most efficient equipment of producing perfect
bottom-locked cardboard cartons and cover like shoes boxes, shirt boxes, garment boxes,
gift boxes and other boxes.

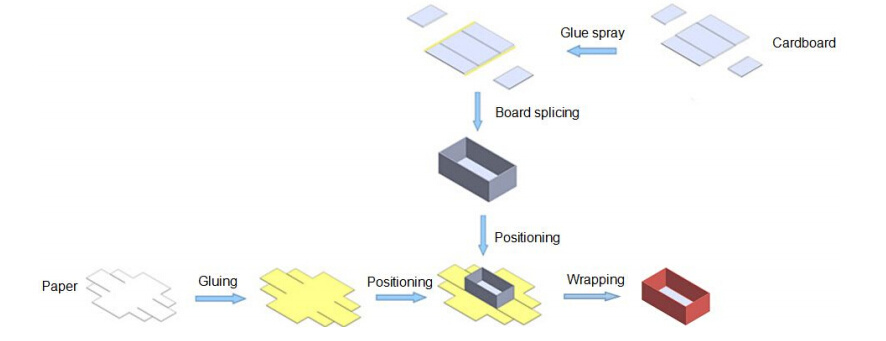

The machine wrapped the box in one process. It adopts PLC programmable
controller, photoelectric tracing system, touch-sensitive screen, achieving paper feeding, gluing,
cardboard folding,
spotting, automatic arm guiding, wrapping, and box coming out in one process. The entire processes are automatic. Compared with the traditional hand made production, the produce efficiency improves by 50 times. (Please visit our website or call us for the detail information)
Advantages:Comparing with other semi-automatic machine or handmade working, our full-automatic machine has more advantages: 1. We only need 2 operators to run the machine. However semi-automatic machine need about 12 skilled employees.2. Our machine needs the hot melt glue, which has no pollution to people. However semi-automatic machine use the white glue or industrial glue, which has the fatal damage to people's health.3. The quality of the finished box is good, because it was controlled by the computer and accurate servo motor. The error is about 0.5mm. However the semi-automatic machines make the box by their eyes and experiences. The error is big.4. Our machine has the fast speed to make the box, about 1500pcs/hour. And the broken error probability is less than 2%. Technical Specification:1. Size of the finished box: (125-400mm) × (85-300mm) × (20-125mm)The size of the box is adjustable as long as it is in the above dimension ranges.2. Speed up to: 20-25PCS/min3. Paper wrap thickness: 100-160 GSM (smooth)4. Cardboard blank thickness: 0.8-3mm (The same thickness and smooth)5. Electrical power: 380V, 50Hz, 20KW6. Dimension: 6800mm(length)× 4300mm(width)× 2900mm(height)7. Weight: 8000kg8. Position error: About ± 0.5mm Lines for the production of rigid set up boxes(luxury boxes, luxury packaging, gift boxes, wine and spirit boxes, shirt and shoes boxes, make-up and toiletry boxes, biscuits and cakes boxes, ring binder boxes, cd dvd and book boxes, cylindrical boxes).
| Paper wrap size | Amin | 150mm |
| Paper wrap grammage | Min | 100g/ |
| Amax | 580mm | Max | 160g/ |
| Bmin | 180mm | Cardboard blank thickness | Min | 0.8mm |
| Bmax | 660mm | Max | 3mm |
| Box size | Lmin | 125mm | Speed | 1500(Cycle/h) |
| Lmax | 400mm | Paper pile height | 260mm |
| Wmin | 85mm | Cardboard pile height | 1000mm |
| Wmax | 300mm | Electrical power | 20kw |
| Hmin | 20mm | Glue tank capacity | 45(Litre) |
| Hmax | 125mm | Air supply | 12(Litre/min) |
| Folding Edge Range :R | Rmin | 12mm | Net weight | 8000kg |
| Rmax | 55mm | Machine overall dimension | L6.8XW4.3XH2.9m |
Zhongke Packaging Machinery Co., Ltd. Was established in 2002. It is the first leading enterprise in China to independently develop and create a series of automatic rigid box making machines. Founded the two major brands of "ZHONGKE" and "HEWANG Box King"The company took the lead of this industry in passing the international quality system ISO9001 certification, environmental protection system ISO14001 certification, Safety system ISO18000 certification, EU CE safety system certification, intellectual property management system GB/T29490-2013 certification. Zhongke covering an area of 100, 000. It is a private economic entity integrating independent research and development, design, production, sales and service. On the basis of drawing on the advanced technology of similar foreign products.
After 20 years of development, the company has established perfect sales network and integrated after-sale service system at domestic and abroad, which enables the company to provide timely, accurate and efficient services, and won good customer reputations. The products are sold all over in China and exported to more than 60 countries and regions such as Europe, America, Southeast Asia, South America, Middle East and Africa. The production, sales volume and scale are all ranked first in the same industry
Zhongkenese welcome the domestic and foreign merchants to visit us with investigation, negotiation and ordering!
Business Type: Manufacturer/Factory & Trading Company
Number of Employees: 158
Management System Certification: ISO 9001
International Commercial Terms: FOB, CIF
Terms of Payment: LC, T/T
Average Lead Time: Peak season lead time: one monthOff season lead time: one month
Number of Foreign Trading Staff: 1~3 People
Export Year: 2006-09-09
Export Percentage: 31%~40%
Main Markets: North America, Europe, Southeast Asia/ Mideast
Export Mode: Have Own Export License
Factory Address: 301#, Wanxiang Rd., Light Industry Base, Wanquan, Pingyang County, Wenzhou City, Zhejiang Pro., China
R&D Capacity: OEM
No. of R&D Staff: 11-20 People
No. of Production Lines: Above 10
Annual Output Value: Above US$100 Million
