Product Specifications
| Prod Model: |
SSR-10DD |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Western Europe |
| Brand: |
Winston |
| Protect Feature: |
Sealed |
| Contact Load: |
Low Power |
| Load Voltage: |
5-60VDC |
| Load Current: |
10A 25A 40A, 60A, 75A, 90A |
| Control Current: |
DC5-50mA |
| Control Voltage: |
DC3-32V |
| The Work Instructions: |
LED |
| On Voltage: |
<=1.5V |
| Off Leakage Current: |
<=2mA |
Product Description
Product Description

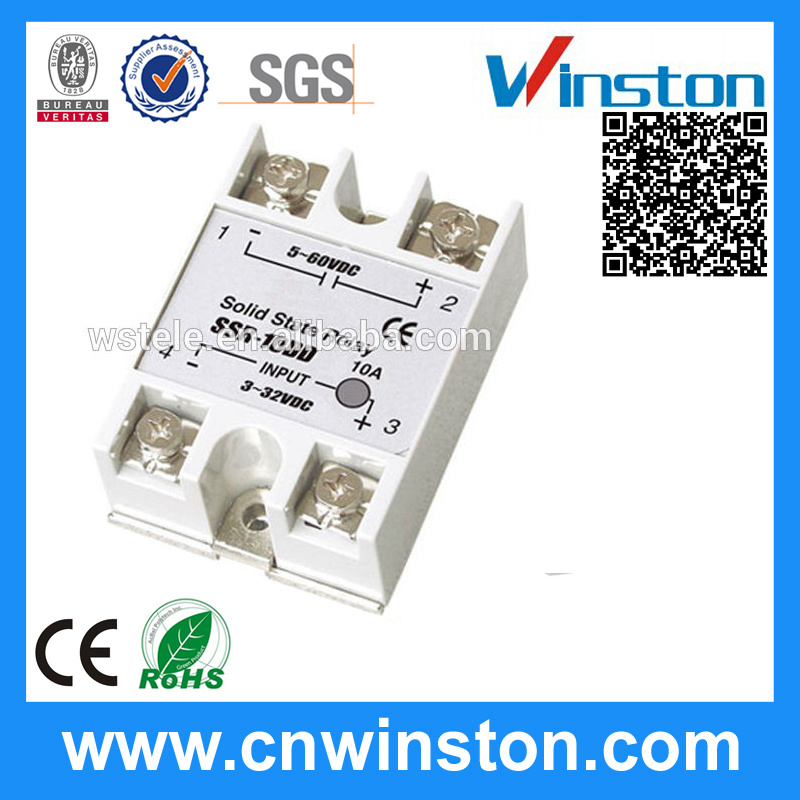

SSR- 10DD Single phase DC Solid state relay
Specification
1.Bidirectional thyristor output, zero voltage, zero current turn off;
2.Optical isolation between the input circuit and output circuit;
3.Isolation between the input - output voltage 2500 v.
4.100% load current aging test, through the European CE certification
Technical parameters
Input | 3-32VDC(fixed current) 13mA &12V |
| Output | 24-380VAC/90-480VAC(10-75Amp) |
| Control type | Zero Cross Trigger |
| Response time | ON<20ms/OFF<40ms |
| Voltage withstand | Over 2.5Kvac/1Min |
| Insulating strengh | Over 50m/500DC |
| Dimmension | 62.5*44.8*23.2mm |
| High strengh ABS engineering plastics, gray case with LED indicator |
| Basic type | SSR-10DA | SSR-25DA | SSR-40DA | SSR-50DA | SSR-60DA | SSR-75DA |
| High voltage type |
| SSR-25DA-H | SSR-40DA-H | SSR-50DA-H | SSR-60DA-H | SSR-75DA-H |
Input | 80-250VAC |
| Output | 24-380VAC/90-480VAC(10-75Amp) |
| Control type | Zero Cross Trigger |
| Response time | ON<20ms/OFF<40ms |
| Voltage withstand | Over 2.5Kvac/1Min |
| Insulating strengh | Over 50m/500DC |
| Dimmension | 62.5*44.8*23.2mm |
| High strengh ABS engineering plastics, gray case with LED indicator |
| Basic type | SSR-10AA | SSR-25AA | SSR-40AA | SSR-75AA |
| High voltage type |
| SSR-25AA-H | SSR-40AA-H | SSR-75AA-H |
Input | Trimmer/250K to 110V |
| Output | 24-380VAC(10-40Amp) |
| Control type | Phase control |
| Voltage withstand | Over 2.5Kvac/1Min |
| Insulating strengh | Over 50m/500DC |
| Dimmension | 62.5*44.8*23.2mm |
| High strengh ABS engineering plastics, gray case with LED indicator |
| Basic type | SSR-10VA | SSR-25VA | SSR-40VA |
| High voltage type |
|
|
|
Input | 3-32VDC 12mA &12V |
| Output | 5-60VDC/5-200VAC(5-80Amp) |
| Control type | Isolated by photocouple |
| Response time | ON<10ms/OFF<20ms |
| Voltage withstand | Over 2.5Kvac/1Min |
| Insulating strengh | Over 50m/500DC |
| Dimmension | 62.5*44.8*23.2mm |
| High strengh ABS engineering plastics, gray case with LED indicator |
| Basic type | SSR-05DD | SSR-10DD | SSR-25DD | SSR-50DD | SSR-80DD |
| High voltage type |
| SSR-10DD-H | SSR-25DD-H | SSR-50DD-H | SSR-80DD-H |
TRADE INFO
Trade Terms:FOB ,CIF ,CFR,EXW,DDP
Payment terms:T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions:30% deposit in advance,70% balance before shipping.
Delivery time:3-7working days after deposit,2-4 working days for inventory
Packing:Neutral carton,Wooden case for large size
Shipping:By sea,by air and by express delivery
