Product Specifications
| Prod Model: |
CIC-FAS/20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Color: |
Yellow |
| Cable Type: |
50/125 |
| Ferrule End-Face: |
Upc , PC, APC |
| Fiber Type: |
Singlemode |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
ST |
| Certification: |
RoHS |
| Brand: |
Cy |
Product Description

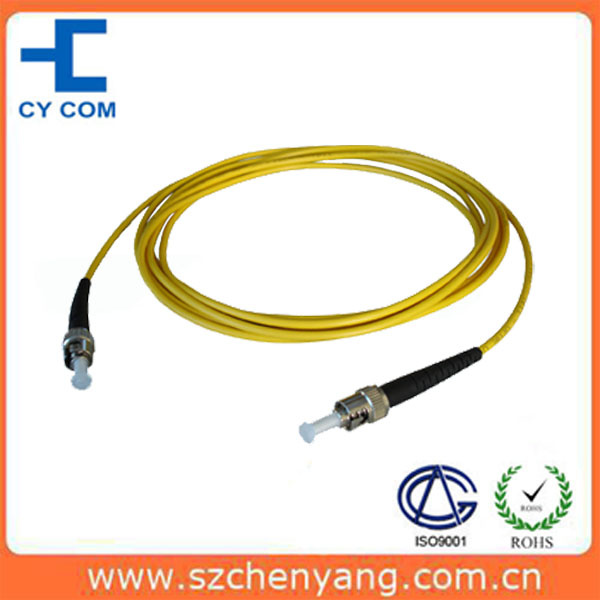

ST UPC SM Duplex Fiber Optic Patch Cord RoHS standard
Description:
ST Type,the structure is Snap lock with key,with the Precision and Outer diameter of2.5mm ceramic ferrule.the ferrule
end face is pc commonly.The main features are very convenient to use for communication network and local network.
In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically to guarantee the best quality. For standard patch cords, sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements. For premium grade, ferrule geometry is tested on all patch cords to meet these GR-326 requirements.
Other than standard single mode and multimode fibers, G655, OM2, and OM3 fibers are also
Available upon request. Flame retardant grade cable sheathing options are offered. Riser rated cable will be provided as standard. LSZH and Plenum can be provided upon request.
Features:
Small form factor design
Pull-proof
Non-optical disconnect performance
High quality zirconia ferrules
Materials meet RoHS requirements
Riser, Plenum, and LSZH cables available
Application:
Telecommunication
Computer networks
CATV networks
Active device termination
Instrumentation
Google
SCNTT-SC,SC..
|
Item |
Unit |
FC,SC,LC |
ST,MU |
MT-RJ, MPO |
E2000 |
|
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|
PC |
UPC |
APC |
PC |
UPC |
PC |
PC |
PC |
UPC |
PC |
PC |
UPC |
|
Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
Operating wavelength |
nm |
1310,1510 |
1310,1510 |
1310,1510 |
1310,1510 |
|
Exchengeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Operating temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
|
Storage temperature |
°C |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
|
Cable Diameter |
mm |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
