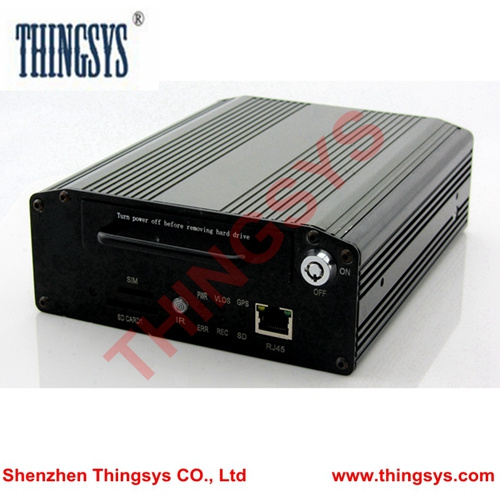

Stable 4 CH Vehicle Mobile DVR with Black Box Car Running Record Function

Name: Stable 4 CH Vehicle Mobile DVR with Black Box Car Running Record Function
Brand: China-Manufacturer-Directory.com
SKU: 747069455
Availability: InStock
Rating: 5 (29 reviews)

Supplier:	Shenzhen Thingsys Co., Ltd.
Price:	US $ 115-175/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	TS-MDR8000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Feature
This product is designed for car video monitoring and remote controlling, it has a high
Cost-performance and good function expansibility. Adopting high-speed processor and
Embedded OS, connecting the advanced H. 264 video compressing & un-compressing tech, 3g network tech, GPS positioning tech get the car-driving information and video data store in the SD card with CIF or HD1, D1 form. It can also achieve the alarm center monitoring, remote controlling and replay analyzing when match with the center software. The product features with a brief appearance, super shock-proof, flexible installation, powerful function, high reliability, etc. Details as following
1. Adopt advanced H. 264 main profile video compression format: High compression ratio, clear images, small disk space
2. HDD/SD card storage for easy data reading
3. Adopt general file format. Support main stream H264 player in the market
4. Power-off protection for video content; Ensure the integrality of record when power failure occurs.
5. Adopt industrial electronic components and industrial design
6. +6V~+48V wide voltage design, apply to all kinds of vehicles
7. Support 12V/2A power output, can supply power to other relative devices
8. Support 4CH alarm input and 1CH alarm output
9. Support GPS module, can real-time record vehicles speed and auto timing
10. Support 3G video transmission function (EVDO/WCDMA/TD-SCDMA etc. Optional)
11. Professional playback analysis software: GPS track, running state, speed, black box data and audio video images synchronized playback etc.
12. Manage software centrally; Support real-time transmitting of vehicle images and alarm information etc.
13. Blue & Black Color For Optional

Main function
Function	Item	description
Recording System	Video channel	1-4 ch (optioanl)
	resolution	Support CIF(352X288)\HD1(704X288)\D1(704X576)
	Image quality	1-4 levels, 1 is the highest level and 4 is the lowest level.
	OSD	Overlays information such as date time and vehicle ID
	Storge Device	Support HDD/SD card recycle recording. and the data will be automatically overwritten .
	Record mode	The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.
	preview	Support 1 channel and 4 channels preview.
	Disk Data overwritten	Support disks overwritten function.
Playback System	Video search	Search video files anytime per day, type(n/a)
	playback	Support 1 to 4 channels playback.
		Support forward and backword play at the speed of: x 2,x4,x8,x16.
		Support alarm spot search and time search
GUI	Graphical User Interface	Setup system parameters with the remoter control.
Alarm	input	4 channels alarm input; trigger alarm record (optional)
	input	Pre-record 15 seconds ahead of the alarm. Record duration after alarm can be set in system
	output	Max support 2CH output (optional)
Optional functions	GPS positioning	Built-in GPS module: can sync record GPS information
	Network	RJ45 Ethernet port.
		CDMA/EDGE module optional
		EVDO/WCDMA/TD-SCDMA 3G module optional
Others	Power Settings	System delay-time power on/off:
	Power Settings	1,Vehicle acc on/off---system auto power on after acc on, system power off according to the delay time (up to 240min, default 5min) after acc off. 2,Preset time---Only according to time preset table.
	Power-off protection	With the power-off protection, all data can be saved safely and the recording can be closed normally after power failure.
Specification
item	Equipment parameter	Performance index
system	Processor	Adopt H.264 high performance processor, strong coding and decoding
	OS	Embedded real-time Linux system
	System	PAL/NTSC
	Operation interface	Graphical menu operation interface(OSD menu)
	Security	Two level password protections for administrators and users
Video	Video input	Input: 4 CVBS, 1.0V,p-p,75Ω
	Video output	Output: 1 CVBS, 1.0V,p-p,75Ω
	Review function	1 channel or 4 channel review mode
	Video Standard	PAL,25 frame/s, CCIR625 line, 50 field NTSC,30 frame/s, CIR525 line, 60 field
Audio	Audio input	Input: 2 channel Audio
	Audio output	Output: 1 channel,100mV-500mV/100-500 Ω
	Output level	1V ~2V
	Audio Recording	Synchronized with video
	Audio Compression	G.726
Image processing and storage	Image compression	H.264,variable code stream (VBR)/ fixed code stream(CBR)
	Image format	Every channel D1/HD1/CIF (optional)
	Video streaming	ISO14496-10
	Audio streaming	G.726
	Video code rate	CIF: 256Kbps ~ 1.5Mbps, 4 levels, 1 is the highest level and 4 is the lowest level. HD1: 600Kbps ~ 2.5Mbps, 4 levels, 1 is the highest level and 4 is the lowest level. D1: 800Kbps ~ 3Mbps, 4 levels, 1 is the highest level and 4 is the lowest level.
	Video frame rate	PAL max 25 frame ,NTSC: max 30 frame ,frame dynamic adjustment
	Audio code rate	5KB/s
	Record storage	Max 1TB HDD & 64GB SD Card
Alarm	Alarm input	4CH input
Alarm	Alarm output	2 CH output
Communication Interface	Serial port	Support 1 RS232 interface
Communication Interface	Network port	RJ45 10M/100M Ethernet port.
Wireless communication	3G	EVDO/WCDMA/TD-SCDMA (optional)
Wireless communication	2.5/2.75G	GPRS/CDMA/EDGE(optional)
GPS	Support built-in/external GPS module; geographic coordinates, speed etc. can written in the video file
Software upgrading	Support SD card upgrading
Others	Power input	DC:+6V ~ +48V
	Power output	+12V 2A
	Working temperature	-25 to +75
	Environment humidity	20% to 80%

As a member in fast expanding thing system industry, Shenzhen Thingsys Co., Ltd. has been involved in R&D, production, sales and service of GPS trackers and related products for 5 years. We're one of the most experienced company which offers GPS tracking products and GPS tracking system solutions while we also have OEM and ODM service to our end customers or middle customers.

We have been earning good reputation widely across the world depending on our sophisticated experience and advanced technology capability into GPS tracking industry and GPS related product, including software and hardware. We have been also engaged to establish excellent application of GPS tracking products for local state communication companies, industry operator, government, social community, etc.

We've been striving for excellent work in offering our customers software and hardware of GPS tracking, comprehensive solution and customized requirement, with great efforts from our talented engineers of software and hardware in our R&D department.

We have our own production line together with advanced production facilities, test facilities and strict system of quality control, which will assure that any one of our products and solutions are really in warranty for the functionality and duration of our quality.

Harbored with service concept of "Partnership, Double-Win", we're pursuing advanced trustable stable functioning products and solutions with invented products, rational price and perfect technology support. We're looking for a grow-up and strengthen-up together with you in a fast expanding world connected by things.
