STB1-63h Series MCB (Miniature Circuit Breaker)

Product Specifications

Prod Model:	STB1-63, etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Modules:	1, 2, 3, 4
Color:	Customized
Paint Finish:	Customized
Standards:	CE
Brands:	Metworld
Type Of Trip:	Thermal or Magnetic
Ambient Temperature:	-5 to 40
Installations:	Mounting on 35mm DIN Rail
Degree:	20
Catagory:	Lug and Pin
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	SMD
Structure:	MCB
Poles Number:	4
Certification:	CB

Product Description

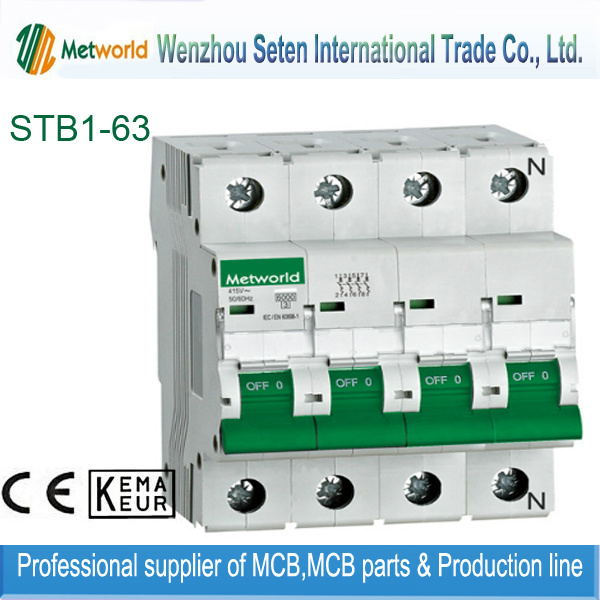

STB1-63H Mini Circuit Breaker

SPECIFICATIONS	Tripping  Curve	Rated  current (A)	Pole	Voltage (V)	Breaking  capacity (A)	Standard
6A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
10A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
16A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
20A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
25A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
32A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
40A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
50A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
63A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898


STB1-63 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system. The product novel in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly and its installation uses with guide, its case and items are adopted with high fire-resistant and shockproof plastic. The product, with long life, is mainly used in AC 50/60Hz single-pole 240V or two, three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. This product conform with GB10963, IEC60898.
