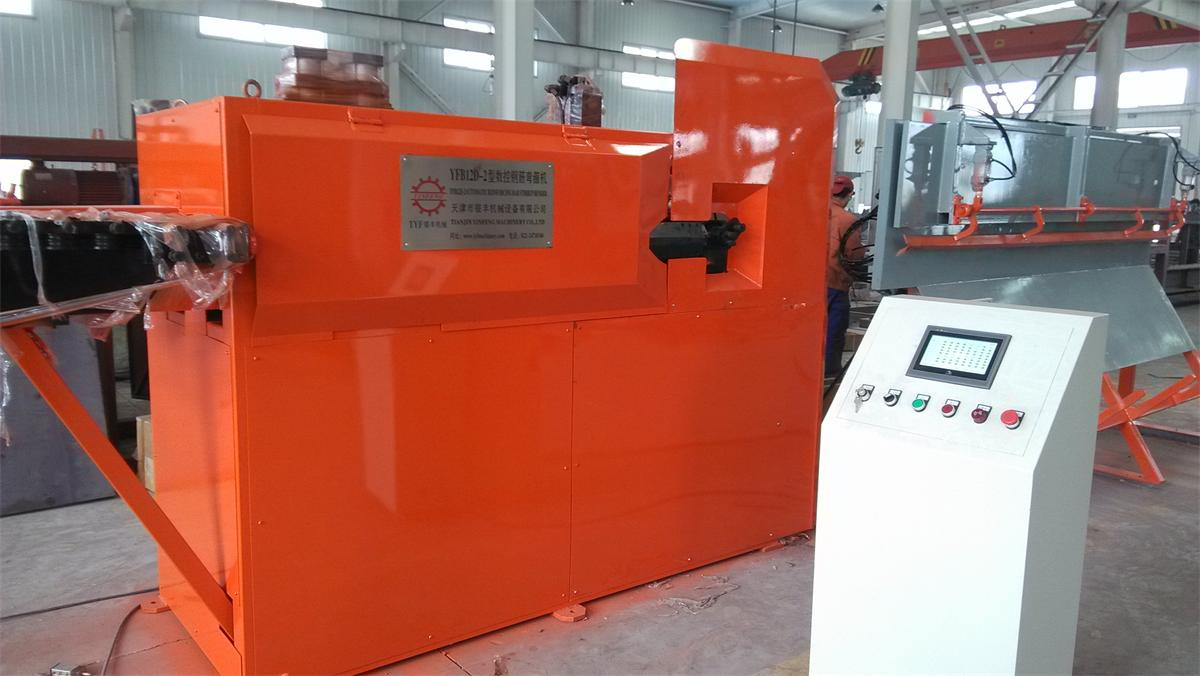

Stirrup Bending Machine (YFB-12)

Name: Stirrup Bending Machine (YFB-12)
Brand: china-manufacturer-directory.com
SKU: 671724562
Availability: InStock
Rating: 4.6 (137 reviews)

Supplier:	Tianjin Yinfeng Machinery Equipment Co., Ltd.
Price:	US $ 37500/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YFB-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Driven:	Servo Motor System
Operation:	Full Automatic
Control:	CNC System
Used:	High Speed Way, Construction
Type For Cutting Machine:	CNC Cutting Machine
Type For Fold-bending Machine:	CNC Fold-bend Machine
Application:	Machinery & Hardware

Product Description

Product Features:
1. Frictional progressive feeding mechanism with high accuracy and no harm to steel bar rib.
2. The benders apply double line feeding system, which can greatly increase the productivity and reduce the labor intensity.
3. With the function of quick back and forth bending, the double vane bending die has improved its bending performance.
4. Powerful hydraulic shearing mechanism with good reliability.
5. The powerful memory database provides hundreds of shapes for using.
6. Quick-adjusting system has the function of machine diameter.
7. Bending scope of coiled steel bar ranges from 6mm to 12mm
8. Synchronous belt drive with high accuracy and low cost of maintenance.
9. Controlling system equipped with Panasonic PLC, Panasonic touch screen.

Single wire	Φ5-12 [mm]
Double wire	Φ5-10 [mm]
Max bending angle	180°
Max bending speed	1100 [°/sec]
Max pulling speed	110-130 [m/min]
Max length of the stirrup side	1300 [mm]
Min length of the stirrup side	60 – 90 [mm]
Length Tolerance	±1 [mm]
Bending Tolerance	±1°
Average pressure consumption	6 [l/min]
Average electric power consumption	5-8 [KW/h]
Labeled electric power	31.5 [KW] (include air compressor)
Voltage	380 [V]-50 [Hz]
Overall machine weight	4,700 [Kg]
Overall dimension	3660x1600x2250 [mm]
Bending direction	Bi-direction

Tianjin Yinfeng Machinery Co., Ltd. Main products: Stirrup Bender, Automatic bar shearing and straighten machine, Lattice girder welding machine, Truss girder welding machines, Cage welding line, Wire Straightening And Cutting Machine, Automatic reinforcing bar Stirrup bender, Roof tile machine, Block making machine, Aerated concrete production equipment, crusher and glazed tile making machine. Company Tenet: To offer the best products and service for customers.
