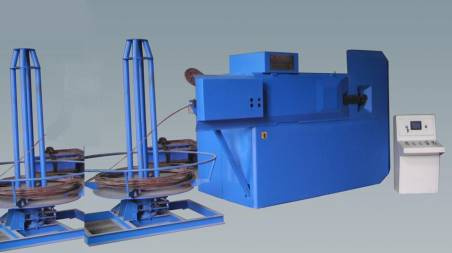

Stirrup Bending Machine

Name: Stirrup Bending Machine
Brand: China-Manufacturer-Directory.com
SKU: 671834222
Availability: InStock
Rating: 4.9 (54 reviews)

Supplier:	Tianjin Yinfeng Machinery Equipment Co., Ltd.
Price:	US $ 32000/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YFB-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Driven Power:	Servo Motor System
Operation:	Full Automatic
Control:	CNC System
Used:	High Speed Way, Construction
Type For Cutting Machine:	CNC Cutting Machine
Type For Fold-bending Machine:	CNC Fold-bend Machine
Application:	Machinery & Hardware, Construction, High Speed Way

Product Description

1. Frictional progressive feeding mechanism with high accuracy and no harm to steel bar rib.
2. The benders apply double line feeding system, which can greatly increase the productivity and reduce the labor intensity.
3. With the function of quick back and forth bending, the double vane bending die has improved its bending performance.
4. Powerful hydraulic shearing mechanism with good reliability.
5. The powerful memory database provides hundreds of shapes for using.
6. Quick-adjusting system has the function of machine diameter.
7. Bending scope of coiled steel bar ranges from 6mm to 12mm
8. Synchronous belt drive with high accuracy and low cost of maintenance.
9. Controlling system equipped with Panasonic PLC, Panasonic touch screen.

Single wire	Φ5-12 [mm]
Double wire	Φ5-10 [mm]
Max bending angle	180°
Max bending speed	1100 [°/sec]
Max pulling speed	110-130 [m/min]
Max length of the stirrup side	1300 [mm]
Min length of the stirrup side	60 – 90 [mm]
Length Tolerance	±1 [mm]
Bending Tolerance	±1°
Average pressure consumption	6 [l/min]
Average electric power consumption	5-8 [KW/h]
Labeled electric power	31.5 [KW] (include air compressor)
Voltage	380 [V]-50 [Hz]
Overall machine weight	4,700 [Kg]
Overall dimension	3660x1600x2250 [mm]
Bending direction	Bi-direction
