Product Specifications
| Prod Model: |
800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cross Section: |
Min/Max 0.50-10mm2 |
| Wire: |
0.15-0.6mm |
| Barrel: |
Min200mm |
| Precision: |
High Precision |
| Heating System: |
Electric |
| Demoulding: |
Automatic |
| Function: |
High Temperature Resistance |
| Warranty: |
24 Months |
| Customized: |
Customized |
| Condition: |
New |
| Automatic Grade: |
Automatic |
| Certification: |
ISO |
| Mould Life: |
>1,000,000 shots |
Product Description

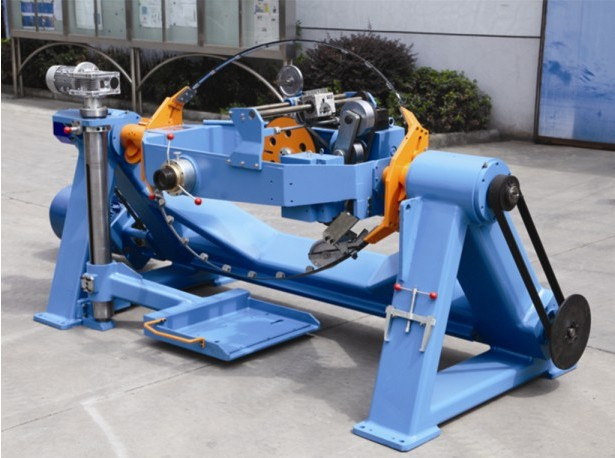

The Latest Italy type
Performances:
Flexible strand
Cross section: Min/max 0.50-10mm2
Semirigid strand
Cross section(1+6): Min/max 0.35-6mm2
Strand cross section
Cross section(1+6+12UNILAY): Min/max 0.597-6mm2
Wire: 0.15-0.6mm
0.252-1.04mm
0.20-0.60mm
Finished product sizes:
Flexible strand: MAX5.4mm
Semirigid strand(1+6): Min/max 0.75-6mm2
Strand cross section(1+6+12): Min/max 0.97-3mm2
With reduction unit Z=28/57 from 17.11-180.74mm
Max. Rotation speed: 2375r. P. M
Max. Linear speed: 300m/min(with bobbin barral≥ 297mm)
Take up bobbin features
Flange: MAX800mm MIN500mm
Over width: MAX600mm MIN300mm
Traverse width: MAX500mm MIN250mm
Barrel: MIN200mm
Bobbin weiqht withwounstand: 1150*max kg.
Spooling tension: 20-50N/mm2
Of pulleys on spindles: 139mm
Capstan: 160mm
Max. Capstan pull (at max. Speed): 880N
Emergency stop: 5-6s(from max. Speed)
Nose level: 82dba
Company Profile
Jiangsu Handing Machinery Co., Ltd. Is a private enterprise which was established in May 2002 (abbreviationHD), meanwhile, it was founded with the spreading of reform and opening up of China. It was an unknown enterprise locating in Nanxiashu Town Changzhou City Jiangsu Province in the earlier time and owned dozens of employees, however, it has become famous with the deepening insight of the enterprise and by absorbing excellent talents in different fields. Meanwhile, it is an enterprise that develops to be competent for independent research and innovation, offers new type of machines featuring with high productivity and efficiency and durability for the international wire, cable, special cable and data cable manufacturing industry and gradually keep touch with the globally well-known enterprises in the industry of manufacturing wire, cable, special cable and data cable.
Jiangsu Handing Machinery Co., Ltd. is a private enterprise which was established in May 2002 (abbreviationHD), meanwhile, it was founded with the spreading of reform and opening up of China. It was an unknown enterprise locating in Nanxiashu Town Changzhou City Jiangsu Province in the earlier time and owned dozens of employees, however, it has become famous with the deepening insight of the enterprise and by absorbing excellent talents in different fields. Meanwhile, it is an enterprise that develops to be competent for independent research and innovation, offers new type of machines featuring with high productivity and efficiency and durability for the international wire, cable, special cable and data cable manufacturing industry and gradually keep touch with the globally well-known enterprises in the industry of manufacturing wire, cable, special cable and data cable.
