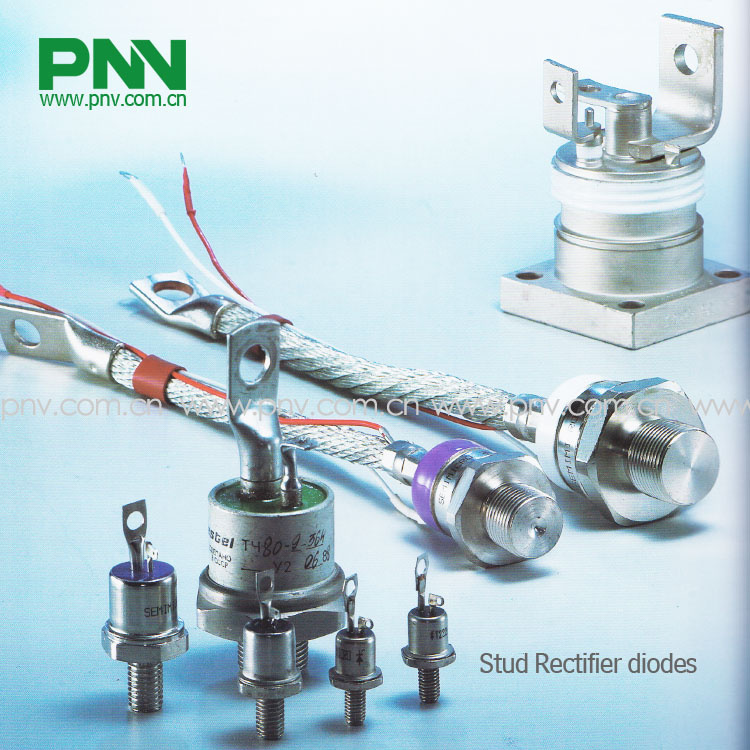

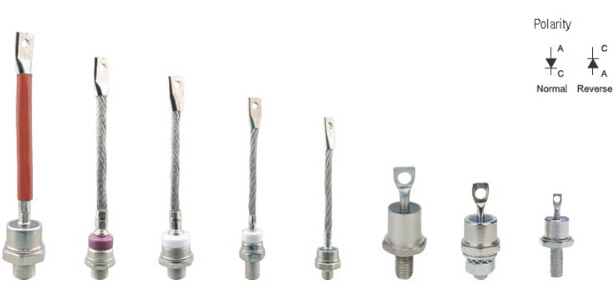

Stud Type Russian Avalanche Rectifier Diode

Name: Stud Type Russian Avalanche Rectifier Diode
Brand: China-Manufacturer-Directory.com
SKU: 744196155
Availability: InStock
Rating: 4.3 (42 reviews)

Supplier:	WENZHOU PNV TRADING CO., LTD.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	DA212-10 DA222-32X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Silver
Diode:	Rectifier Diode
Supply Voltage:	Standard
Condition:	100%&Original
Outline:	Stud Version
Manufacturing Technology:	Analog IC
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	SMD
Application:	Battery Charges/Converters/Machine Tool Controls

Product Description

Features:
Hermetic metal-glass and metal-ceramic cases of press pack stud design
Guaranteed maximal power dissipation in avalanche breakdown mode
Operation voltage up to 6000V
Applications:
Uncontrollable and half-controlled rectifier bridges
High power drives for industry and transport
Power suppliers for traction

Type	V RRM	IF(AV)	IFSM	V TO	rT	PRSM	R th(j-c)	TVJM	Md	Case
	V	A	kA	V	mΩ	kW	ºC/W	ºC	Nm/kN
DA212-10	400-1600	10(120)	0.25	1.03	16.2	2.5	2.7	160	0.9-1.1	SD1
DA212-10X	400-1600	109120)	0.25	1.03	16.2	2.5	2.7	160	0.9-1.1	SD1
DA212-16	400-1600	169120)	0.27	0.93	9.15	2.5	1.9	160	0.9-1.1	SD1
DA212-16X	400-1600	169120)	0.27	0.93	9.15	2.5	1.9	160	0.9-1.1	SD1
DA212-25	400-1600	25(120)	0.34	0.93	7.35	2.5	1.25	160	0.9-1.1	SD1
DA212-25X	400-1600	25(120)	0.34	0.93	7.35	2.5	1.25	160	0.9-1.1	SD1
DA222-32	400-1600	329120)	0.46	0.91	5.83	3	0.9	160	1.4-1.8	SD2
DA222-32X	400-1600	329120)	0.46	0.91	5.83	3	0.9	160	1.4-1.8	SD2
DA222-40	400-1600	40(120)	0.55	0.82	4.38	3	0.8	160	1.4-1.8	SD2
DA222-40X	400-1600	40(120)	0.55	0.82	4.38	3	0.8	160	1.4-1.8	SD2
DA232-50	400-1600	50(120)	1.2	0.97	2.86	5	0.6	160	5.0-6.2	SD3
DA232-50X	400-1600	50(120)	1.2	0.97	2.86	5	0.6	160	5.0-6.2	SD3
DA232-63	400-1600	63(120)	1.3	0.87	2.51	5	0.5	160	5.0-6.2	SD3
DA232-63X	400-1600	63(120)	1.3	0.87	2.51	5	0.5	160	5.0-6.2	SD3
DA232-80	400-1600	80(120)	1.3	0.78	2.12	5	0.4	160	5.0-6.2	SD3
DA232-80X	400-1600	80(120)	1.3	0.78	2.12	5	0.4	160	5.0-6.2	SD3
DA161-200	400-1600	200(115)	7.5	0.97	0.68	16	0.13	150	20-30	SD6
DA171-320	400-1600	320(115)	10	1	0.5	16	0.085	150	20-30	SD7

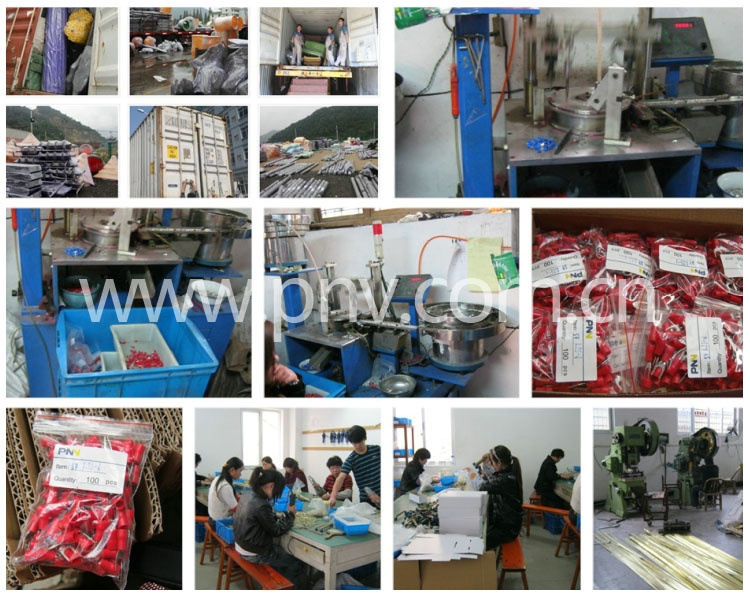

PNV founded in 2008 in Wenzhou of China, provided electrical connection products from the beginning. The company' S first major success products was the electrical terminal block, busbar, plastic injection mould and punch mold.
