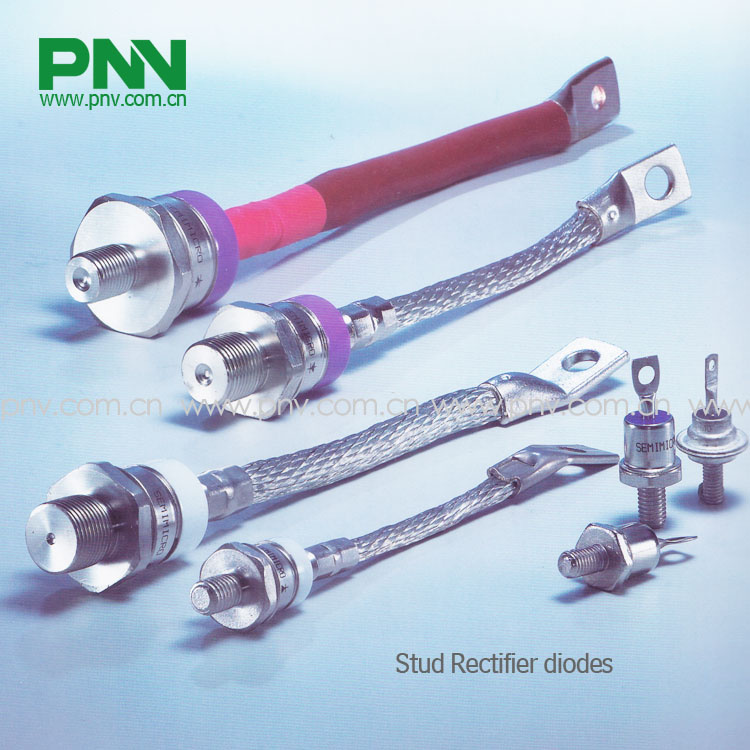

Stud Type Russian Rectifier Diode

Name: Stud Type Russian Rectifier Diode
Brand: China-Manufacturer-Directory.com
SKU: 744195995
Availability: InStock
Rating: 4.8 (136 reviews)

Supplier:	WENZHOU PNV TRADING CO., LTD.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	D212/D222/D1410/D151/D161/D172/D171
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Silver
Diode:	Rectifier Diode
Supply Voltage:	Standard
Condition:	100%&Original
Outline:	Stud Version
Manufacturing Technology:	Analog IC
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	SMD
Application:	Battery Charges/Converters/Machine Tool Controls

Product Description

Features:
Hermetic metal cases with glass and ceramic insulators

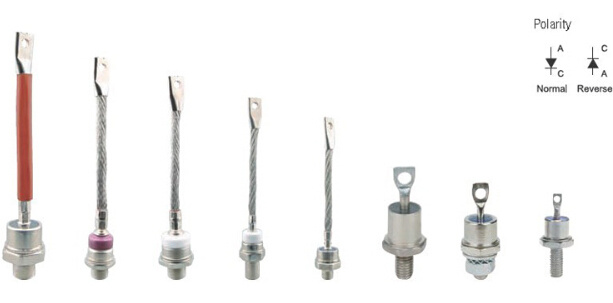

With letter "X" - cathode to stud
Without letter "X" - anode to stud
Reverse voltages up to 1800V

Typical applications:
All-purpose small, mean and high power rectifier diodes
Non-controllable and half-controllable rectifiers
Battery charges
Power supplies
Machine tool controls
Welder Motor controls
Lighting circuits

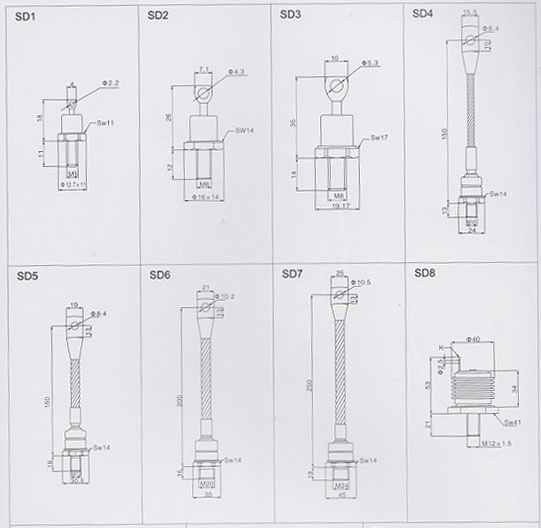

Type	V RRM	I F(AV)	I FSM	V FM/I FM	V TO	r T	T Jmax	R th(j-c)	Md	Case
	V	A	kA	V/A	V	mW	ºC	ºC/W	Nm
D212-10	100-1600	10(150)	0.25	1.35/31	0.94	19.6	190	2.7	0.9-1.1	SD1
D212-10X	100-1600	10(150)	0.25	1.35/31	0.94	19.6	190	2.7	0.9-1.1	SD1
D212-16	100-1600	16(150)	0.27	1.35/50	0.84	11.25	190	1.9	0.9-1.1	SD1
D212-16X	100-1600	16(150)	0.27	1.35/50	0.84	11.25	190	1.9	0.9-1.1	SD1
D212-25	100-1600	25(150)	0.34	1.35/78	0.78	8.15	190	1.25	0.9-1.1	SD1
D212-25X	100-1600	25(150)	0.34	1.35/78	0.78	8.15	190	1.25	0.9-1.1	SD1
D212-32	100-1600	32(150)	0.46	1.35/100	0.86	6.5	190	0.9	1.4-1.8	SD2
D212-32X	100-1600	32(150)	0.46	1.35/100	0.86	6.5	190	0.9	1.4-1.8	SD2
D222-40	100-1600	40(150)	0.55	1.35/125	0.8	4.62	190	0.8	1.4-1.8	SD2
D222-40X	100-1600	40(150)	0.55	1.35/125	0.8	4.62	190	0.8	1.4-1.8	SD2
D232-50	100-1600	50(150)	1.2	1.35/157	0.92	2.74	190	0.6	5.3-5.7	SD3
D232-50X	100-1600	50(150)	1.2	1.35/157	0.92	2.74	190	0.6	5.3-5.7	SD3
D232-63	100-1600	63(150)	1.3	1.35/198	0.82	2.85	190	0.5	5.3-5.7	SD3
D232-63X	100-1600	63(150)	1.3	1.35/198	0.82	2.85	190	0.5	5.3-5.7	SD3
D232-80	100-1600	80(150)	1.3	1.35/250	0.76	2.36	190	0.4	5.3-5.7	SD3
D232-80X	100-1600	80(150)	1.3	1.35/250	0.76	2.36	190	0.4	5.3-5.7	SD3
D141-100	300-1600	100(135)	2.2	1.35/314	0.95	1.6	190	0.4	6-10	SD4
D141-100X	300-1600	100(135)	2	1.45/314	0.95	1.6	190	0.4	6-10	SD4
D151-125	300-1600	125(140)	3	1.35/392	0.9	1.3	190	0.3	10-20	SD5
D151-160	300-1600	160(140)	4.5	1.35/502	0.9	1	190	0.24	10-20	SD5
D161-200	300-1600	200(145)	5.5	1.35/628	0.9	0.85	190	0.15	20-30	SD6
D161-200X	300-1600	200(125)	5.5	1.35/628	0.9	0.85	190	0.15	20-30	SD6
D161-250	300-1600	250(140)	6.4	1.35/785	0.9	0.64	190	0.15	20-30	SD6
D161-250X	300-1600	250(140)	6.4	1.45/785	0.9	0.77	190	0.14	20-30	SD6
D161-320	300-1600	320(130)	7.5	1.35/1005	0.9	0.5	190	0.15	20-30	SD6
D161-320X	300-1600	320(130)	7.5	1.5/1005	0.9	0.65	190	0.13	20-30	SD6
D161-400	300-1600	400(124)	8.25	1.4/1256	0.9	0.35	190	0.13	20-30	SD6
D172-40	5000-6000	40(85)	0.25	1.55/125	1.01	5.7	125	0.45	10-20	SD8
D271-250	2600-300	310(104)	4.5	1.6/785	0.9	1.4	160	0.09	25-30	SD7
D171-400	300-1800	400(145)	14	1.45/1256	0.9	0.56	190	0.09	25-35	SD7
