Product Specifications
| Prod Model: |
EL-55/EL-55C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shipment: |
DHL, UPS, FedEx.. |
| Service: |
OEM&ODM |
| Delivery: |
Fast |
| Color: |
Like The Picture Show |
| Type: |
Sensor |
| Installation Mode: |
Contact Type |
| Certification: |
CE |
| Application: |
Special Equipment |
| Usage: |
PIR Sensor |
Product Description
Introduction

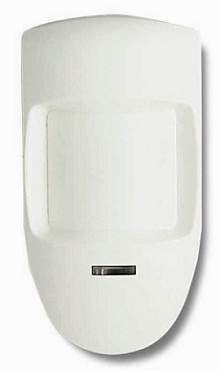

With an aesthetic curvilinear design, the Orion series of detectors offers excellent detection with advanced features. Available with an adjustable built-in microphone for alarm verification, superior RFI, EMI, ESD and lightning protection, adaptive temperature compensation as well as standard, curtain and long range lens options.
EL-55 Maximum Range: 14m x 14m
EL-55C Maximum Range: 1m x 14m
Analog signal processing
PIR detector
Temperature compensation
Dual element
Superior RFI, EMI, ESD and lightning protection
Thermal optic stabilization cavity
Technology: PIR technology
Pyroelectric Sensor Type: Dual element
Current Consumption in Standby: 15mA @ 12V
Current Consumption in Alarm: 17mA @ 16V
Power Supply: 9-16VDC
Pulse Count: 1, 2 or 3 selectable
RFI Immunity: 30V/m up to 1GHz
Operating Temperature: -10° To 60° C
Temperature compensation: Analog
Reverse Polarity Protection: Diode
LED indicator: Selectable
Dimensions: 11.4x 6 x 5cm
MB2 Support: Yes
LENS options: Standard/ Curtain/ Long range
Relay Parameters: N. C Dry contacts Switching 30Vdc, 0.1A max
SHENZHEN TAIAN ELECTRONICS Co., Ltd., is an Exporter and Wholesaler for Security Products in China. Our company specializes in PIR sensor, motion, outdoor sensors, sirens, alarm panels, GSM series and smokes for home safety and intruder Security alarm systems. Our products are suitable for use in Control center (report to Police), Garden, Bank, and all of the Commercial, Industrial and Civil buildings. For more information, see our products section. Welcome to view our website to know more about us. TAIAN is always looking for friendly cooperation with customers all over the world. We can be your best supplier with wide range of Security Products. Welcome to contact us for OEM & ODM service!
