Zhejiang People High Voltage Electrical Ceramics Co., Ltd. >> Surge Protective Device (BYD-B)

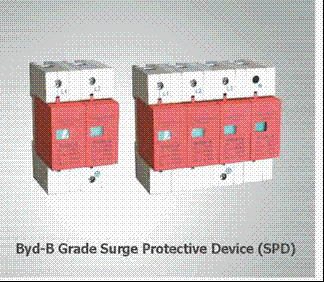

Surge Protective Device (BYD-B)

Surge Protective Device (BYD-B)
Supplier: Zhejiang People High Voltage Electrical Ceramics Co., Ltd.
Price: Negotiable
Min Order: 1
Quantity::
Trade Terms: by sea
contact supplier

Product Specifications

Prod Model: BYD-B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Surge Protective device adopts a splendiferous & non -linear characteristic sensitvity resistance, under normal condition, surge arrester is under skyscraping resisitance condition, without any leaking, assuring power system under normal power supply. When the power system have above over voltage, the surge arrester will conduct within a few minutes limit the value of over voltage under normal and safe range. Meanwhile release the over-voltage, then the arrester will become high-resistance condition quickly, such will not interfere thenormal power supplying of the power system.
                                                                                      Type BYD30-220/2
BYD30-380/4		 BYD50-220/2
BYD50-380/4		 BYD60-220/2
BYD60-380/4		 BYD100-220/2
BYD100-380/4
Rated working voltage Un(V~)
 		   220/380   220/380   220/380   220/380
Continuous operating voltage Un(V~)
 		   385/420   385/420   385/420   385/420
Protection level Un(V~)
 		   ≤ 1550   ≤ 1600   ≤ 2.0   ≤ 2.2
Standard discharge current (8/20μ )In(KA)   30 50    60 100
Max current capacity max (8/20μ S )In(KA)   60   100   120   150
Response time(nS)                                                                                                                                                                                                               25
Working environment                                                                                             -40~+85
Relative humidity                                                                                               95%(25º C)
Connection lead cut-area (mm² )
 		   ≥ 25                                                   ≥ 35
Groud wire cut-area (mm² )
 		   ≥ 35                                                   ≥ 35

Zhejiang People High Voltage Electrical Ceramics Co., Ltd., founded in 1997, is one of the leading manufacturer specializing in High Voltage Electrical Appliances such as Metal Oxide Lightning Arrester, Falling Type Fuses, Disconnector Switch, Insulator and so on. Our products are sold well on our domestic market and broad, and we have been enjoying high reputation for the high quality and excellent after-sale servicen. Meanwhile, Our products are for the main products that are recommended by Our National Economy & Trade Committee and National Electricity Authority to be used in our National Electricity System.
