Product Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material Of Box Shell: |
Steel |
Way Of Installation: |
Wall Mounted |
Protection Mode: |
L-N-PE(3+1) |
Lightning Protection Class: |
B+C Class |
Rated Voltage: |
380V AC |
In(8/20us): |
40ka, 50ka, 80ka |
Imax(8/20us): |
80ka, 100ka, 160ka |
Up(8/20us): |
<1.0kv |
Remot Alert Circuit: |
Available |
Protection Standard: |
Iec61643-1 |
Product Description
Surge Protective device SPD TVSS
1. Experience: 21 years 10, 000 cases
2. CE Approved
Applicable Scope
Power in input terminal of UPS/Voltage Regulator for Computer Room, Communication Room, Monitoring Room, Control Room, etc.
Places need tow grades lightning protection
Power input terminal of equipment cabinet or other equipments need protection
Lightning protection for the electrical power of unmanned (automatic) base station
Lightning protection for the electrical distribution cabinet
Character
Power SPD with tow ports
B+C grades linked function
SPD dedicated for the electric power of machine room
Thunder strike counter
Lightning protection indicator
Low residual Voltage
Function:

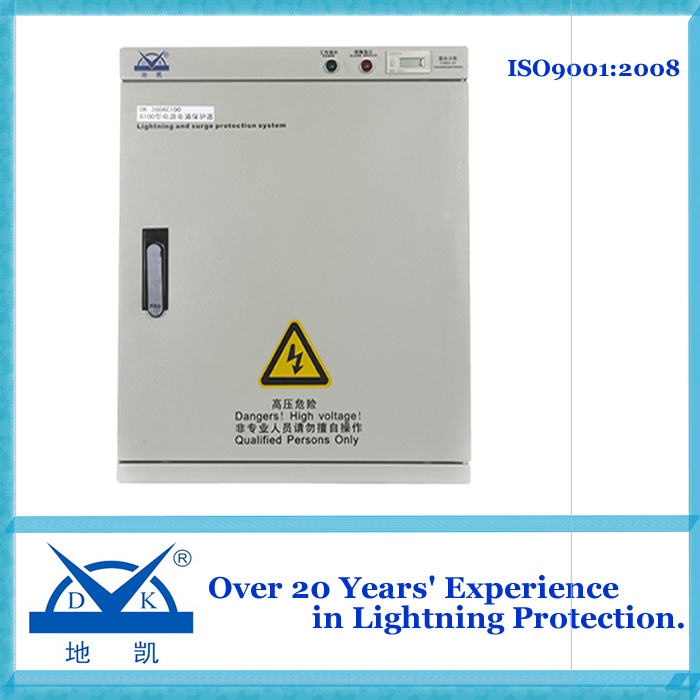

TVSS box-type SPD surge protective device, surge protector Imax 80kA~160kA with tow ports and thunder strike counter is designed according to the IEC standard. It is combined with Working Indicator, Malfunction Indicator and Thunder Strike Indicator etc.
SPD with tow ports can realize tow grades lightning protection. It take advantage of low residual Voltage, easy installation. It can be used for 380V electrical distribution system and other places require stable electrical load, low limiting currents or require tow grades lightning protection. It can be installed in the Power Input Terminal of UPS in computer room, monitoring room, control room, equipment cabinet as the lightning protection.
8/20 us Maximum Discharging Currents Imax can be 80-150kA/line, working currents is 63A.
Supply Capacity:
We can produce 3000PCS TVSS box-type SPD surge protective device, surge protector Imax 80kA~160kA with high quality per month.
Packing:
TVSS box-type SPD surge protective device, surge protector Imax 80kA~160kA Usually be packed by carton box package. Also can be packed according to customer's requirement.
Guangxi Dikai Sci & Tech Co., Ltd. Was established in June 1989, which specializes in the development and production of lightning protective products, and the research and service of lightning protective technology. It has been a top lightning protection company in China after more than 20 years of development. The company now has a top-ranking lightning protection test center, a lightning proving ground, an intellectualized building for scientific research. The products of the company have won more than 10 national patents and possess ISO 9001: 2000 certificate and CE certificate.
