Company profiles
Yueqing mingchuan electric co.,ltd is a professional manufacturer in power source products such as voltage regulators/stabilizers, UPS, inverters,transformers and so on...fifteen years has passed by, our company has developed as a producer, designer and exporter of power source products
These stabilizers had export to: Southeast Asia,Russia, Africa, Middle East, Europe,etc.
Our company welcome your orders on these products.
introductions of product

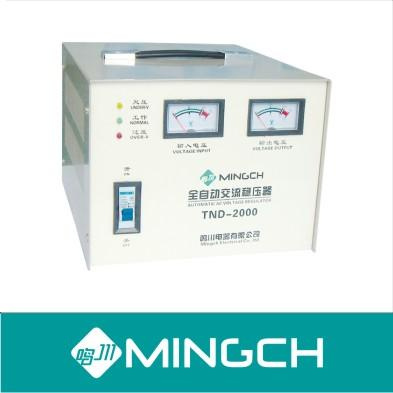

TND(SVC) fully automatic voltage regulator consist of a contact voltage regulator,servo electromotor and auto-control circuit as well,auto-sampling circiut sending out signal so that to run servo eletromotor,and to adjust the position of carbon brush,It will ensure output voltage steady operations.
?
usage situations
Widely used in most situations where the voltage stabilization is required
?
specifications
1)Input voltage:130V-250V
2)Output voltage:220V±3%,110V±3%
3)Frequency:50HZ/60HZ
4)Response time:<1S (against 10% input voltage deviation)?
5)Efficiency:>90%
6)Ambient temperature:-10centigrates ~+40centigrates
7)Relative humidity:?<90%
8) Waveform distortion:Non-lack fidelity waveform
9)Power factor cosf:0.8
10)Insulation resistance:>5MΩ
?
15years experience, custom-made is also accepted
?
Model |
Outline(cm) |
Weight(kg) |
Qty/package |
(L) |
W |
H |
TND-0.5 |
18.5 |
15 |
12.5 |
4.6 |
4 |
TND-1 |
21 |
18 |
14.5 |
6.5 |
4 |
TND-1.5K |
21 |
18 |
14.5 |
7 |
4 |
TND-2K |
27.5 |
23.5 |
18.5 |
10.5 |
1 |
TND-3K |
29 |
23 |
22 |
13.6 |
1 |
TND-5 (Table) |
35 |
23 |
28 |
22.4 |
1 |
TND-7K (Table) |
35 |
23 |
28 |
30 |
1 |
TND-10K (Table) |
47 |
26 |
22 |
43 |
1 |
