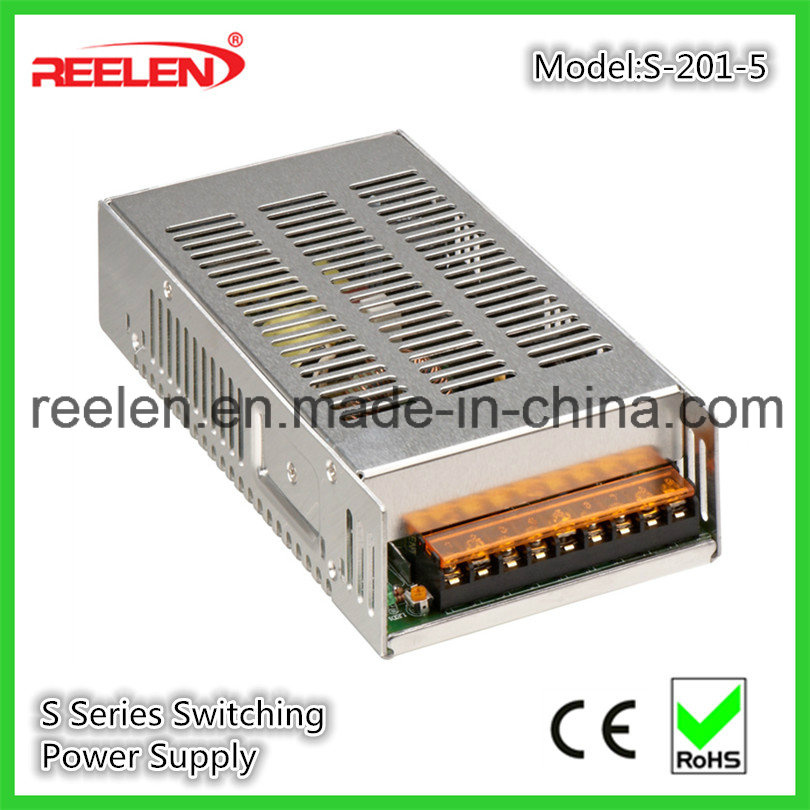

Switching Power Supply S-201 Single Output

Name: Switching Power Supply S-201 Single Output
Brand: china-manufacturer-directory.com
SKU: 751153355
Availability: InStock
Rating: 4.5 (70 reviews)

Supplier:	Wenzhou Reelen Import And Export Co., Ltd.
Price:	Negotiable/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S-201-5, 12, 15, 24, 48
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	201 - 300W
Input Voltage:	Full Range
Voltage Regulating Mode:	Width Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS
Brand:	Reelen

Product Description

1. Features:
1. Low price and high reliability
2. AC input range selected by Switch
3. Protections:Short circuit/Over load/Over voltage
4. High efficiency and Long life
5. Soft-start current can reduce the AC input impact effectively
6. Cooling by free air convection
7. Compact size, light weight
8. 100% full-load burn-in test
9. Installed with EMI filter, minimum wave
10. Low output ripple and noise
11. CE.ROHS approval
12. 2 years warranty

2.Specifications

MODEL		S-201-5	S-201-12	S-201-24	S-201-48
OUTPUT	DC VOLTAGE	5V	12V	24V	48V
	CURRENT RANGE	0 ~ 40A	0 ~ 16.5A	0 ~ 8.3A	0 ~ 4.2A
	RATED CURRENT	40A	16.5A	8.3A	4.2A
	RATED POWER	201W	198W	199.2W	201.6W
	RIPPLE & NOISE (max.) Note.2	150mVp-p	150mVp-p	150mVp-p	240mVp-p
	VOLTAGE ADJ. RANGE	4.5 ~ 5.5V	10.8 ~ 13.2V	21.6 ~ 26.4V	43.2 ~ 52.8V
	VOLTAGE TOLERANCE NOTE.3	±2.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±0.5%	±0.5%	±0.5%
	SETUP, RISE TIME NOTE.5	200ms, 100ms, 20ms at full load
INPUT	VOLTAGE RANGE	90 ~ 132VAC / 170 ~ 264VAC selected by switch 240 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	78%	83%	84%	86%
	AC CURRENT (Typ.)	4.5A/115VAC 2.5A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 35A
	LEAKAGE CURRENT	<3.5mA / 240VAC
PROTECTION	OVER LOAD	105% ~ 150% rated output power
		Protection type : Fold back current limiting, recovers automatically after fault condition is removed.
	OVER VOLTAGE	115% ~ 135%
		5.75 ~ 6.75V 13.8 ~ 16.2V 27.6 ~ 32.4V 55.2 ~ 64.81V
ENVIRONMENT	WORKING TEMP.	-10ºC ~ +60ºC(Refer to output load derating curve)
	WORKING HUMIDITY	20% ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20ºC ~ +85ºC , 10% ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/ºC(0 ~ 50ºC )
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC(Note 4)	SAFETY STANDARDS	Design refer to UL1950
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTION & RADIATION	Design refer to FCC Part15 J Conduction Class A
OTHERS	MTBF	271.9K hrs min. MIL-HDBK-217F (25ºC)

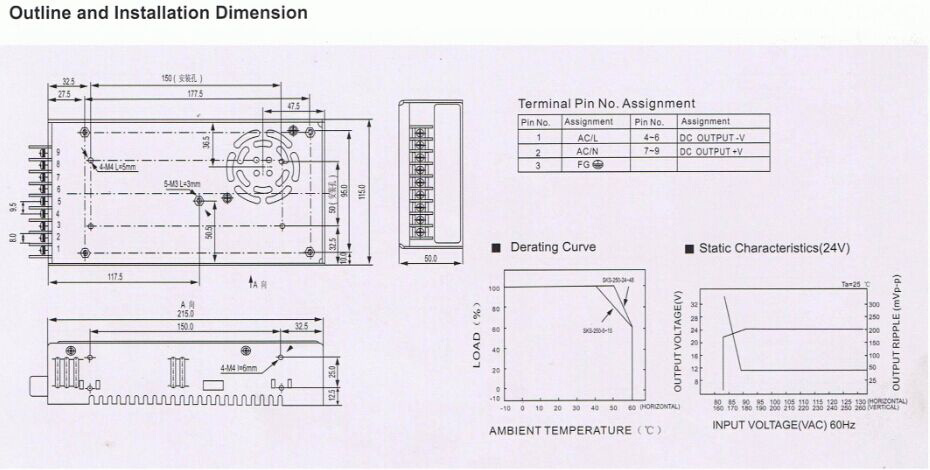

	DIMENSION	21511550mm (LWH)
	PACKING	0.93Kg; 12pcs/12Kg/0.92CUFT
NOTE	1.The testing condition for the parameter above is:230VAC input, rated load,25°C 70%Rh,Humidity 2.Error,include the setting error, line stability and load stability.(Note,5) 3.Wave test:adopting"A12"double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting. 4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
