Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 50/Piece |
Pay Type: | L/C,T/T,Money Gram,Western Union |
MODEL | S-350-5 | S-350-12 | S-350-24 | S-350-48 | |
OUTPUT | DC VOLTAGE | 5V | 12V | 24V | 48V |
CURRENT RANGE | 0 ~ 50A | 0 ~ 29A | 0 ~ 14.6A | 0 ~ 7.3A | |
RATED CURRENT | 50A | 29A | 14.6A | 7.3A | |
RATED POWER | 350W | 348W | 350.4W | 350.4W | |
RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 150mVp-p | 240mVp-p | |
VOLTAGE ADJ. RANGE | 4.5 ~ 5.5V | 10.8 ~ 13.2V | 21.6 ~ 26.4V | 43.2 ~ 52.8V | |
VOLTAGE TOLERANCE NOTE.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
SETUP, RISE TIME NOTE.5 | 200ms, 100ms, 20ms at full load | ||||
INPUT | VOLTAGE RANGE | 90 ~ 132VAC / 170 ~ 264VAC selected by switch 254 ~ 370VDC | |||
FREQUENCY RANGE | 47 ~ 63Hz | ||||
EFFICIENCY (Typ.) | 79% | 82% | 83% | 84% | |
AC CURRENT (Typ.) | 6.5A/115VAC 4A/230VAC | ||||
INRUSH CURRENT (Typ.) | COLD START 25A/115V 50A/230V | ||||
LEAKAGE CURRENT | <3.5mA / 240VAC | ||||
PROTECTION | OVER LOAD | 105% ~ 150% rated output power | |||
Protection type : Fold back current limiting, recovers automatically after fault condition is removed. | |||||
OVER VOLTAGE | 115% ~ 135% | ||||
5.75 ~ 6.75V 13.8 ~ 16.2V 27.6 ~ 32.4V 55.2 ~ 64.81V | |||||
OVER TEMPERATURE | ERH3>=55ºC Fan on, <=45ºC Fan off, >=70ºC, Cut down output (5 ~ 15V) | ||||
ENVIRONMENT | WORKING TEMP. | -10ºC ~ +60ºC(Refer to output load derating curve) | |||
WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||
STORAGE TEMP., HUMIDITY | -20ºC ~ +85ºC , 10% ~ 95% RH | ||||
TEMP. COEFFICIENT | ±0.03%/ºC(0 ~ 50ºC ) | ||||
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
SAFETY &EMC(Note 4) | SAFETY STANDARDS | Design refer to UL1950 | |||
WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||
EMI CONDUCTION & RADIATION | Design refer to FCC Part15 J Conduction Class A | ||||
OTHERS | MTBF | 234.3K hrs min. MIL-HDBK-217F (25ºC) | |||

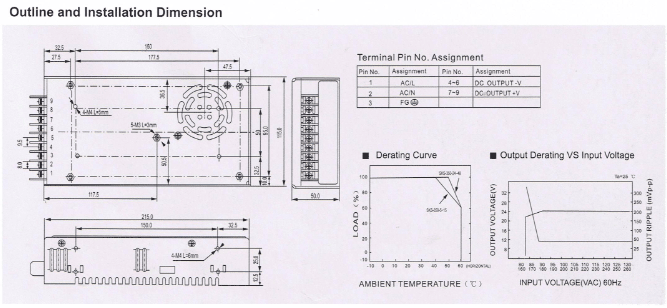

DIMENSION | 215*115*50mm (L*W*H) | ||||
PACKING | 1.07Kg; 12pcs/13.5Kg/0.92CUFT | ||||
NOTE | 1.The testing condition for the parameter above is:230VAC input, rated load,25°C 70%Rh,Humidity 2.Error,include the setting error, line stability and load stability.(Note,5) 3.Wave test:adopting"A12"double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting. 4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage. |

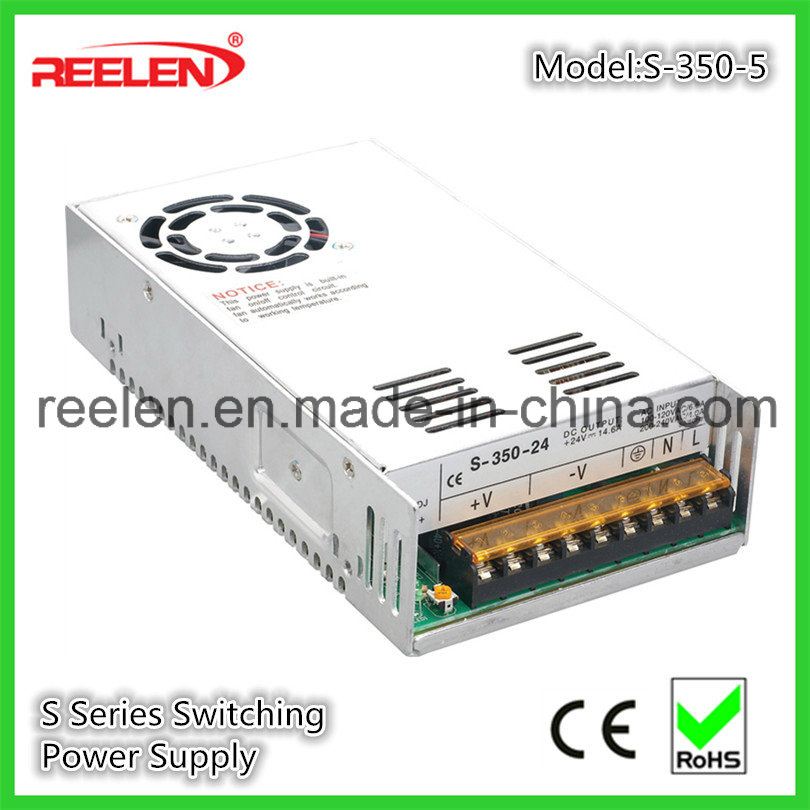

Prod Model: | S-350-5, 12, 15, 24, 48 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: | 350W |
Outline Size: | 215*115*50mm (L*W*H) |
Unit Weight: | 1.07kgs |
Output Type: | Single |
Warranty: | 2 Years |
Output Power: | 301 - 400W |
Input Voltage: | Full Range |
Connection Mode: | Series Switching Power Supply |
Starting Mode: | Self-excited Switching Power Supply |
Voltage Regulating Mode: | Width Modulation Type |
Power Supplying System: | Terminal Power Distribution Equipment |
Certification: | ISO |
Brand: | Reelen |
