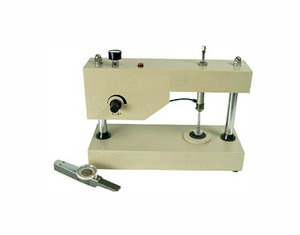

Sy-0754 Cohesion Force Tester
Product Specifications
| Prod Model: |
SY-0754 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| The Diameter Of The Rubber Pad: |
28.6mm |
| The Thickness Of The Rubber Pad: |
6.4mm |
| The Max Pressure: |
1MPa |
| Circular Test Mode: |
Dia 60mm*6mm;Dia 60mm*10mm |
Product Description
Summary The instrument is designed and made as per T 0754-2011 "Cohesive Force Test for Slurry Mixtures" in the Traffic Standard of People's Republic of China JTG E20-2011 "Highway Engineering Bitumen and Bituminous Mixtures Test Code" .It is used to confirm the initial setting time and opening time of slurry mixtures . I.Main technical characteristics1.The instrument adopts desktop structure .Novel design ,reasonable structure and convenient to use .2.The structure design of the instrument ,the specification size of the test apparatus ,act ,each meets the requirement of T 0754-2011 standard .3.The instrument is convenient to carry .And it can be used both in lab and on site ,and it widely used in the construction organizations ,scientific research institutes to analysis and confirm the emulsified asphalt and aggregate bond degree . II.Main technical parameters and specifications1.The diameter of the rubber pad :Φ28.6mm2.The thickness of the rubber pad :6.4mm3.The hardness of the rubber pad :HRC604.The max pressure :1Mpa 5.Circular test mode :Φ 60mm*6mm;Φ60mm*10mm6.Torque spanner :(0-5)N？m7.Power supply :AC 220V+10%;50Hz III.Choice of the accessories 1.Balance :weigh 500g ,reciprocal sensibility is less than 0.1g2.Bake oven :with forced draft ,the temperature can be controlled in (60+3)ºC3.Air compressor :AU1511 compressor (recommend)
SAMYON commit us supply professional line instruments and service to our clients refers to Building, Bridge, Highway, Channel, Airport and so on.
Our service and equipment include:
1. Geophysical exploration Consultation and relative instruments such as: IP& Resistivity systems, Fluxgate Magnetometer, Optical pump Magnetometer, Proton Magnetometer, TEM, EM system, Seismograph, Logging system, etc.
2. Construction lab and NDT instruments: Ultrasonic Cross-Hole Pile Tester, Integrity Pile tester, Rebar Locator, Concrete Chloride Migration Tester( RCM), ect.
3. We are also distributor of Petroleum equipment and accessories, to supply our clients inquiry.
With our engineer and professional technology team, we hope we can cooperate with you in future. Relative consultation service, mainly refers to Building, Bridge, Highway and lab. Relative consultation service, mainly refers to Building, Bridge, Highway and lab.
