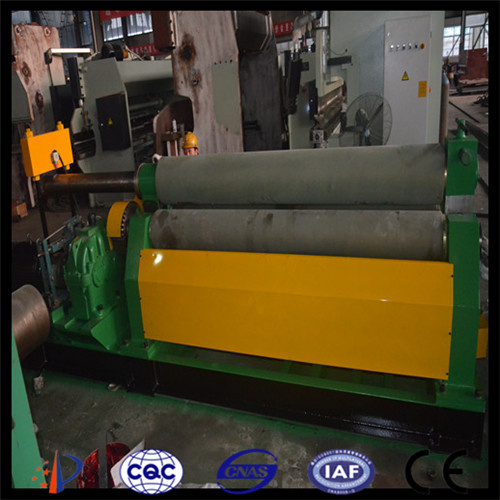

Symmetrical 3 Rolls Sheet Bending Machine with CNC

Name: Symmetrical 3 Rolls Sheet Bending Machine with CNC
Brand: china-manufacturer-directory.com
SKU: 725188875
Availability: InStock
Rating: 4.4 (73 reviews)

Supplier:	Jiangsu Yiji Mechanical Technology Co., Ltd.
Price:	US $ 35000-40000/Piece
Min Order:	1SET
Quantity::
Trade Terms:	FOB,CIF,DAP

Product Specifications

Prod Model:	W11 SERIES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: On Request:	Min Order:1set
Automation:	Automatic
Type For Cutting Machine:	CNC Cutting Machine
Type For Fold-bending Machine:	CNC Fold-bend Machine
Application:	Medical
Type:	Pipe and Tube Bending Machine

Product Description

Specifications
Mechanical symmetrical plate rolling machine
1. High precision, Wide application
2. ISO9001: 2008
3. High performance.
4. Hardened rollers HRC50-52
1. The machine adopts 3-roller asymmetrical structure with the upper roller as the main drive
And the lower roller making vertical movement so as to clamp the plate materials tight. The
Machine drive comes from the engagement between the gear of the lower roller and the
Gear of the upper roller.

2. The machine is the most precise 3-roll machine in its category. The RGS design reduces
To a minimum the distance between the bending points guaranteeing higher bending accuracy.

3. The Ultra wide roll support with lubrication circuit is mounted within linear slides to prevent wear and tear.

4. The very high rotation power is a guarantee of the Machine superior rolling torque and speed, available
Without loss of energy as all three rolls are driven independently by Gear and gearboxes directly coupled
To the rolls shafts.

Specification	Max Thickness of coiled plate (mm)	Max width of coiled plate (mm)	Yielding limit of sheet metal(mpa)	Coiling speed(m/min)	Min full loading dismeterof coiled plate(mm)	Diameter of top shaft(mm)	Diameter of bottom shaft(mm)	Central distance between bottom shaft(mm)	Motor power(kw)
W11-3×3100	3	3150	245	4.5	450	180	140	220	4
W11-3×2000	3	2000	245	4	350	165	140	160	4
W11-4×3100	4	3100	245	4.5	450	180	160	220	5.5
W11-4×1500	4	1500	245	5	400	180	160	200	4
W11-4×2000	4	2000	245	4	450	160	140	220	4
W11-4×2500	4	2500	245	4.5	450	180	150	220	4
W11-4×4000	4	4000	245	4	600	260	180	259	5.5
W11-6×1500	6	1500	245	5	450	185	170	220	4
W11-6×2000	6	2000	245	4	400	190	170	250	5.5
W11-6×2500	6	2500	245	4.5	500	220	170	280	5.5
W11-6×3000	6	3000	245	4	600	240	220	280	7.5
W11-6×3200	6	3200	245	4	600	240	220	280	7.5
W11-6×4000	6	4000	245	4	600	250	190	259	7.5
W11-3×3200	3	3200	245	4.5	450	185	170	250	5.5
W11-12×2000	12	2000	245	4	600	240	180	280	7.5
W11-8×1000	8	1000	245	4	250	150	135	220	4
W11-8×2000	8	2000	245	4	500	200	170	260	5.5
W11-8×2500	8	2500	245	4	600	240	180	280	7.5
W11-8×3000	8	3000	245	4	400	250	200	280	7.5
W11-8×3100	8	3100	245	4	400	250	200	280	7.5
W11-8×3200	8	3200	245	4	400	260	200	280	7.5
W11-8×5000	8	5000	245	4	500	320	240	360	11
W11-10×1500	10	1500	245	4	550	185	170	260	5.5
W11-10×2000	10	2000	245	4	550	220	180	280	7.5
W11-10×3000	10	3000	245	4	500	260	240	360	11
W11-10×3200	10	3200	245	4	800	280	240	359	11
W11-10×4000	10	4000	245	4	800	340	260	430	15
W11-12×1500	12	1500	245	4	600	220	200	280	7.5
W11-12×2000	12	2000	245	4	600	240	180	280	7.5
W11-12×2500	12	2500	245	4	600	260	220	320	7.5
W11-12×3000	12	3000	245	4	700	280	250	360	11
W11-12×3200	12	3200	245	4	700	280	250	360	11
W11-12×4000	12	4000	245	4	1000	400	300	430	15
W11-12×6000	12	6000	245	4	1250	510	260	500	37
W11-14×3000	14	3000	245	4	700	280	250	359	11
W11-16×1500	16	1500	245	4	700	260	220	320	7.5
W11-16×2000	16	2000	245	4	700	260	220	320	11
W11-16×2500	16	2500	245	4	700	280	240	359	11
W11-16×3000	16	3000	245	4	800	340	260	440	15
W11-16×3200	16	3200	245	4	800	340	280	440	15
W11-16×4000	16	4000	245	4	1000	410	360	480	30
W11-20×2000	20	2000	245	4	700	280	240	360	15
W11-20×2500	20	2500	245	4	850	330	260	440	15
W11-20×3000	20	3000	245	4	900	360	280	480	22
W11-20×4000	20	4000	245	4	1050	430	370	520	30
W11-25×2000	25	2000	245	4	900	330	260	440	15
W11-25×2500	25	2500	245	4	1200	360	280	480	22
W11-25×3000	25	3000	245	4	1200	420	350	550	22
W11-30×2500	30	2500	245	4	1200	420	360	550	30
W11-30×3000	30	3000	245	4	1200	450	390	600	30

Our company is specialized in producing series of industrial sweeper machine, shearing machine, bending machine, rolling machine and plate unrolling leveling shearing production line of "Juli" brand. The products are widely applied to light industry, aviation industry, marine industry, metallurgy, instrument industry, electrical equipment, stainless steel product, construction and decoration industry, etc. The products are exported to Europe, Southeast Asia, the Middle East, etc.

Our company has several top-class experts with professional knowledge in cutting, bending, rolling and plate unrolling leveling shearing production line. The quality and technology are ranked as the first class in this field. Our company is constantly developing the leading-edge products with advanced consciousness, new concept, innovation and the overseas technology, which will lay the solid foundation for "Juli" to be a famous brand in the world in machine tool industry. All the staff members are devoted themselves to serving the company with meticulous professional dedication and solidarity. We are sincerely looking forward to cooperating with friends all over the world to create greater success.

Welcome you to visit at any time.
