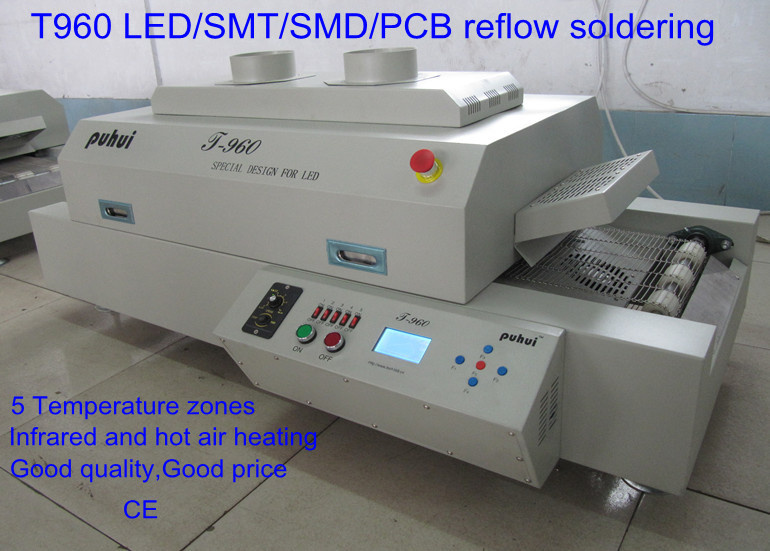

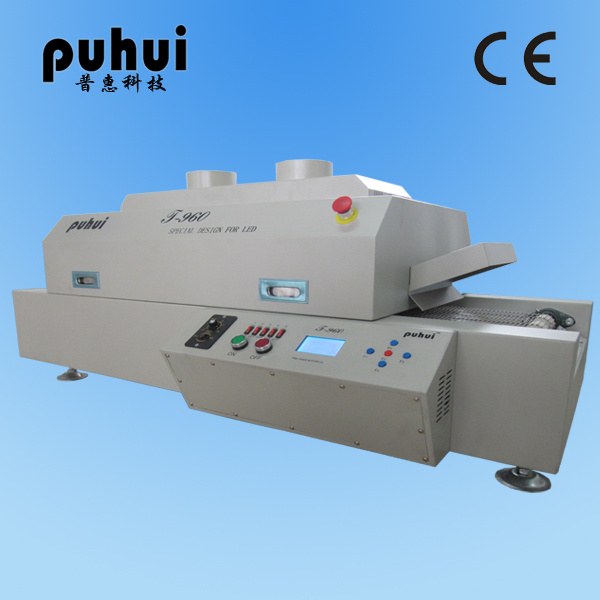

T-960 Infrared Reflow Oven, SMD LED Reflow Soldering Machine T-960, Mini Wave Solder Oven, Taian Puhui China Manufacturer
Product Specifications
| Prod Model: |
T-960 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
Product Description
T-960 Infrared Reflow Oven, SMD LED Reflow Soldering Machine T-960, mini wave solder oven, taian puhui china manufacturer
Technical parameters
The heating zone quantity - upper3/down2
The length of the heating zone - 960mm
The heating type - Infrared and hot air
The cooling zone quantity - 1
Maximum width of PCB board - 300mm
The operation direction - From left to right
Transmission type - Net transmission+chain transmission
The speed of conveyer belt - 0-1600mm/min
The voltage - 380V/220V
Power - 4500w
Heating up time - Around 15mins
Temperature control range - Room temperature~300
Temperature control mode - PID
Temperature control accuracy - ± 1
PCB temperature distribution balance - ± 2
Overall dimensions - 1450× 630× 470
Machine weight - 90KGS
1. Infrared and hot air heating technology, special design wind wheel, speed stability, temperature evenness, suit for uninterrupted soldering the LED and BGA components.
2. This machine is with the crawler-type and five temperature zones heating systems, and each temperature zone uses independent PID controlling and up-down heating type, can make the inside temperature more accurate and evenness, just take about 20 minutes from the room temperature to the working temperature.
3. Intelligent temperature wave heating type, eight temperature waves can satisfy various welding technological requirements.
4. Programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave.
5. Thermocouple temperature measurement, compensation circuit, makes the temperature measurement more accurate.
6. PID intelligent temperature control technology, avoid the IC or circuit board damaged due to the rapid or uninterrupted heating up, make the whole welding process more scientific safety.
7. Transmission system adopts imported frequency conversion motor, equip with 1: 150 imported turbine speed reducer, smooth operation, speed adjustable range 0-1600mm/min.
8. Adopt independent wheel structure and special stainless steel strut, durable wear-resisting runs smoothly, speed precision can reach ± 10mm/min.
9. Independent cooling zone, ensure the PCB board cooling down.
10. Easy operate, perfect LCD display, no need to connect with the PC, can see the whole heating process very clearly.
Tai'an Puhui Electric Technology Co., Ltd., is founded in the year 2004. It is located under the Mountain Tai, at the East Development Zone. The traffic is convenient for it is at the inter junction of Beijing to Shanghai Railway and the Freeway of Beijing to Shanghai and Beijing to Fujian, and there is also 104 national highway in Tai' an.
The company product involves high& low pressure electric appliance and its the complete set product, the industry electricity automation control, the frequency conversion, conserves energy the electric appliance, the intelligence electronic products, the electronic tool and so on the multi- classes, multi-disciplinary.
As the joint stock system high tech enterprise, the company has the stronger technical force, the nimble operation mechanism, the science strict management, extremely pay great attention to the product quality and pre-sale, the post-sale service. The company continues to the science and technology. With the purpose of creating the brand by the quality, the prestige. We will do our after sale service wholeheartedly. Welcome everywhere merchants come to discuss the cooperation.
