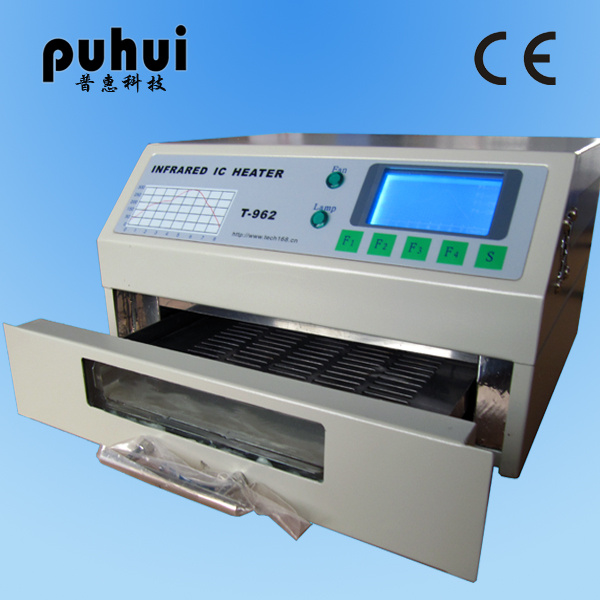

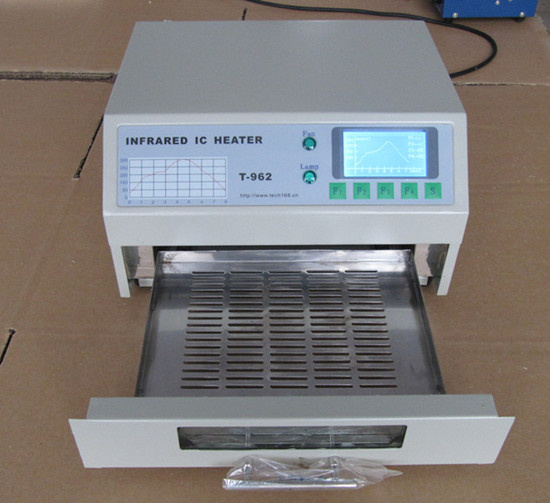

T-962 Desktop Reflow Oven, Benchtop, Infrared IC Heater, IR Solder Station, Mini Wave Machine, Taian Puhui
Product Specifications
| Prod Model: |
T-962 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
Product Description
T-962 Desktop Reflow Oven, benchtop,infrared ic heater, ir solder station,mini wave machine,taian PUHUI
Technical parameters
Soldering area: 180*235mm
Overall dimensions: 31*29*17cm
Packing dimensions: 37.5*24*37.5cm
Power: 800W
Cycle time: 1-8 min
Voltage: AC110V-AC220V /50-60HZ
Net weight: 6.2Kgs
Gross weight: 7.5Kgs
(1) A large infrared soldering area
Soldering area: 180*235mm (T-962), this increases the usage range of this machine drastically and makes it an economical investment.
(2) Choice of different soldering waves
Parameters of eight soldering waves are predefined and the entire soldering process can completed automatically from Preheat, Soak and Reflow through to cool down.
(3) Special heat up and temperature equalization with all designs
Big power of energy efficient Infrared heating and air circulation to re-flow solder.
(4) Ergonomic design, practical and easily operated
Good build quality but at the same time light weight and a small footprint allows the T962 to be easily bench positioned transported or stored.
(5) Large number of available functions
Solder most single or double-sides PCB boards, for example CHIP, SOP, PLCC, QFP, BGA etc. It is the ideal rework solution from single runs to on-demand small batch production.
Warranty
Warranty the main body maintains for one year and the spare parts maintains for three months.
Service provide the immediate network online Q/A and the technical advisory work service
Delivery
Safe packing and fast delivery by air express.
We are the original manufacturer of reflow oven and bga rework station in China,
please feel free to contact us if any questions, thank you and look forward to cooperate with you.
Tai'an Puhui Electric Technology Co., Ltd., is founded in the year 2004. It is located under the Mountain Tai, at the East Development Zone. The traffic is convenient for it is at the inter junction of Beijing to Shanghai Railway and the Freeway of Beijing to Shanghai and Beijing to Fujian, and there is also 104 national highway in Tai' an.
The company product involves high& low pressure electric appliance and its the complete set product, the industry electricity automation control, the frequency conversion, conserves energy the electric appliance, the intelligence electronic products, the electronic tool and so on the multi- classes, multi-disciplinary.
As the joint stock system high tech enterprise, the company has the stronger technical force, the nimble operation mechanism, the science strict management, extremely pay great attention to the product quality and pre-sale, the post-sale service. The company continues to the science and technology. With the purpose of creating the brand by the quality, the prestige. We will do our after sale service wholeheartedly. Welcome everywhere merchants come to discuss the cooperation.
