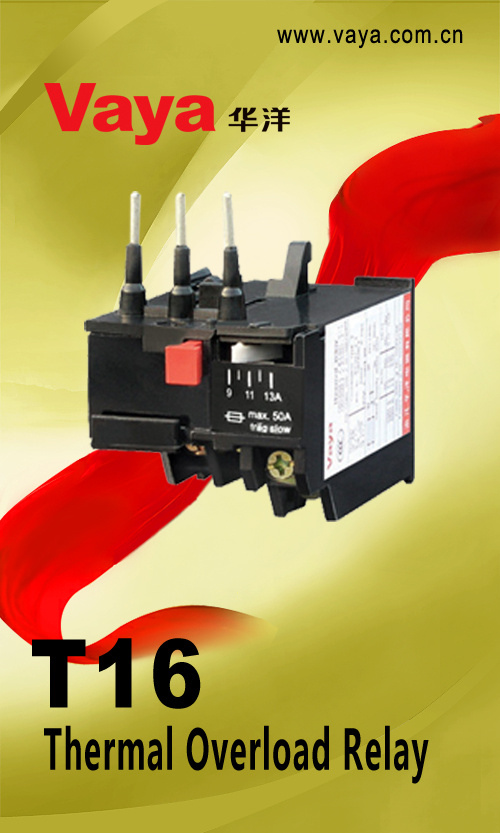

T16 Thermal Overload Relay

Name: T16 Thermal Overload Relay
Brand: china-manufacturer-directory.com
SKU: 705570345
Availability: InStock
Rating: 4.5 (48 reviews)

Supplier:	Zhejiang Huayang Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	T16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia

Product Description

T16 thermal overload relay

Application

T16 thermal overload relay are suitable for overload and phase-failure protection of AC motors with frequency of 50/60Hz, voltage up to 690V, current up to 0.16-500A under 8-hours duty or uninterrupted duty.
Functions provided by these relays, are phase-failure protection, temperature compensation, ON/OFF indication, and manual/automatic reset.
Applicable Standards: National Standard: GB 14048, International Standards: IEC 60947-4-1.
The relays can be mounted onto contactors or installed as single units.

Operating Conditions

The altitude couldn t exceed 2000m.
Ambient temperature: -5 ~+55 degree centigrade and the average temperature no more than +35 degree centigrade in 24 hours.
Atmosphere: Comparative humidity no more than 50% at max +40 degree centigrade, and it may be higher at a lower temperature. The lowest average temperature no more than +20 degree centigrade in the wettest month.
The maximum average comparative humidity of this month could not exceed 90%, The change of temperature leading to dew on the product must be considered.
Class of pollution: Class 3.
The slope between installation surface and vertical surface could not exceed plus and minus 5 degree
Keeping away from explosive, corrosive and electric atomy.
Keeping dry.
The product should be used and installed at certain place without any shock, vibration etc.

Technical Data
Item			T16	T25	T45	T75
Rated operational current			17.6	32	45	100
Rated operational voltage			690	690	690	690
Phase-failure protection			Yes	Yes	Yes	Yes
Manual/Auto reset			Yes	Yes	Yes	Yes
Temperature compensation			Yes	Yes	Yes	Yes
Releasing indicator			Yes	Yes	Yes	Yes
Test button			Yes	Yes	Yes	Yes
Stop button			Yes	Yes	Yes	Yes
Mounting			Plug-in	Plug-in	as single unit	Plug-in
Auxiliary			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
AC-15 220V rated current A			3	3	NO: 1.7	NO: 1.7
AC-15 220V rated current A			3	3	NC: 3	NC: 3
AC-15 380V rated current A			2	2	NO: 1.3	NO: 1.3
AC-15 380V rated current A			2	2	NC: 2	NC: 2
DC-13 220V rated current A			0.15	0.15	0.15	0.15
Conductor cross section (mm2)	Main circuit	Solid or stranded conductor	1.0~2.5	1.0~2.5	1.0~2.5	2.5~16
	Main circuit	Terminal screw	M3.5	M4	M5	M6
	Auxiliary circuit	Solid or stranded conductor	2 x (0.5~1)	2 x (0.5~1)	2 x (0.5~1)	2 x (0.5~1)
	Auxiliary circuit	Terminal screw	M3.5	M3.5	M3.5	M3.5

Protection Characteristics
Item	NO	Times the setting current		Release time	Test condition
Overload protection	1	1.05		> 2h	Start from Cold status
	2	1.2		< 2h	Start from Hot status right after item no. 1
	3	1.5		< 2m	Start from Hot status right after item no. 1
	4	7.2		2s< Tp< 10s	Start from Cold status
Phase-failure protection		Any two phases	Another phase
	5	1.0	0.9	> 2h	Start from Cold status
	6	1.15	0	< 2h	Start from Hot status right after item no. 1

Selection and Ordering Date
Number	Rated current A	Fuse links A	For contactor
Number	Rated current A	1
T16	0.11-0.16	0.5	CJX8-9 CJX8-16
	0.14-0.21	0.63
	0.19-0.29	1.25
	0.27-0.4	2
	0.35-0.52	2
	0.42-0.63	2
	0.55-0.83	2
	0.7-1.0	4
	0.9-1.3	4
	1.1-1.5	6
	1.3-1.8	6
	1.5-2.1	6
	1.7-2.4	6
	2.1-3	10
	2.7-4.0	10
	3.4-4.5	16
	4.0-6.0	20
	5.2-7.5	25
	6.3-9.0	35
	7.5-11	35
	9.0-13	35
	12-17.6	50
