Product Specifications
| Prod Model: |
T170 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Product Description

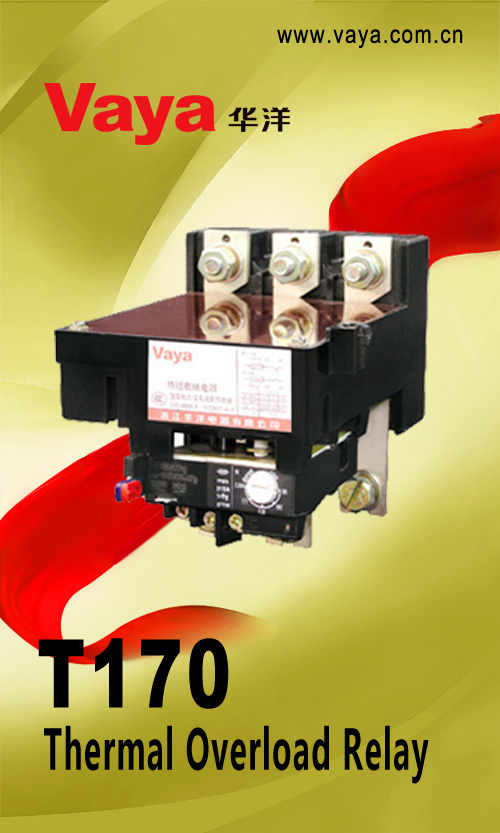

T170 thermal overload relay
Application
T170 thermal overload relay are suitable for overload and phase-failure protection of AC motors with frequency of 50/60Hz, voltage up to 690V, current up to 0.16-500A under 8-hours duty or uninterrupted duty.
Functions provided by these relays, are phase-failure protection, temperature compensation, ON/OFF indication, and manual/automatic reset.
Applicable Standards: National Standard: GB 14048, International Standards: IEC 60947-4-1.
The relays can be mounted onto contactors or installed as single units.
Operating Conditions
The altitude couldn t exceed 2000m.
Ambient temperature: -5 ~+55 degree centigrade and the average temperature no more than +35 degree centigrade in 24 hours.
Atmosphere: Comparative humidity no more than 50% at max +40 degree centigrade, and it may be higher at a lower temperature. The lowest average temperature no more than +20 degree centigrade in the wettest month.
The maximum average comparative humidity of this month could not exceed 90%, The change of temperature leading to dew on the product must be considered.
Class of pollution: Class 3.
The slope between installation surface and vertical surface could not exceed plus and minus 5 degree
Keeping away from explosive, corrosive and electric atomy.
Keeping dry.
The product should be used and installed at certain place without any shock, vibration etc.
|
Technical Data |
|
Item |
|
T85 |
T105 |
T170 |
T250 |
T370 |
|
Rated operational current |
|
100 |
115 |
200 |
400 |
500 |
|
Rated operational voltage |
|
690 |
690 |
690 |
690 |
690 |
|
Phase-failure protection |
|
Yes |
Yes |
Yes |
Yes |
Yes |
|
Manual/Auto reset |
|
Yes |
Yes |
Yes |
Yes |
Yes |
|
Temperature compensation |
|
Yes |
Yes |
Yes |
Yes |
Yes |
|
Releasing indicator |
|
Yes |
Yes |
Yes |
Yes |
Yes |
|
Test button |
|
Yes |
Yes |
Yes |
Yes |
Yes |
|
Stop button |
|
Yes |
Yes |
Yes |
Yes |
Yes |
|
Mounting |
|
Plug-in |
as single unit |
as single unit |
as single unit |
as single unit |
|
Auxiliary |
|
1NC |
1NO+1NC |
1NO+1NC |
1NO+1NC |
1NO+1NC |
|
AC-15 220V rated current A |
|
2.5 |
NO: 1.7 |
NO: 1.7 |
NO: 1.7 |
NO: 1.7 |
|
NC: 3 |
NC: 3 |
NC: 3 |
NC: 3 |
|
AC-15 380V rated current A |
|
1.3 |
NO: 1.3 |
NO: 1.3 |
NO: 1.3 |
NO: 1.3 |
|
NC: 2 |
NC: 2 |
NC: 2 |
NC: 2 |
|
DC-13 220V rated current A |
|
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
Conductor
cross
section
(mm2) |
Main circuit |
Solid or stranded conductor |
2.5~16 |
4.0~25 |
25~50 |
25~95 |
25~240 |
|
Terminal screw |
M6 |
M6 |
M8 |
M10 |
M12 |
Auxiliary
circuit |
Solid or stranded conductor |
2 x (0.5~1) |
2 x (0.5~1) |
2 x (0.5~1) |
2 x (0.5~1) |
2 x (0.5~1) |
|
Terminal screw |
M3.5 |
M3.5 |
M3.5 |
M3.5 |
M3.5 |
|
Protection Characteristics |
|
Item |
NO |
Times the setting current |
|
Release time |
Test condition |
Overload
protection |
1 |
1.05 |
|
> 2h |
Start from Cold status |
|
2 |
1.2 |
|
< 2h |
Start from Hot status right after item no. 1 |
|
3 |
1.5 |
|
< 2m |
Start from Hot status right after item no. 1 |
|
4 |
7.2 |
|
2s< Tp< 10s |
Start from Cold status |
Phase-failure
protection |
|
Any two phases |
Another phase |
|
|
|
5 |
1.0 |
0.9 |
> 2h |
Start from Cold status |
|
6 |
1.15 |
0 |
< 2h |
Start from Hot status right after item no. 1 |
|
Selection and Ordering Date |
|
Number |
Rated current A |
Fuse links A |
For contactor |
|
1 |
|
|
|
T170 |
90-130 |
25 |
|
CJX8-170 |
|
110-160 |
315 |
|
|
140-200 |
355 |
|
