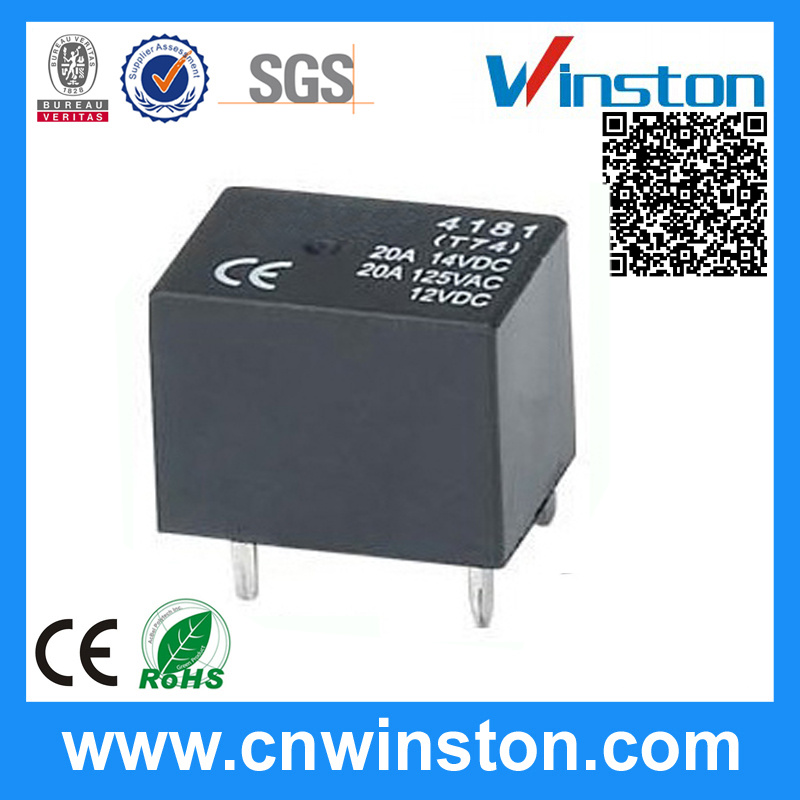

Product Specifications
| Prod Model: |
T74 (4148) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Brand: |
Winston |
| Protect Feature: |
Sealed |
| Contact Load: |
Low Power |
| Contact Form: |
1A, 1c.1b |
| Coil Voltage: |
3-60VDC |
| Electrical Life: |
1X105 |
| Mechanical Life: |
1X107 |
| Max. Switching Current: |
10A |
| Max. Switching Voltage: |
250VAC/30VDC |
| Weight: |
8.5g |
Product Description
Specifications
Mini relay miniature relay jqc-3f(T73) PCB
1 widely exported to middle east,Asia,Europe,etc
2 The new special genuine
Product Description
Mini relay miniature relay jqc-3f(T73) PCB
Specification
1.Strengths and Features:
(1).12A switching capability
(2).low power consumption
(3).small size, light weight (4).high quanlity, competitive price
(5).high density PCB mounting
(6).partners:Midea, LG, FUJITSU, ABB, ect.
(7).satety approals:UL,TUV,CQC
(8).RoHS compliant
Technical parameters
Dimensions(L×W×H) |
19.1×15.4×15.5mm |
Contact form |
1a, 1b, 1c |
Contact materia |
Silver alloy |
Contact rating |
15A 125VAC (Form A)
10A 250VAC (Form A)
12A 125VAC
10A 28VDC
7A 250VAC
1/3HP 250VAC
TV-5 120VAC, N.O.
|
Coil voltage |
3-60VDC |
Coil power |
0.36W |
Contact resistance |
≤50mΩ |
Insulation resistance |
≥100MΩ |
Life |
Electric life |
1×105OPS |
Machine life |
1×107OPS |
Dielectrics Voltage-resistance |
Between contacts |
750VAC |
Between contact and coil |
1500VAC |
Ambient temperature |
-40°C~+105°C |
Weight |
8.5g |
