Product Specifications
| Prod Model: |
TA25, TA42, TA75, TA110, TA200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Brand: |
Winston |
| Protect Feature: |
Sealed |
| Contact Load: |
High Power |
| Certificate: |
CE |
Product Description

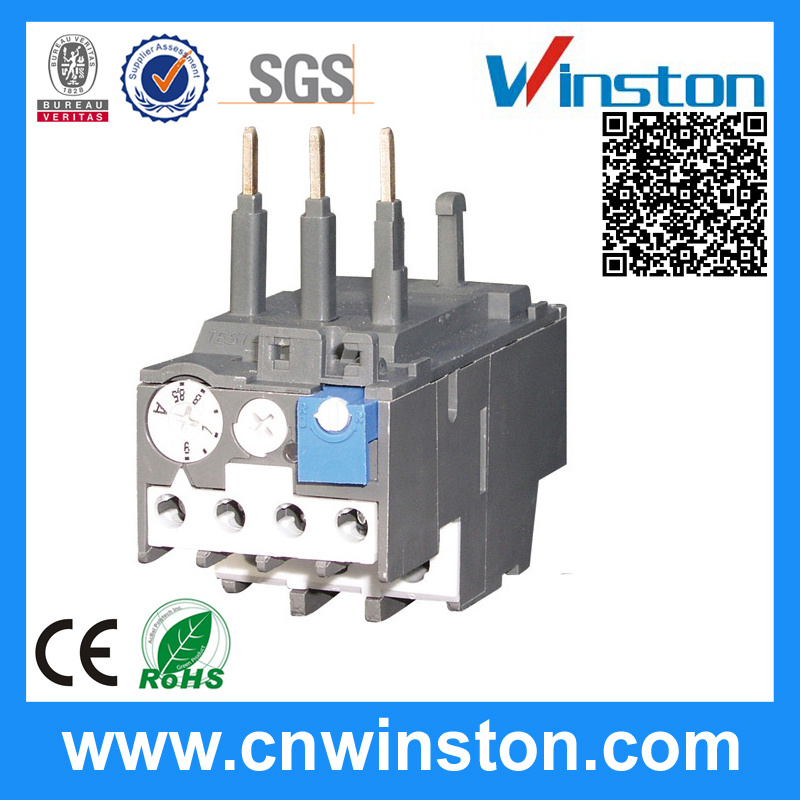

TA series Phase-failure Thermal overload relay 690V 30A, TA-25, TA-42, TA-75, TA-110, TA-200
VR30(TA) Series Thermal overload relay
Application
VR30(TA) series thermal overload relay are suitable for overload and phase-failure protection of AC motors with frequency of 50/60Hz,voltage up to 690V,current up to 0.1-30A under 8-hours duty or uninterrupted duty
Functions provided by these relays, are phase-failure protection, temperature compensation, ON/OFF indication , and manual/automatic reset.
Applicable Standards
National Standard: GB 14048
International Standard: IEC 60947-4-1
The relays can be mounted onto contactors or installed as single units
Operating Conditions
1 The altitude couldn t exceed 2000m.
2 Ambient temperature: -5 ~+55 and the average temperature no more than +35 in 24 hours
3 Atmosphere: Comparative humidity no more than 50% at max +40 , and it may be higher at a lower temperature. The lowest average temperature no more than +20 in the wettest month.The maximum average comparative humidity of this month couldn t exceed 90%, The changeof temperature leading to dew on the product must be considered
4 Class of pollution: Class 3
5 The slope between installation surface and vertical surface couldn t exceed 5o
6 Keeping away from explosive, corrosive and electric atomy
7 Keeping dry
8 The product should be used and installed at certain place without any shock, vibration etc.
Type | TA series Thermal overload relay |
| Rated Voltage | 690V |
| Rated Current | 0.1-30A |
| Material | PC/customized |
| Color | Grey+ ivory /White /customized |
| Sample | Ok to provide sample |
| Class | A,B |
| Mechniacal Life | 5 Years |
| Quality Assurance | 24 months |
| Standard | IEC609474-1, GB14048 |
TRADE INFO
Trade Terms:FOB ,CIF ,CFR,EXW,DDP
Payment terms:T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions:30% deposit in advance,70% balance before shipping.
Delivery time:3-7working days after deposit,2-4 working days for inventory
Packing:Neutral carton,Wooden case for large size
Shipping:By sea,by air and by express delivery
