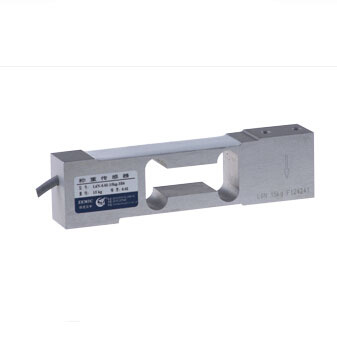

Table Scale Load Cell L6n 3kg to 100kg
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Zemic OIML Approval Table Scale Load Cell L6N 3kg to 100kgProducts specification*L6N load cells are available in the capacities 3kg to 100kg.
*Alumium construction with parallel beam.
*Silicon adhesive sealed, surface anodized and anti-corrosion.
*Intergral structure and easy installation.
*Suitable for electronic balance and other electronic weighing devices.Features:1. Capacity:3kg to 100kg .2. High accuracy.3. Max. platform size: 400x400mm.4. With OIML approval.Specifications:Capacity | (kg) | 3/5/8/10/15/20/30/40/50/75/100 |
Accuracy | | C3 |
| Approvals | | OIML R60 C3 |
Maximum number of verification intervals | n max | 3000 |
Minimum load cell verification interval | v min | Emax/7000 |
Combined error | (%FS) | ≤±0.020 |
Creep | (%FS/30min) | ≤±0.0167 |
Temperature effect on sensitivity | (%FS/10ºC) | ≤±0.0175 |
Temperature effect on zero | (%FS/10ºC) | ≤±0.020 |
Output sensitivity | (mv/v) | 2.0±0.2 |
Input resistance | (Ω) | 406±6 |
Output resistance | (Ω) | 350±3 |
Insulation resistance | (MΩ) | ≥5000(50VDC) |
Zero balance | (%FS) | 2 |
Temperature,compensated | (ºC) | -10~+40 |
Temperature,operating | (ºC) | -35~+65 |
Excitation, Recommended | (V) | 5~12(DC) |
| Excitation,Max | (V) | 18(DC) |
Safe overload | (%FS) | 150 |
Ultimate overload | (%FS) | 300 |
| Corner correction | | 0.02% load value/100mm |
Outline Dimension mm(inch):
![]()
| Prod Model: |
L6N |
