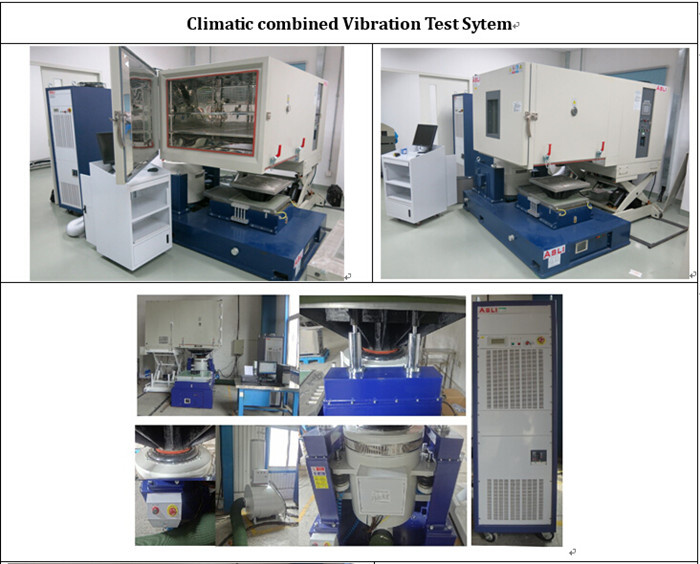

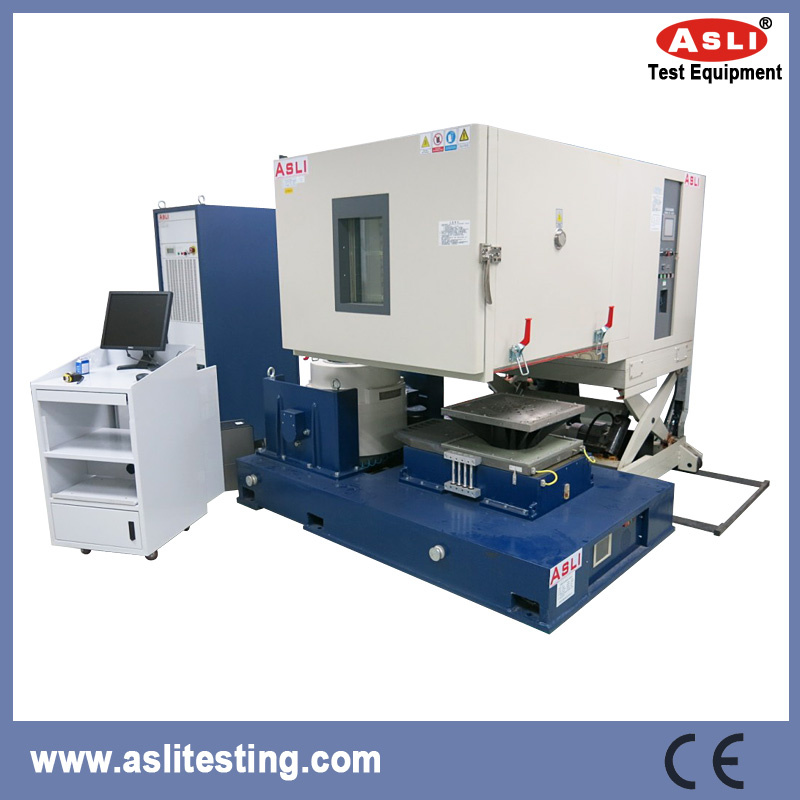

Tempeature humidity environmental combined vibration testing machine
Application:Temperature and humidity test chambermatched with appropriate vibration test bench to meet with respective corresponding environmental test requirements of temperature, humidity and vibration; Extensively applied in aviation and aerospace, shipping, electronics, automobile car, telecommunications, industry.
Features:1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; Independent console2. To make it convenient for operation; Original refrigerating compressor unit and its main accessories imported from abroad3. Imported LCD color touch screen controller capable of automobile control of temperature humidity programs; 4. With R232 Telecommunication interface. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool5. Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration
Warranty: One year free warranty for whole set machine, lifelong time maintainance.

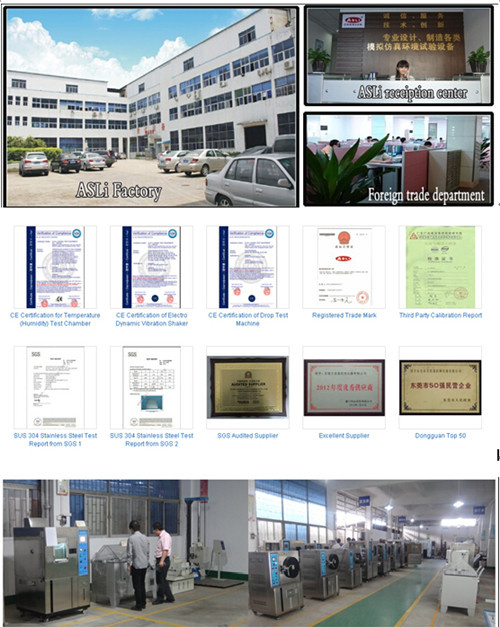

Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.Walk in stability test chamber is our star products , and we had obtained the CE certification for this machine.
ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
| Model | THV-408(A~F) | THV-1000(A~F) | THV-1500(A~F) |
Internal Dimension
W×H×D(mm) | 600×850×800 | 1000×1000×1000 | 1500×1500×1500 |
External Dimension
W×H×D(mm) | 850×1950×2100 | 1300×2200×2400 | 1800×2400×3000 |
| Temperature Range | Low temperature: (A:25degree; B:0degree; C:-20degree ; D: -40degree; E: -60degree; F: -70degree) High temperature:100degree(150degree) |
| Humidity Range | 20%~98%relative humidity(10%-98% relative humidity / 5%-98% relative humidity is a special optional condition, need Dehumidifier) |
Analytic Accuracy /
Distribution uniformity
of temperature
and humidity | 0.1degree; 0.1% relative humidity/±2.0degree; ±3.0% relative humidity |
Control Accuracy of
temperature and humidity | ±0.5degree; ±2.5% relative humidity |
Temperature Rising
/ Falling
Speed Rate | Temperature rising approx. 0.1~3.0degree/min / temperature falling approx. 0.1~1.5degree/min;
(The Falling Speed Rate Min.1.5degree/min is a special optional condition) |
| Internal and External Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
| Cooling System | Wind cooling or water cooling/single segment compressor(-40degree, double segment compressor -70degree) |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection
switch, over- humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Inner door with operation hole(Optional) , Recorder(optional), Water Purifier, Dehumidifier |
| Vibration Test Equipment | Choose proper vibration test bench according to customer's test condition , the technical
parameters please take Electrodynamics Type Vibration Tester's parameters
in this catalog for reference |
| Power | AC380V 3ph 5 Lines, 50/60HZ |
