Product Specifications
| Prod Model: |
21011 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Depending on Your Needs |
| Standards: |
GB |
| Connection: |
Depending on Your Needs |
| Brand: |
Xin Xing |
| Model: |
Complete |
| Type: |
Fitting |
Product Description

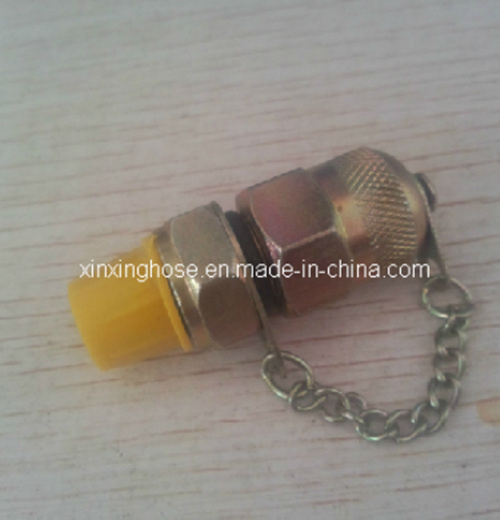

Test Point Pressure Hose Connector, Test coupling Material: Stainless steel, type: G1/4 - M16*2 test point, scope of application: Hydraulic oil, gas, corrosive gas, product alias: Pressure hose connector, joint pressure points, to take over the caliber: DN8 mm, heat resistance, 20-200º C, pressure: 63 (MPa)
PT series micro high pressure of Introduction in this series are widely used in the hydraulic system pressure detection, lubrication, exhaustsystem, pressure oil sampling, with advanced structure, reliable sealing,small volume, light weight, easy to use.
| Model order | The original model | M1 | M2 | L | I | S |
| PT-1 | PT-00 | M10*1 | M12*1.25 | 33 | 8 | 17 |
| PT-2 | PT-00A1 | M10*1 | M16 | 42 | 8 | 19 |
| PT-3 | PT-00A2 | M14*1.5 | M16 | 46 | 12 | 19 |
| PT-4 | DI-3/M10*1 | M10*1 | M16 | 46 | 12 | 19 |
| PT-5 | DI-3/M12*1.5 | M12*1.5 | M16 | 46 | 12 | 19 |
| PT-6 | DI-3/M18*1.5 | M18*1.5 | M16 | 46 | 12 | 24 |
| PT-7 | DI-3/G1/4 | G1/4 | M16 | 46 | 12 | 19 |
| PT-8 | BZ(JB/ZQ4526-86) | M12*1.5 | M14*1.5 | 50 |
| 17 |
| PT-9 | KF-1/M10*1 | M10*1 | M16*1.5 | 46 | 11.5 | 19 |
| PT-10 | KF-1/M12*1.5 | M12*1.5 | M16*1.5 | 46 | 11.5 | 19 |
| PT-11 | KF-1/M14*1.5 | M14*1.5 | M16*1.5 | 46 | 11.5 | 19 |
| PT-12 | KF-1/18*1.5 | M18*1.5 | M16*1.5 | 46 | 11.5 | 24 |
Ningjin Xinxing hose Co., Ltd. is a new enterprise development of high performance resin hose
The products have been widely used in petroleum, chemical industry, engineering machinery manufacturing, coal mining, shipbuilding, aviation, automotive, medical equipment and other industries, is the hydraulic and mechanical equipment ideal pneumatic hose, is the most ideal equipment pressure hose, liquid, and powder delivery, high pressure spraying, high pressure cleaning, sand blasting and other fields.
The company has strong technical force and professional design production capacity, have established close cooperative relations with many domestic university and Research Institute, and constantly develop new practical quality products.
Our company supplys different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
