Product Specifications
| Prod Model: |
JT-SLT-900C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PLC: |
Siemens |
| Touch Screen: |
High Tech From Siemens |
| Rewinding Type: |
Inverter Motor Drives Magnetic Clutch |
| Auto Tension: |
2 Sets, Inplant The PLC |
| Synchronic Belt: |
From Germany |
| Speed: |
200m/Min |
| Machine Type: |
Slitter Rewinder |
| Unwinding Type: |
Magnetic Brake for Unwinding Tension |
| Max. Unwinding Width: |
900mm |
| Automatic Lift-up Loading System: |
Yes |
| Work Method: |
Round Knife Cutting |
| Type: |
Roll Slitter |
Product Description

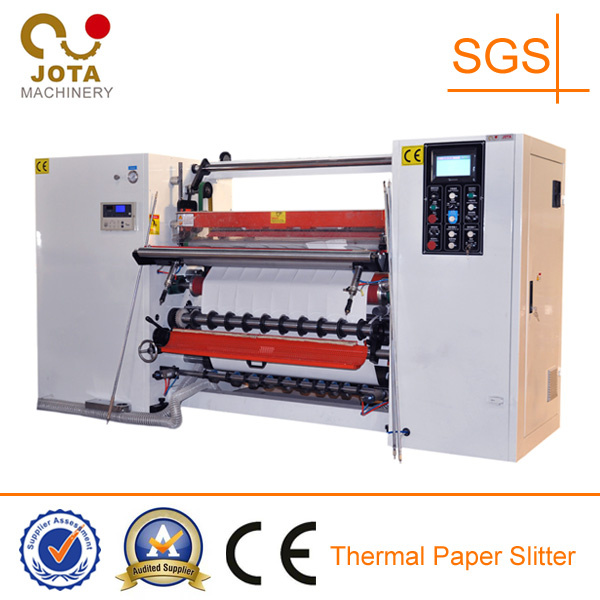

Thermal ECG Chart Paper Slitter Machine
--This Slitting Machine is used for slitting thermal paper, such as fax paper, cash register paper, ATM Paper, and other paper less than 250GSM.
Ø Equipped with Siemens PLC and Siemens HMI (touch screen) control system, all the parameters are displayed on the monitor.
Ø Equipped with frequency inverter(2.2kw) to control the motor.
Ø Equipped with Siemens inverter motor(2.2kw) for feeding, and one motor for automatic loading.
Ø Equipped with Auto Tucker to tuck in the paper to cores automatically then rewinding.
Ø Equipped with Red Line Marker which is used to make a red line to the paper roll near to the end.
Ø Equipped with emergency switch.
Ø All transmission rollers have been dynamic/static balance treated.
All the parts are treated by CNC processing to provide high precision.
| Model Type | JT-SLT-900C |
| Max. Unwinding Width. | 900mm |
| Max. Unwinding Diameter | 1000mm |
| Max. Rewinding Diameter | 200mm |
| Min. Slitting Width | 20mm |
| Max. Machine speed | 200m/min |
| Main Power | 2.2kw |
| Unwinding Shaft | 3"(76mm)air expanding shaft |
| Rewinding Shaft | 0.5" , 1" or as your request |
| Voltage | three-phase four-line, 380v,50HZ |
Focusing on the Environment and Labor Safety, Jota Machinery Industrial (Rui'an) Co. Ltd is specialized in the Paper Slitter Rewinder, Paper Sheeter, Coating and Laminaiton as well as the complete range of other converting equipment with Innovance and high Technology.
