China Glass Tech Co., Ltd. >> Thermal Insulating Soft Low-E Tempered Glass Production Machinery

Thermal Insulating Soft Low-E Tempered Glass Production Machinery

Name: Thermal Insulating Soft Low-E Tempered Glass Production Machinery
Brand: china-manufacturer-directory.com
SKU: 751370335
Availability: InStock
Rating: 4.5 (97 reviews)

Supplier:	China Glass Tech Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Tempered Glass Production Machinery
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Tempered Glass Production Machinery
Application:	Flat Tempered Glass
Processable Glass Type:	Float Glass, Tinted Glass,Reflective Glass etc
Glass Thickness:	3-19mm
Max.Length Of Tempered Glass:	8000mm
Max.Width Of Tempered Glass:	3300mm
Inverter:	Schneider Brand
Heating Wire:	Cr15ni60
Heating Type:	Radiation/Convection
Warranty:	1 Year
Type:	Glass Tempering Furnace
Certification:	ISO
Control System:	PLC

Product Description

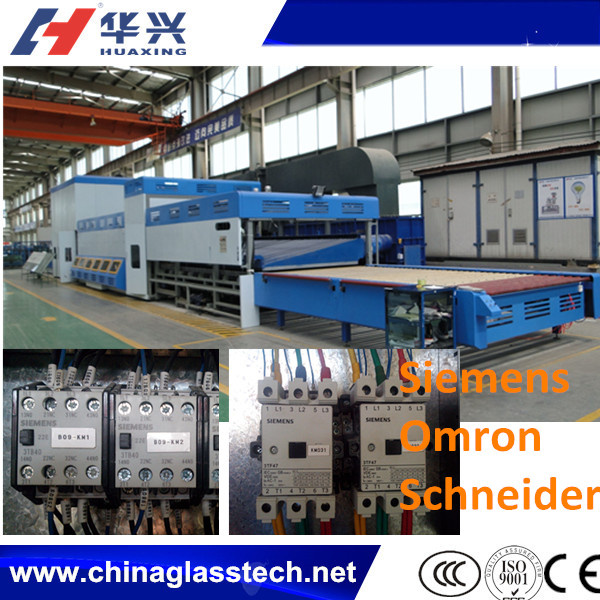

Thermal Insulating Soft Low-e Tempered Glass Production Machinery

1. Description
Glass Tempering Machine is used for producing large-size flat,tempered glass for architecture, and curved tempered glass for furniture,shower cabins and kitchen, etc. The type of sheet glass can be various such as float glass, coated glass, tinted glass,soft low-E glass etc.

2. Technical Parameter

Type	Maximum Specification (mm)	Minimum Specification (mm)	Thickness (mm)	Capacity (5mm) Square meter/hour	Power supply capacity(KVA)
HP1506	1500*600	90*90	3~8	14	≥100
HP1508	1500*800	100*100	3~12	18	≥150
HP2010	2000*1000	100*100	3~12	30	≥200
HP2012	2000*1200	120*120	3~12	37	≥250
HP2512	2500*1200	120*120	3~12	46	≥250
HP2515	2500*1500	150*250	3~19	57	≥315
HP3015	3000*1500	150*250	3~19	69	≥400
HP2518	2500*1800	150*250	3~19	69	≥400
HP3018	3000*1800	150*250	3~19	83	≥400
HP3618	3660*1800	150*250	3~19	99	≥500
HP3021	3000*2100	150*250	4~19	96	≥500
HP3621	3660*2100	150*250	4~20	116	≥600
HP4221	4200*2100	150*250	4~21	135	≥700
HP3624	3660*2440	150*250	4~22	132	≥630
HP4224	4200*2440	150*250	4~23	154	≥800
HP5024	5000*2440	150*250	4~24	184	≥1000
HP6024	6000*2440	150*250	5~22	220	≥1000
HP5028	5000*2800	200*300	5~22	214	≥1000
HP6028	6000*2800	200*300	5~22	257	≥1250

3. Application
windows and doors
Building facade/curtain wall
Furniture

4. Features
1) traditional and classic model,special insulation layer design,lower furnace body temperature.
2) lattice intelligent heating mode,adjustable power,excellent glass heated uniformity.
3) upper and lower grid with indepenence lifting mechanism, ensure flatness.
4) advanced air compression technology, 2.85mm thickness glass can be tempered.

5. Standard configuration

Electric parts	Brand
Electrical system	Omron(Japan),Siemens(Optional)
Ceramic rollers	Zhongcai(China famous brand), VSV(Optional)
Insulated cotton	Luyang(China), ISOLITE(Optional)
Heating wire	Cr15Ni60
Motor	Made in china, ABB(Optional)
Frequency inverter	Schneider(France),CONVO(Germany),Mitsubishi(Optional)

6. Quality standard and certification
We have gained CE and ISO certification.

7. Service
1). Installation and Training
Technicians are available to serve overseas for installing and training.
2). Warranty
12 month quality guarantee except for the man-made damage and force majeure circumstances.
3). Cost
Above mentioned travel expense is on the buyer, including the round ticket, accommodation cost and the daily wage.

China Glass Tech Co., Ltd. A subsidiary of Shandong Huaxing Machinery Co., Ltd. Formerly known as Shandong Huaxing Glass Technology Co., Ltd, was founded in 1998, and mainly engaged in R&D and manufacture of deep processed glass and glass deep processing machinery since then.

We are now a leading manufacturer in building materials industry of China, and a member of China Building Glass Association.

There are three divisions in our company, offering different kinds of products:

Glass Machinery Business Division: Tempered glass production equipment, insulated glass production equipment, glass cutting equipment, glass cleaning equiment, etc...

Glass Products Business Division: Art glass, tempered glass, laminated glass, insulated glass, etc...

Windows, Doors and Curtain Wall Business Division: Aluminum/PVC window&doors, glass facade.

The company registered capital is RMB 50 million, The total assets of RMB 120 million, including net assets of RMB 52 million.

The company persisted the managing principle for "integrity, efficiency, mangaing system. All the services mode in one, which including pre-sales, sale and after-sales. Meanwhile matched with high class and much experience sales group. All the time regard the customers profit as the first purpose. Set a whole services system and high reputation in China.
