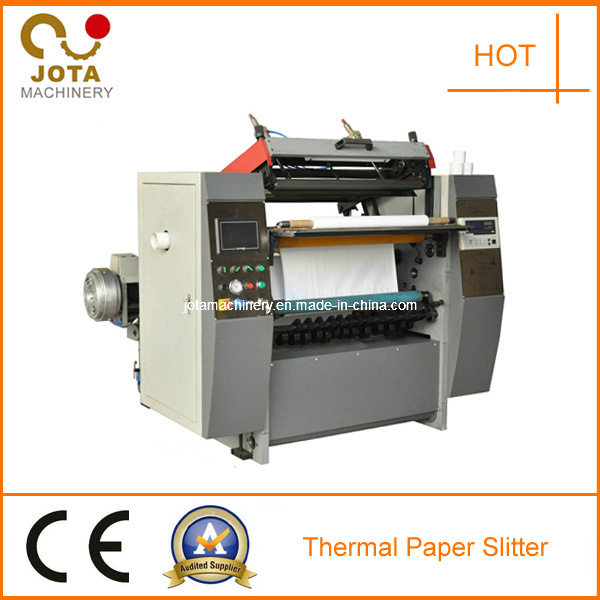

Thermal Paper Jumbo Rolls Converting Machine

Thermal Paper Jumbo Rolls Converting Machine

--This Slitting Machine is used for slitting thermal paper, such as fax paper, cash register paper, ATM Paper, and other paper less than 250GSM. It is advanced equipment at home and abroad.

--Emerson PLC
--Touch Screen Control
--Auto Tension Control System
--Meter Counter
--This Slitting Machine adopts surface rewinding system to slit the small roll fax paper or cash register paper.

--We can provide the rewinding shaft in diameter of 12.7mm, 25.4mm and 50.8mm. Some other size is subject to the clients demand.

Max. Unwinding Width: 700-900mm
Max. Unwinding Diameter: 1000mm
Max. Rewinding Diameter: 200mm
Max. Slitting Speed: 120m/min
Frequency inverter motor: 2.2Kw
Overall Dimension: 2050*1600*1500mm
Weight: 1500kg

Model Type	JT-SLT-900
Max. Parent Web Width	900mm
Max. Parent Web Diameter	1000mm
Max. Rewinding Diameter	160mm
Min. Slitting Width	28mm
Max. Speed	150m/min
Unwinding Shaft	3" Air Expanding Shaft
Rewinding Shaft	0.5", 1", 1.5" 2" are available(or as request)
Voltage	three-phase four-wire, 380V,50HZ
Power	2.2kw
Weight	1600kg
Overall Dimensions(LxWxH)	1900x1700x1500mm

Specification:

Application Material

This machine is used for slitting and rewinding all kinds of thermal paper, including fax paper, cash register paper, ATM paper, ECG paper, bond paper, medical record paper, POS paper, self-adhesive trade marks, non-woven cloth, etc.

Main

Ø         Equipped with Siemens PLC and Siemens HMI (touch screen) control system, all the parameters are displayed on the monitor. Ø         Equipped with frequency inverter(2.2kw) to control the motor. Ø         Equipped with Siemens inverter motor(2.2kw) for feeding, and one motor for automatic loading. Ø         Equipped with Auto Tucker to tuck in the paper to cores automatically then rewinding. Ø         Equipped with Red Line Marker which is used to make a red line to the paper roll near to the end. Ø         Equipped with emergency switch. Ø         All transmission rollers have been dynamic/static balance treated. Ø         All the parts are treated by CNC processing to provide high precision.
