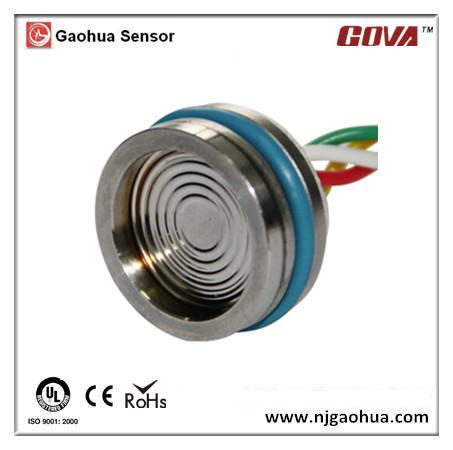

Thinner Type: Bs12 Piezoresistive Pressure Sensor

Product Specifications

Prod Model:	BS12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	0~600bar
Measured Medium:	Gas, Vapor, Liquid
Pressure Reference:	Gauge, Sealed Gauge, Absolute
Output:	Mv
Usage:	Pressure Measurement

Product Description

BS12 Piezoresistive OEM Pressure Transducers



Feature
n  Pressure range (-1~600)bar;
n  Pressure reference: Gauge, absolute and sealed gauge;
n  Constant current power supply;
n  Isolated construction to measure various media
n  OEM pressure element
n  316L stainless steel material
n  Perfect long term stability
n  Different male thread connection optional

Application
·Industrial process control   ·level measurement   ·Gas, liquid
pressure measurement  ·Pressure meter   ·Pressure calibrator
·Liquid pressure system & switch ·Refrigeration equipment &air
conditioner   ·Aviation and navigation inspection
Introduction
BS12 series piezoresistive pressure transducers adopt high-sensitivity piezoresistive silicon chip inside for pressure sensing. The chip is protected against ambient influences by a stainless steel housing  sealed with a concerntrically corrugated diaphragm.The housing is filled with silicone oil for the transfer of the pressure from the diaphragm to the sensing component. Exchanging the pressure into mV electrical output signal.

The transducers are designed for floating O-ring seal mounting for avoiding housing induced stress,this also can guarantees the performance over pressure.All metal parts in contact with the pressure media are made of stainless steel 316L.

They are delivered with engraved serial number. Once any problem happen on any transducer, all testing records during the whole process from raw material to the finished products is ready for tracing.

Universal BS12 Piezoresistive Pressure Transducers
The universal BS12 Piezoresistive pressure transducers is the standard type in BS12 series. Strongly interchangeable outline dimension.Short leading time. Widely used in world-wide variety of different
applications.

BS12-13 Piezoresistive Pressure Transducers
Comparing with the universal BS12 series pressure transducers,BS12-13 is designed for smaller space installation.

Assembled BS12N Piezoresistive Pressure Transducers
Put general BS12 pressure transducers into the housing with standard or special thread; use face type seal or waterline seal; with flexible construction and strict inspecting and screening; the assembled.
BS12N transducers has similar application with general type transducers,it can be used for mounting and production of different pressure instruments;

Electric Performance
Power supply	1.5mA(typ.)
Electric connection	Kovar pin or 100mm silicon rubber flexible wires
Common mode voltage output	50% of input (typ.)
Input impedance	2kΩ~6kΩ
Output impedance	2kΩ~6kΩ
Insulation resistor	250MΩ, 250VDC
Overpressure	<6MPa, 2 times FS; (6~60)MPa, 1.5times FS; Differential pressure or Low pressure range 1.3times FS
Construction
Diaphragm	stainless steel 316L
Housing	stainless steel 316L
Pin	Kovar
O-ring	Viton
Net weight	~30g(general type)
	~50g(flush diaphragm)
	Electric Connection Pin Connection Red IN+ Yellow OUT+ Black,green IN- White OUT- ~150g(assembled type)
Basic Condition
Media temperature		(25±1)ºC
Environment temperature		(25±1)ºC
Shock		0.1g (1m/s/s) Max
Humidity		(50%±10%)RH
Local air pressure		(86~106)kPa
Power supply		(1.5±0.0015)mADC

Basic Specification
Item	Min.	Typ.	Max.	Units
Linearity		±0.15	±0.25	%FS,BFSL
Repeatability		±0.1		%FS
Hysteresis		±0.05	±0.1	%FS
Zero output		±2		mVDC
FS output	60			mVDC
Zero thermal error		±0.02		%FS/ºC
≤70Kpa      Zero thermal error		±0.03		%FS/ºC
FS thermal error		±0.03		%FS/ºC
≤70Kpa FS thermal error		±0.05		%FS/ºC
Compensated temp. range	-10~70			ºC
≤70Kpa Compensated temp. range	0~70			ºC
Storage temp. range	-20~65			ºC
Stability		±0.2	±0.3	%FS/year
*testing at basic condition,G: Gauge; A: Absolute; S: Sealed gauge

Order Guide

BS12	OEM Piezoresistive Pressure transducers
	Code	Type
	U	Universal BS12 Piezoresistive Pressure Transducers
	13	BS12-13 Piezoresistive Pressure Transducers
	N	Assembled BS12N Piezoresistive Pressure Transducers
		19	Diameter: 19mm
			Code	Pressure range	Reference pressure
					Gauge(G)		Absolute (A)			Sealed gauge (SG)
			0.017	17kpa	√
			0.035	35kPa	√
			0.07	70kPa	√
			0.1	100kPa	√		√
			0.2	200kPa	√		√
			0.35	350kPa	√		√
			0.7	700kPa	√		√
			1.4	1.4MPa	√		√			√(13)
			2.1	2.1Mpa	√		√			√(13)
			3.5	3.5MPa			√			√(13)
			7	7MPa			√			√(13)
			17	17MPa			√			√(13)
			35	35MPa			√			√(13)
			60	60MPa			√			√
				Reference Pressure		Code		Excitation
						C		1.5mA
						V		others (please specify)
								Code	Temperature compensated type
								N	no compensation
								R	compensated by resistors
									Code		Electric connection
									1		kovar
									2		silicon rubber flexible wires
BS12	U	19	0.35	G		C		N	1

Order Note
1. It is recommended that the transducers should be installed as Suspended Mode to avoid face tight press and avoid affecting transducers stability.
2. Please pay attention to protect the diaphragm to prevent any damage or bad performance.
3. If the working temperature of Viton rubber exceeds the temperature of the rubber specification or be applied in critical environment, please contact us.
4. The material of measuring medium should be compatible with the stainless steel.If it is corrosive,pls specify its material in detail.
5.Please note in the order if you need zero pressure as negative pressure.
6. All specifications are subject to change.Contact Gaohua for specifications and engineering drawings that are critical to your application.Drawings contained in this document are for reference only.
