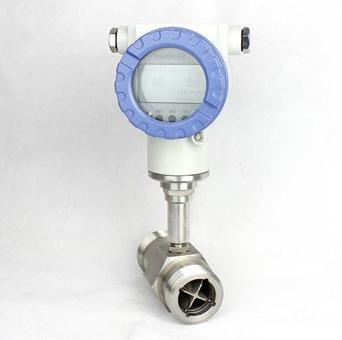

Thread Turbine Flow Meter

Product Specifications

Prod Model:	HLWGY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Supply:	24V DC/Battery
Body Material:	Ss304
Output:	4-20mA or Pulse
Accuracy:	≤±0.1%
Main Application:	Fuel Oil
Sensor:	Tube/Flange
Type:	Turbine Flow Meter
Measuring Media:	Liquid
Measuring Principle:	Electrical Principles
Size:	Dn4-Dn50

Product Description

Description  of  products
I Outline
HLWGY series Turbine Flowmeter has simple structure, high accuracy, good repetitiveness, fast response and
convenient maintenance. It is widely used for liquid without corrosion to stainless steel, Al2O3 or hard alloy, without
fibre or particle and kinematic viscosity less than 50×10-6m2/s.
II Features
1. High accuracy: ±1%, ±0.5%, ±0.2% for high accuracy
2.Good repetitiveness: 0.05% ~ 0.2%
3. Output of pulse frequency signal, suitable for totalizer and connection with PC; no zero shift and strong
interference resist
4.High frequency signal (3~4 kHz), strong signal resolution power
5. Turndown: 1:20, 1:10
6.Compact structure & convenient maintenance
Instrument Classification
1. According to instrument function, HLWGY Turbine Flowmeter can be classified to two types, that is:
(1) Turbine flow sensor/transmitter
(2)Smart integral turbine flow meter
2. Function Description
(1)Turbine flow sensor/transmitter
This product itself has no local indication function, only remote transmission of flow signal. Flow signal can be
divided to pulse signal or current signal (4-20mA); low price, high integration level, small volume, especially
suitable for using together with secondary indicator, PLC, DCS, etc. computer control system.
Basic Parameters

Instrument Diameter (mm) & Connection	4, 6, 10, 15, 20, 25, 32, 40 thread connection (15, 20, 25, 32, 40) 50, 65, 80, 100, 125, 150, 200 flange connection
Accuracy	± 1%±0.5% ±0.2% (need special order)
Turndown	1:10, 1:15; 1:20
Instrument Material	SS304, SS316 (L)
Medium Temperature	-20 to +120 Degree C
Ambient Conditions	Temperature -10 to 55 C, relative humidity 5% to 90%, atmospheric pressure 86 to 106 KPa
Output Signal	Sensor: pulse frequency signal, low electrical level≤0.8V,high level≥8V Transmitter: two wire, 4-20 mA DC current signal
Power Supply	Sensor: +12V DC, +24V DC (optional) Transmitter: +24V DC Local indication type: built-in 3V lithium cell or +24VDC external
Signal Transmission Wire	STVPV3×0.3 (3 wire), 2×0.3 (2 wire)
Transmission Distance	No more than 1000 m
Signal Line Interface	Basic type: Hausman connector or 3-core wire; Explosion-proof type: M20 × 1.5 (F)
Explosion Proof	Basic type: non-explosion proof; explosion proof type: ExdIIBT6
Enclosure Protection	IP65
