Three Phase Card Reader Data Collector
Product Specifications
| Prod Model: |
HCC750 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Baud Rate: |
2400 BPS, 9600 BPS, 19200 BPS |
| Life Time Of Head: |
Approx. 500, 000 Passes |
| Cable Length: |
120 Cm |
| Card Standard: |
ISO 7811 |
| Approx.: |
300, 000 Passes |
| Type: |
Data Collector |
| Certification: |
CE |
Product Description

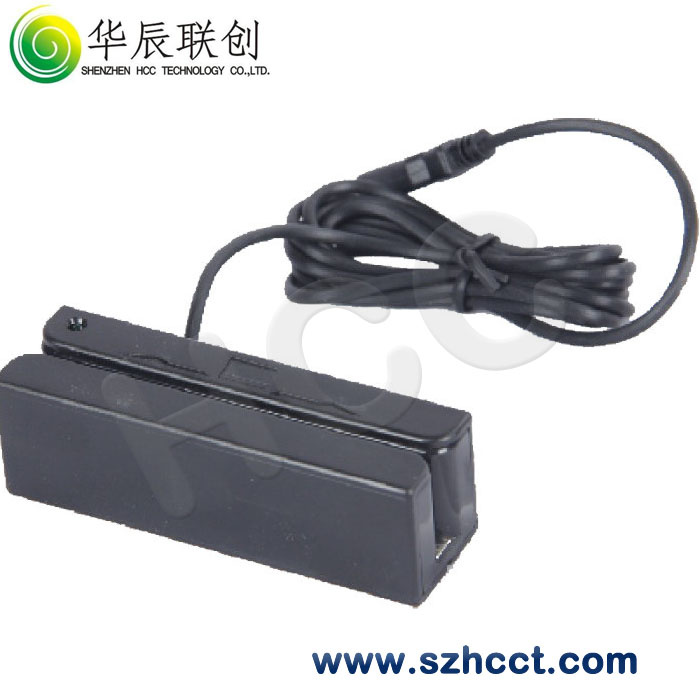

Mini MSR (HCC750)
Feature
Manual swipe type reader
Bi-direction read capability
ISO 7811 conformance
RS-232 interface, baud rate adjustable. USB, PS/2 interface at optional
Operation responded by two LEDs and buzzer
Power supplied by PC keyboard
Small size
Sleeping mode (power saving)
Cover: Plastic, Ivory color or black color at optional
Specification
Track 1 Track 2 Track 3
Recording density 210 BPI 75 BPI 210 BPI
Capacity 79 characters
(7 bit code) 40 characters
(5 bit code) 107 characters
(5 bit code)
Power Power supplied by the computer
Power supplied by the cocomputer
Card operation speed 10-150 cm/sec
10-180 cm/sec
Decoding method F/2F
F/2F
Operation temperature -10-50 -10-50
Life time of head Approx. 500, 000 passes
Approx. 300, 000 passes
Baud rate 2400 BPS, 9600 BPS, 19200 BPS
2400 BPS, 9600 BPS, 19200 BPS
Card standard ISO 7811
ISO 7811
Cable length 120 cm
120 cm
Color Ivory and black at optional
Dimension (LxDxH) 90x28x27 mm
Model Description
750x1-x2x3
Type X1 Interface X2X3 Tracks
750 R RS232 Series port 04 1/2 tracks
U USB port 05 2/3 tracks
K Keyboard compatible 06 1/2/3 tracks
| Track 1 | Track 2 | Track 3 |
| Recording density | 210 BPI | 75 BPI | 210 BPI |
| Capacity | 79 characters
(7 bit code) | 40 characters
(5 bit code) | 107 characters
(5 bit code) |
| Power Supply | Power supplied by the computer
Power supplied by the cocomputer
|
| Card operation speed | 10 ~ 150 cm/sec
10 ~ 180 cm/sec
|
| Decoding method | F/2F
F/2F
|
| Operating Temperature | -10 ~ 50°c
-10 ~ 50°c
|
| Lifetime of head | Approx. 500,000 passes
Approx. 300,000 passes
|
| Baud rate | 2400 bps,9600 bps,19200 bps
2400 bps,9600 bps,19200 bps
|
| Card standard | ISO 7811
ISO 7811
|
| Cable length | 120 cm
120 cm
|
| Color | Ivory and black at optional |
| Dimension (L*D*H) | 90*28*27 mm |
