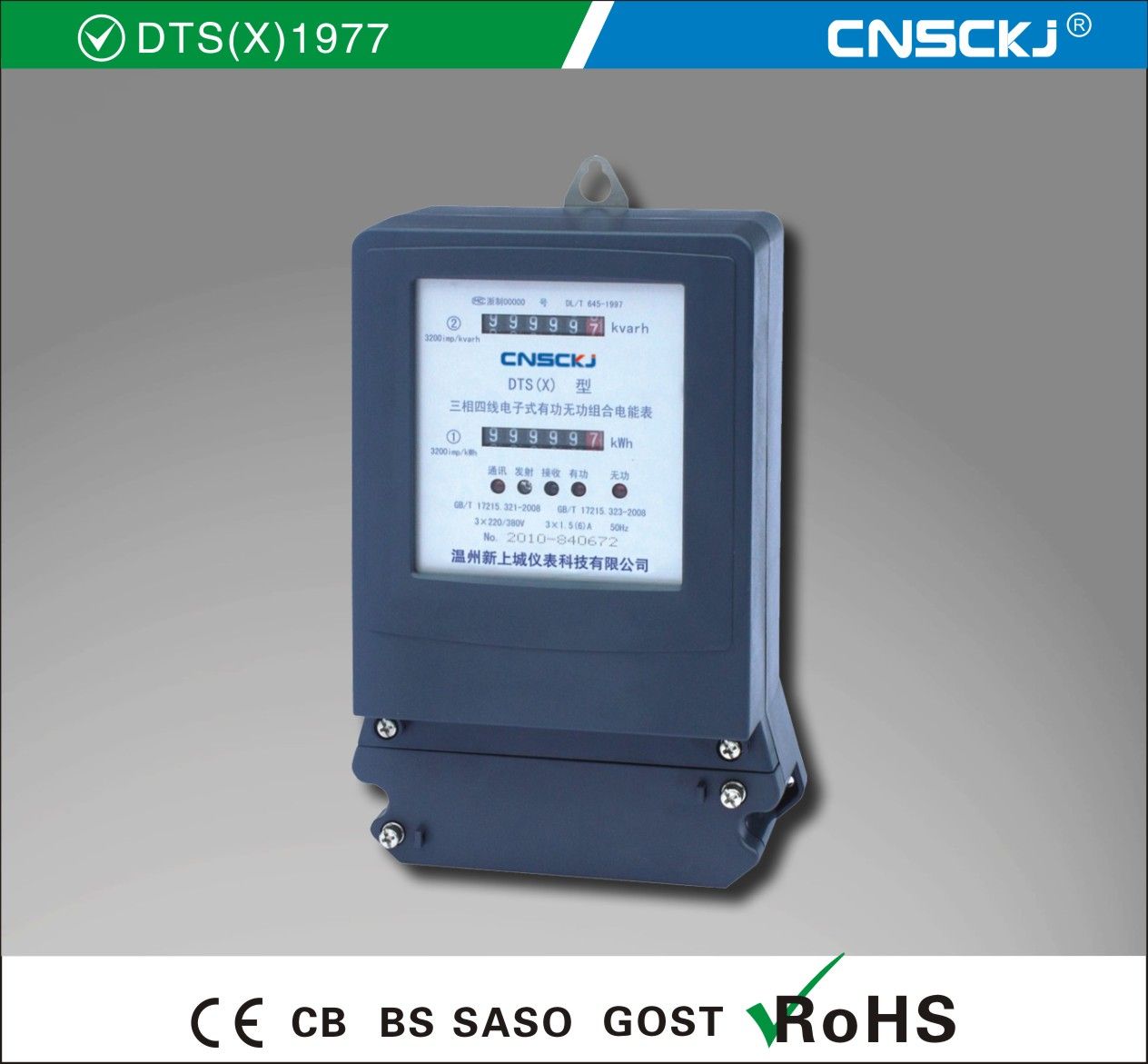

DTS(X), DSS(X)1977 Type Electronic three-Phase active and reactive composite watt-hour meter
PURPOSE AND APPLICABLE SCOPE
DTS ( X ), DSS ( X )1977 type three-phase three wire / three-phase four-wire electronic active and reactive composlte watt -hour meter is adopted to three-phase double direction power electric energy measurement special IC/SMT manufacture technology, it can measure rated fequency 50Hz of three-phase active and reactive electric energy lts performance is inconformity with " GB/T 17215.321-2008 ", " GB/T 17215.323-2008 ".
The ambient temperature is-30 º C~55 º C, the relative humidity is not over 85%.
FUNCTION AND FEATURE
1.0 class three-phase three-wire / three-phase four-wire active electric energy measurement.
2.0 class three-phase three-wire / three-phase four-wtre reactive electric energy measurement-Active, reactive power pulse output independently.
Active, reactive electric energy has two machines registers.
90° Sine reactive electric energy measurement, to guarantee that the accuracy of measurement of reactivee electric energy when unbalance load.
Active, reactive electric energy double direction measurement.
H igh accuracy, high reliability, low power consumption.
The wide working temperature range.
Need not to calibrate for Iong-term working.
|
Type |
Name |
Accuracy Class |
Specification |
|
|
|
Active |
Reactive |
|
DSS(X)1977 |
Three-phase
Three-wire |
1.0 |
2.0 |
3×100V
3×380V |
1.5(6)A
3(6)A |
|
DTS(X)1977 |
Three-phase
Three-wire |
Active1.0
Reactive2.0 |
|
3×57.7/100V
3×220/380V |
1.5(6)A
3(6)A
5(20)A
10(40)A
15(60)A
20(60)A
20(80)A
30(100)A |
