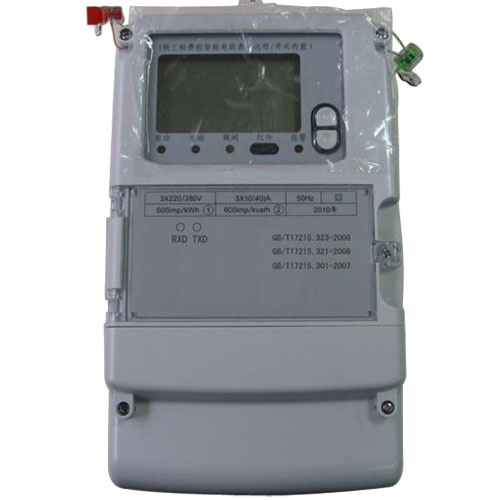

Product Specifications
| Prod Model: |
DTZY3699-Z |
| Markets: |
Eastern Europe,Oceania,Eastern Asia,Western Europe |
| Electric Equipment: |
Three-phase Four-wire |
| Installation: |
Direct Connected |
| Power Source: |
AC Meter |
| Theory: |
Electronic Meter |
| Usage: |
Multi-Functional Energy Meter |
Product Description
Functions:
1. Power measurement functions
2. Demand Measurement
3. Display
4. Clock, time interval and rate function
5. Time Adjustment
6. Measuring and monitoring
7. Event log
8. Freezing function
9. Load Records
10. Blackout meter reading
11. Data storage function
12. Clear
13. Communication function: Energy meter has infrared, RS485 and power line carrier communication interface.
14. Pulse output
15. Voltage loss, phase off
Main Technical Indicators
| Items | Parameters( or as required) |
| Accuracy Class | Active class 0.5S or 1.0 Reactive 2.0 |
| Rated Voltage | 3×220/380V 3*57.7/100V |
| Basic Current | 0.3A, 10A, 30A |
| Rated Frequency | 50Hz |
| Power consumption(W) | Power (W) Voltage circuit power consumption: ≤1.5W\6VA |
| Current circuit consumption: | ≤0.5VA ( Ib ) |
| Voltage Range | 0.7Un~1.3Un |
| Impulse Constant | 32000imp/kWh 600imp/kWh 300imp/kWh 600imp/kWh |
| Starting Current | transformer connection 0.1%In; Direct connection 0.4%Ib |
| Relative Humidity | ≤95% RH |
| Life(years) | ≥10 |
Qingdao Techen Enterprise is a hi-tech company specialized in R&D and manufacturing, and also providing the OEM/ODM service for electronic metering products. Our enterprise consists of three branch companies: Qingdao Techen Electronic Technology Co., Ltd., Qingdao Aif Electronic Co., Ltd. And Qingdao Aif Measurement Co., Ltd. Qingdao Techen Electronic engages in R&D and sales, and Qingdao Aif Electronic and Qingdao Aif Measurement are responsible for manufacturing.
We take research and development as the top work. Every year, we continuously re-invest 5% of our annual revenue back in our R&D and innovation center to create the ext generation of technology and solutions for our valued customers. Our factory is with modernized production workshop and configured with advanced manufacture equipments, the inspection facilities as well as the perfect production technology. We have 10 imported SMT production lines, the automatic wave weld production line, the international leading aging laboratory and the test and calibration benches.
The international leading automatic production lines, the complete supply chain management system and the professional QC team form the core competitiveness of our company, and provide strong support and motivation for the development of our company, and provide strong support and motivation for the development of our company.
Your satisfaction is our eternal target. Welcome to visit our factory and research centre at any time!
