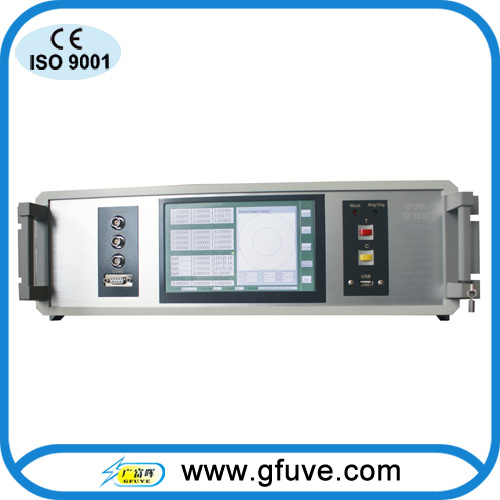

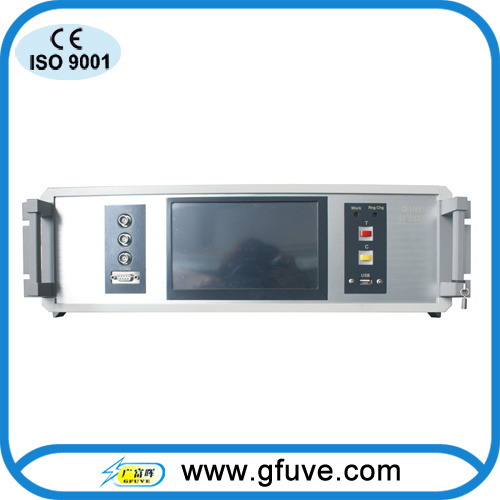

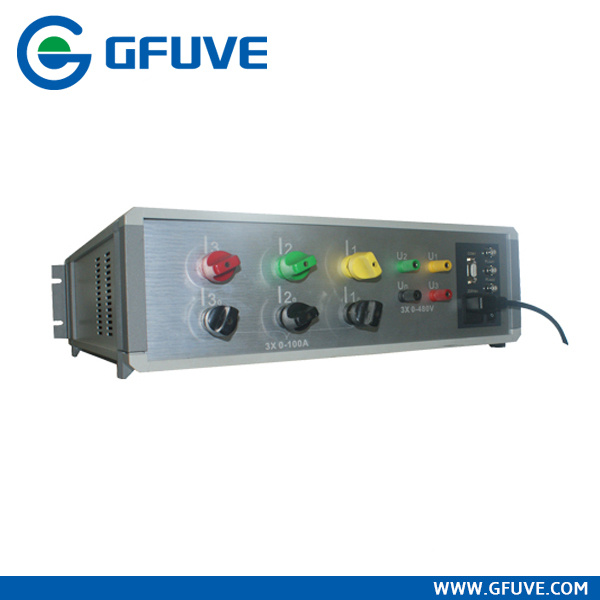

Poduct Description of electrical testing and measurement instruments GF333B portable three phase reference standard meter, High accuracy up to 0.05%
It is a portable standard to test three phase meters and single phase meters, designed to work in the field or in the laboratory.
Features
· High accuracy up to 0.05%
· Wide testing range: Voltage: 5V-480V, current: 1mA-120A
· Testing type: 3 phase 4 wire, 3 phase 3 wire
· Testing mode: Active power, reactive power, apparent power
· Harmonic analysis function
· Waveform display function
· Vector diagram function
· Energy accumulating function
· Internal pulse input port, testing meter's error directly
Specifications
Range: 5V 480V
Error± 0.02% (50V 480V) ± 0.05% (5V 50V)
Display range: 5.000000V 480.0000V
Harmonic2ND -- 63rd
Range: 1mA 120A
Error± 0.02% (0.2A 120A) ± 0.05% (1mA 0.2A)
Display range1.000000mA-120.0000A
Active power± 0.02% (0.2A 120A) ± 0.05% (0.01A 0.2A) ± 0.1% (0.001A 0.01A)
Reactive power± 0.05% (0.2A 120A) ± 0.1% (0.001A 0.2A)
Apparent power± 0.05% (0.2A 120A) ± 0.1% (0.001A 0.2A)
Active energy± 0.02% (0.2A 120A) ± 0.05% (0.01A 0.2A) ± 0.1% (0.001A 0.01A)
Reactive energy± 0.05% (0.2A 120A) ± 0.1% (0.001A 0.2A)
Apparent energy± 0.05% (0.2A 120A) ± 0.1% (0.001A 0.2A)
Range0º ~360º
Error± 0.005º .
Display range0.0001º 359.99º
Range45Hz~ 65Hz
Display range45.0000 65.0000
High frequency output(CH)12000Hz
Low frequency output(CL)5000Hz
Pulse ratio1: 1
Output level5V
Input level5V
Input frequencyMax. 1MHz
Voltage Supply220V ± 10%, 50/60Hz ± 2Hz
Ambient temperature-10° C -- 45° C
Influence of external fields≤ 0.05 % / mT
Relative humidity10% -- 80%
Dimensions (W× H× D) (mm)480× 138× 486
Weight (kg) 10
