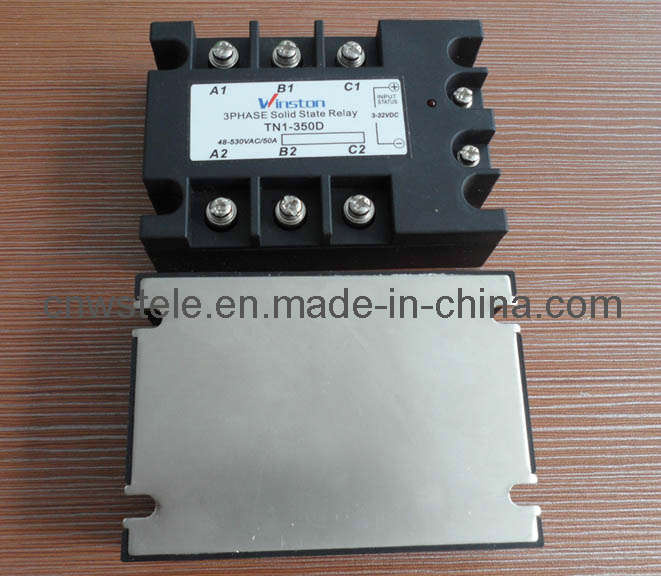

Three Phase Solid State Relay (TN1)

Name: Three Phase Solid State Relay (TN1)
Brand: China-Manufacturer-Directory.com
SKU: 672426232
Availability: InStock
Rating: 4.8 (70 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	Negotiable
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	TN1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	40A

Product Description

Parameters of Solid State Relay TN1

Types		TN1 10-120A(SSR-DA)	TN1 10-80A(SSR-AA)
Name		Three-phase SSR	Three-phase SSR
Control Voltage		014: 3-14VDC, 032: 3-32VDC	250: 90-250VAC
Control Current		6-35mA	5-35mA
Turn-on Voltage		3VDC	90VAC
Turn-off Voltage		1VDC	10VAC
Reverse Voltage		32VDC	/
Load Voltage		38: 40-440VAC	38: 40-440VAC
Load Current		10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A, 100A, 120A	10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A
Transient Voltage		38: 1000VAC	38: 1000VAC
On-state Voltage Drop		1.6VAC	1.6VAC
On-off Time		≤ 10ms	≤ 10ms
Off-state Leakage Current		≤ 10mA	≤ 10mA
Dielectrics Voltage-resistance		≥ 2500VAC	≥ 2500VAC
Insulation Resistance		500mΩ 500VDC testing	500mΩ 500VDC testing
Ambient temperature		-30-80	-30-80
Dimensions		106L× 75W× 31.5H	106L× 75W× 31.5H
Work Pointer		LED	LED
Installation		Fixed by Screw	Fixed by Screw
Packing	Quantity	60
	Dimensions of outer case	380× 220× 350mm
Weight (each relay)		Approx. 365g/460g/500g/ 540g

Dimension
