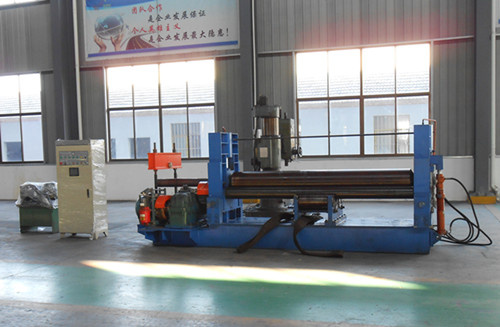

Three Roller Symmetrical Pipe Forming Machine

Name: Three Roller Symmetrical Pipe Forming Machine
Brand: China-Manufacturer-Directory.com
SKU: 706825545
Availability: InStock
Rating: 4.3 (54 reviews)

Supplier:	Nantong Shengli Heavy Machine Manufacturing Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	W11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Roller:	3 Rollers
Type:	Coiling Bending Machine
Application:	Machinery & Hardware
Automation:	Semi-automatic
Type For Fold-bending Machine:	Hydraulic Fold-bend Machine
Type For Cutting Machine:	CNC Cutting Machine

Product Description

Three roller symmetrical rolling machine belongs to the group of hydraulic three roller rolling machine. It is used to forming steel plate into drum shape products. The upper roller performs vertical movement. The rotation of the two lower rollers is driven by the motor through reducer. The height of the lower roller is unchangeable, enables convenient feeding and other operation.

Code	Unit	W11NC-40*2500
Type		Upper roller, digital screen
Pressure	T	230
Max plate width	mm	2500
Work roller length	mm	2600
Max thickness plate coiling capacity (σ s≤ 245MPa)	mm	T40B2500φ min720mm
Upper roller diameter	mm	φ 450
Lower roller diameter	mm	φ 390
Lower roller center distance	mm	580
Rolling speed	m/min	3.5
Upper roller pressing speed	mm/min	130
Main motor power	kW	37
Hydraulic motor power	kW	15
Oil cylinder stroke	mm	200
Upper roller and lower roller height	mm	80

Nantong Shengli Heavy Machine Manufacturing Co., Ltd. is a professional machinery manufacturing company which is engaged in the research and development of rolling machines(W11S, W11, W12series), shearing machines(QC11Y series) and press brake(WC67Y), tube benders and other project large scale machineries. Located in Nantong, Jiangsu Province, China

In recent years, our company has been focusing on the principles of "people-first" and aims to manufacture products in line with ISO2000: 9001, CE international management standards. We strengthen management and keep the overall capability in this industry, and the quality of our product has been greatly improved. Our advantages lie at quality, prices and services

Our company owns the import and export licenses. Our products are mainly exported to Asia, America and Europe. Our company has won the recognitions from foreign and domestic customers with good quality and has established long-term co-operative relationships with them.

We are willing to provide the most satisfactory services for customers around the world and sincerely welcome foreign and domestic friends to visit our company and co-operate on win-win situations.
