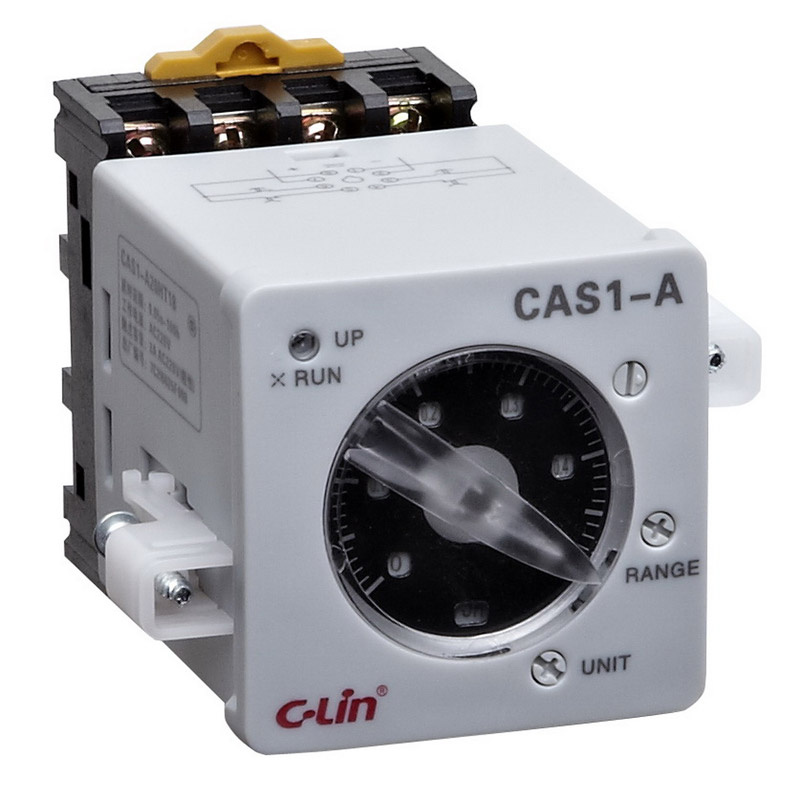

Timer CAS1-a Series

Name: Timer CAS1-a Series
Brand: china-manufacturer-directory.com
SKU: 762448855
Availability: InStock
Rating: 4.6 (140 reviews)

Supplier:	Xinling Electrical Co., Ltd. China
Price:	Negotiable/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CAS1--A20HT18; CAS1-A40HT18; CAS1-NA26HT18
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Specification

Panel size	Operating mode	Setting&display mode	Output contact	Input signal control	Installation mode	Delay range	Model
48×48mm	on-delay	potentiometer with indicator	2C time delay	/	panel type, device type, 35mm guide rail	0.05s~100h	CAS1-A20HT18
	on-delay		1C time delay and 1C instantaneous	/			CAS1-A40HT18
	multi-function delay		2C time delay	reset, pause and start			CAS1-NA26HT18

Rated value

Rated supply voltage	AC/DC100V~240V 50Hz; DC24V
Operating voltage fluctuation range	85%~110%
Input mode	no voltage input(short circuit.open circuit)
Minimum signal input time	0.1s
Contact capacity	3A AC220V(Resistive)
Ambient temperature	-5ºC~40ºC(no ice)
Ambient humidity	If the ambient temperature is 40ºC,the RH≤50%. It allows higher relative humidity in a lower temperature. For example,when the ambient temperature is 20ºC, the RH≤90%. Special measure is needed for occasional condensation produced by temperature changes
Altitude	≤2000m

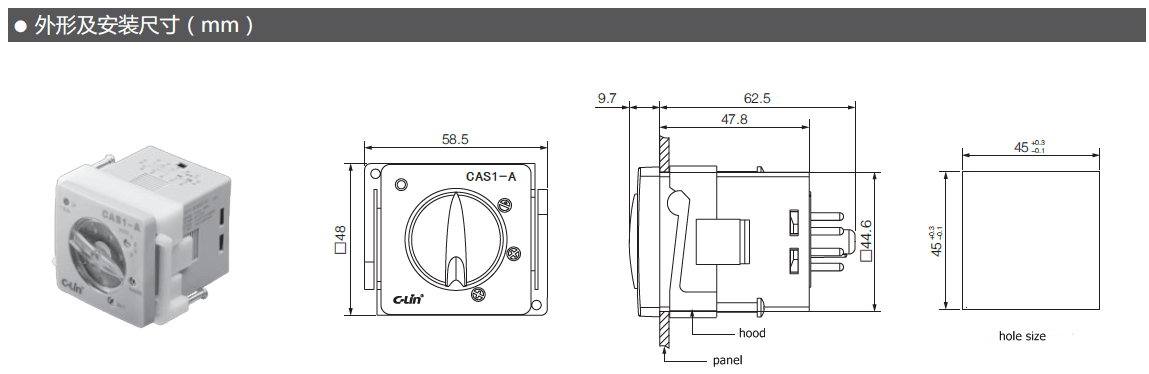

Outline dimension

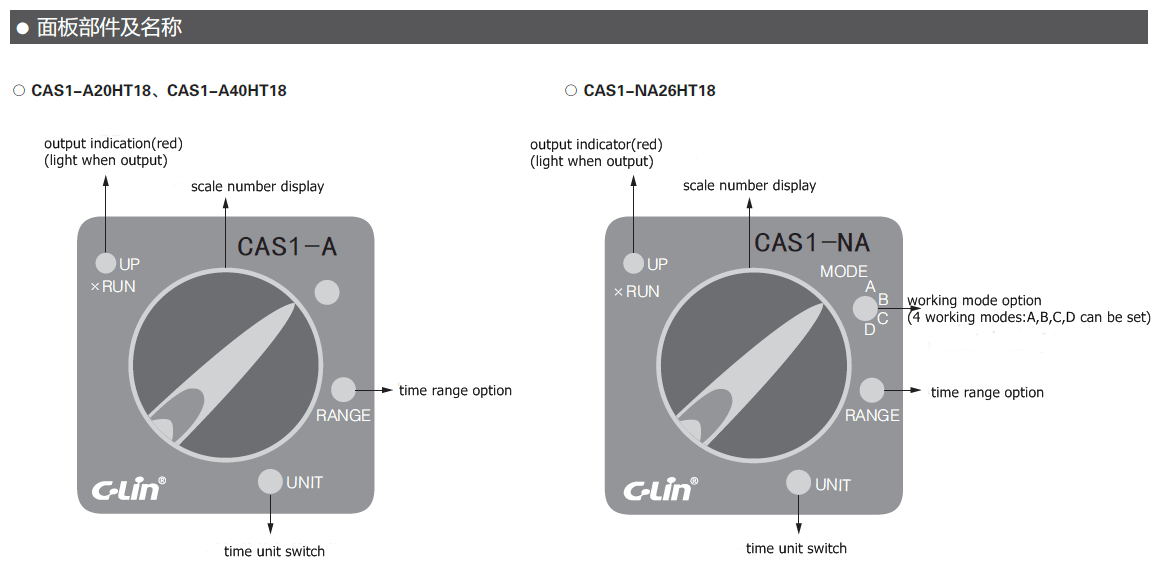

Pane Description

Note:
Please choose the specific model from the above table when enquiry(e.g.:CAS1-A20HT18) so that we can quote immediately.
