Product Specifications
| Prod Model: |
FC-W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Lavatory Paper |
| Paper Thickness: |
Thin Paper |
| Certification: |
CE |
| Condition: |
Used |
| Sheet Former Type: |
Slitting Rewinding |
Product Description

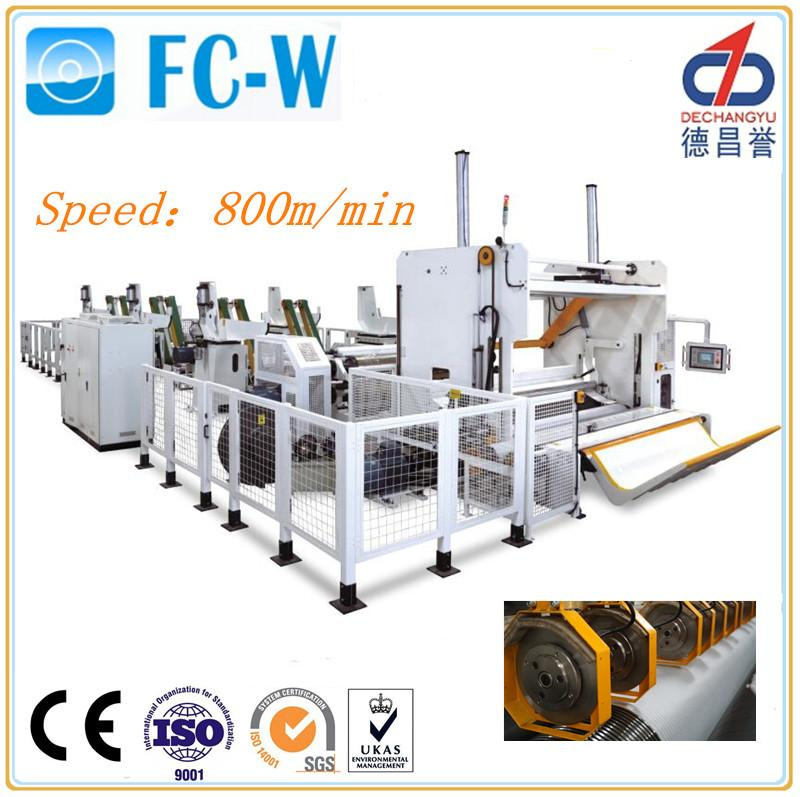

Features of the machine:
1. Rewingding control: Automatic pneumatic proportional valve controls linear slide rail lifting, hydraulic servo system controls riding roller, pneumatic grasping rewinding shaft.
2. Slitting bottom blade: One piece blade shaft or movable double-blade knife; Bottom blade easy change function.
3. Rewinding shaft lifting rail: Front & back rewinding rollers roller speed differential + riding roller control final product tension and neatness of both ends.
4. Bottom blade quick-change function
5. Spreading auxiliary roller (optional).
Model | FC-W
2500/2950/3050/3650/4000 |
Max width
of raw paper | 2450/2900/3000/3600/4000mm |
Design speed | 900/
900m/min |
Guarantee operation speed | 700/
700m/min |
Max outer diameter
of raw paper | 3000mm,,others please specify |
Inner diameter
of raw paper core | 3"(76.2mm),6",,others please specify |
Max outer diameter
of finish product | 1600mm,,others please specify |
Min slitting width | 50-90mm,others please specify |
Rewinding type | 2+1
2 rewinding rollers+1 riding roller |
Slitting system |
Shear type |
Slitting top blade | ()
Adopts independent pneumatic controlled blade group (Italian) |
Blade easy-change function |
|
Roll-kicking unit |
Pneumatic kicking roller |
| Roll-unloading unit |
Hydraulic dump |
Procedure control | Siemens S7-300 PLC |
Machine auto-stop type | / diameter of finished product/Paper roll length |
| Driver | Independent frequency driving system |
Parameter setting | ()HMI |
Unwinding type | ;
;
press type belt unwinding system
hydraumatic plunger, lift up type belt unwinding system |
Options |
*
*Backstand/Unwinding unit | *1-4,/,.
,/,,
1-4 ply,shaft/shaftless,please specify.
Forward/reverse turn,please specify.independent drive roller, paper guiding platform |
| * *Calendar | 12,,,,,.
Each chilled cast iron roller is driven by independent motor,relative angle and gap size are adjustable,pneumatic type pressing |
*
automatic pull and plug shaft system |
fully automatic pull and plug shaft |
*
*Side-trimming | ,/&
air absorb type,equip with collecting case/shredder&separators |
