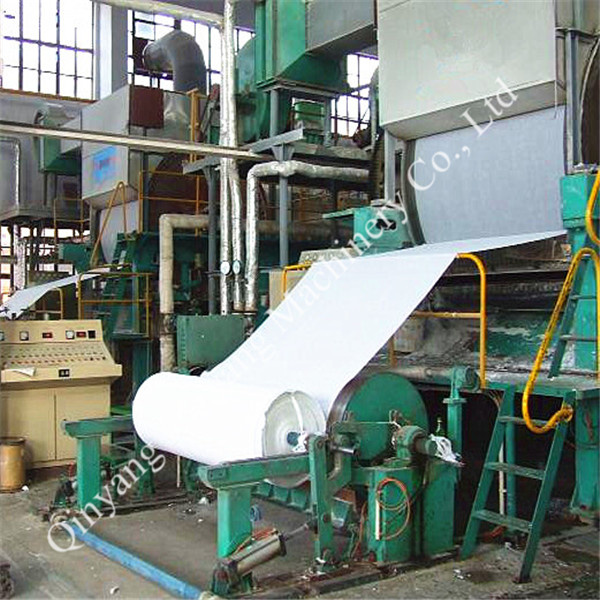

1880mm 5TPD recycled raw material for tissue paper making machine
Technical parameters
| 1. Raw material | wood pulp, recycled paper |
| 2. Output paper | High quality tissue paper |
| 3. Output paper weight | 15-40g/m2 |
| 4. Capacity | 5-6 tons per day |
| 5. Cylinder mold width | 2300mm |
| 6. Net paper width | 1800mm; |
| 7. Working speed | 70-150m/min |
| 8. Designing speed | 200m/min |
| 9. Rail gauge | 2800mm |
| 10. Drive way | Alternating current frequency converter speed control, sectional drive. |
Main structure of equipments
1. Cylinder part:
Cylinder section: Φ 1500mm × 2150× 2700mmmm stainless steel cylinder 3 sets,
Φ 450mm × 2150× 2700mmcouch roll 3sets, reverse roll 1set, rubber hardness HSD
38° C± 2
2. Dryer part:
Φ 2500mm× 2150mm× 2700mm alloy dryer can (1PC); Φ 2500mm× 2150mm× 2700mm
Coach roll (1 PC); Pneumatic pressure device, rubber hardness HSD 93° C± 2. Equipped
With duplex air bells cap.
3. Reeling part: One roll cylinder (Φ 1000mm× 2850mm), reel paper on sweat cylinder
4. Rewinding and cutting:
Φ 800mm× 2100mm× 2700mm cooling cylinder (1PS), Φ 240mm× 2100mm× 2700mmrubber
Rider rubber roll (1PC), rubber hardness: HSD 35° C± 2. Winding on the sweat cylinder.
5. Transmission & Control Division: AC frequency converter and adjustable speed,
| NO. | Equipment | Qty(set) |
| 1 | 1880mmhigh speed toilet tissue paper machine | 1 |
| 2 | Double-dryer exhaust hood | 1 |
| 3 | propeller fan | 1 |
| 4 | Vat former | 1 |
| 5 | roots pump | 1 |
| 6 | Suction box | 2 |
| 7 | High consistence hydra-pulper | 1 |
| 8 | double disc refiner | 2 |
| 9 | pressure screen | 1 |
| 10 | De-sander 12pcs | 4 group |
| 11 | thruster | 4 |
| 12 | pulp pump | 2 |
| 13 | pulp pump | 6 |
| 14 | white water pump | 2 |
| 15 | Two-phase flow pump | 4 |
