Product Specifications
| Prod Model: |
SPTM-505R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metallographic |
| Principle: |
Optics |
| Mobility: |
Desktop |
| Magnification: |
100-500X |
| Shape: |
Rectangular Prism |
Product Description
If our products meet your demand, please feel free to contact us !
Official website: www.sunpoc.com
Tel: +86-851-86855880
Fax: +86-851-86856880
Model: SPTM-505R
X-Y Axis Travel: 50 x 50 mm
Max. Working Height: 115mm
Max. Loading Weight: 5KG
Measuring Head: Origin Mitutoyo Electronic Measuring Head
Resolution of Measuring Head: 0.001mm
Machine Head: Monocular (Aimer is adjustable)
Angle Dial: Rotary Angle: 360° ; Minimum Angle Reading: 6'
Eyepiece (176-116): 15X view diameter: 13mm
Objectives(176-138): 2X working diameter: 67mm
Total Magnification: 30X
Contour Illumination: 24V/3V tungsten bulb with green filter and adjustable brightness.
Surface Illumination: 24V/3V tungsten bulb with adjustable brightness.
Power Supply: 110/220V AC 50/60Hz
Instrument Dimensions ( L*W*H ): 210 x 333 x 391mm
Machine Weight: 13.5 KG
Auxiliary Objectives: A group of partition board; 1 piece of blue filter
Accuracy: (3+L/50)um
Optional Parts: 1X, 3X, 10X Objective.
Special Features:

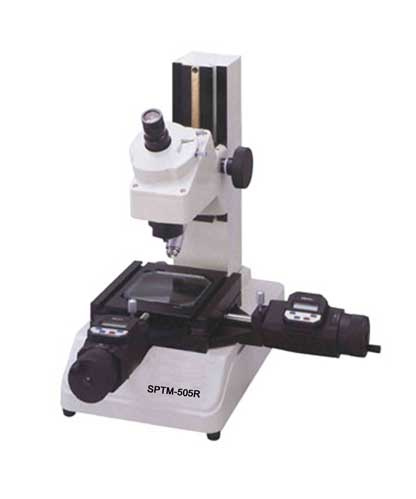

SPTM-505R tool-maker's microscope is an excellent measuring instrument for non-contact inspection and 2D precision measurement. It is suitable to measure the small parts in the metrology department and production line, and it can be installed with digital measure heads, CCD adaptor, CCD camera, digital cross line generator, monitor to be a 2D vision system.
