Product Specifications
| Prod Model: |
IMM-70 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
If our products meet your demand, please feel free to contact us !
Official website: www.sunpoc.com
Tel: +86-851-86855880
Fax: +86-851-86856880

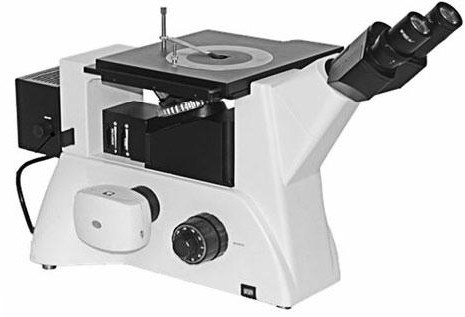

Model: Imm-70
Optical system:
Total magnification: 40x; 100x; 200x; 400x
Optical plan achromatic objective: Pl4x pl10x pl20x pl40x
Wide field eyepiece: 10x/20mm
Eyepiece: 10x ( focusing ) 0.1/20mm, micrometer 0.01/1mm
Microscope frame:
Configuration: Inverted, optical trinocular tube, gemel type, obliquity 45° , pupil distance 55-75mm, dioptre ± 5%, adjustable
Revolving objective: 4 hole ball bearing circumvolve
Double layer stage: Stage size: 242x172mm, moving range: 75x50mm; X-y resolution: 0.1mm
Rotary stage: Loading plate φ 110mm
Focus system: Coaxial jiggle up/down movement: 30mm, fine adjustment: 0.002mm; Up and down locking & torsion adjustment
Illumination system:
Bright-field illumination: Kohler illumination; Variable aperture & field diaphragm; Adjustable brightness; With 30W/12V halogen lamp;
Filters: Yellow / green / blue
Polarizing: Polarizing and checking plate
Power supply: AC90-240V/50-60Hz, 45W
Overall dimensions ( L x W x H ): 470 x 400 x 380mm
Net weight: 12 kg approx
Set of standard accessories including:
1. Main unit / trinocular tube
2. Light source
3. Infinity distance objective 4 pieces
4. Trinocular eyepieces tube 1 piece
5. Eyepieces 2 pieces
6. Divisional eyepiece 1 piece
7. Micrometer 1 piece
8. Loading plate 2 pieces
9. Set of filters: Yellow /green / blue
10. Polarized plate 1 piece
11. Specimen press plate 1 suits
12. Standard cable 1 piece
13. Spare lamp / fuse 1 piece
14. Dust plastic cover 1 piece
15. Qualified certificate 1 piece
16. User manual 1 piece
17. Packing list 1 piece
18. After service card 1 piece
Optional parts:
A. Eyepiece and objective
B. Imm-70V image processing system
C. Imm-70d digital CCD
D. Imm-70vs image analysis system.
