Transformer, 3 Phase Oil Immersed Distribution Transformer, 33kv Dry Type Power Transformer
Price: |
US $ 2000-8000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Product Specifications
Prod Model: |
S9 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Phase: |
Three |
Application: |
Rectifier |
Coil: |
Core-type Transformer |
Winding Type: |
Multi-winding Transformer |
Cooling Method: |
Oil-immersed Type Transformer |
Brand: |
Tianying |
Product Description

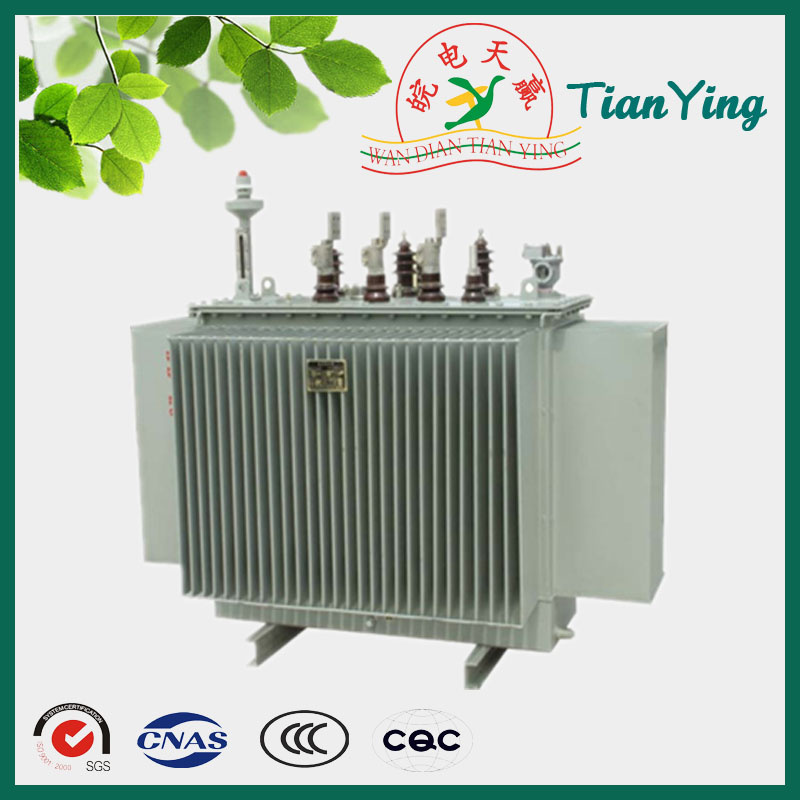

Transformer Product Description:
S11-M series Oil Immersed type Distribution Transformer is applied to power system of three-phase. 50Hz as well as 11KV and bellows. It is the main transformer equipment of medium and small-sized transformer substation, supplies power distribution, power and illumination for the industry and agriculture. Advantage:1, low no-load loss and low load loss;2, low noise;3, low voltage partial discharge;4, high anti short-circuit capacity;5, reliable performance, no oil leakage and no damages. Compare with S9 series Transformer, S11-M series Transformer decrease 30% of no-load loss; decrease 70-85% of no-load current; decrease 10K of average temperature rising; double the service life; decrease the noise of 2-4db; decrease 40 % of running cost. Normal S11-M Series Transformer apply to the altitude below 1000m; the circumstance temperature between -25ºC and +40ºC. Technical parameters: 1. Rated capacity: 20~2500kVA 2. Rated HV: 6kV to 11 kV 3. Rated LV: 0.4kv 4. Frequency: 50Hz or 60Hz 5. Cooling methods: ONAN 6. Tapping Range: ±5% ±2x2.5% 7. Phase: Single Phase or Three Phases 8. Connection Symbol: Yyn0 or Dyn11
RATED POWER (KVA) | VOLTAGE(KV) | HIGH VOLTAGE TAPPING RANGE | CONNECTION SYMBOL | LOSS(KW) | NO-LOAD CURRENT (%) | IMPEDENCE VOLTAGE(%) | WEIGHT(KG) | OVERAL DIMENSION(MM) L*W*H |
H.V. | L.V. | NO-LOAD | LOAD(75ºC) | OIL WEIGHT | OVERAL WEIGHT |
200 | 11 10.5 10 6.3 6 | 6.3 6 3.15 | ±5% OR ±2*2.5% | Yd11 | 0.34 | 3.15 | 1.8 | 4.5 | 160 | 1000 | 1180*740*1270 |
250 | 0.40 | 3.60 | 1.7 | 200 | 1190 | 1230*780*1340 |
315 | 0.48 | 4.30 | 1.6 | 215 | 1360 | 1260*810*1370 |
400 | 0.57 | 5.20 | 1.5 | 260 | 1650 | 1380*900*1390 |
500 | 0.68 | 6.20 | 1.4 | 280 | 1890 | 1400*920*1450 |
630 | 0.83 | 6.93 | 0.9 | 5.5 | 340 | 2245 | 1580*1020*1430 |
800 | 1.00 | 8.47 | 0.8 | 385 | 2645 | 1665*1070*1520 |
1000 | 1.19 | 9.92 | 0.7 | 430 | 2980 | 1740*1160*1550 |
1250 | 1.40 | 11.80 | 0.6 | 590 | 3640 | 1820*1210*1740 |
1600 | 1.69 | 14.11 | 0.6 | 680 | 4270 | 1840*1240*1860 |
2000 | 2.02 | 16.93 | 0.6 | 725 | 4775 | 2210*1920*1970 |
2500 | 2.38 | 19.67 | 0.6 | 910 | 5710 | 2260*1970*1995 |
3150 | 2.81 | 23.09 | 0.5 | 1350 | 7085 | 2320*2280*2360 |
4000 | 3.46 | 27.36 | 0.5 | 1675 | 8150 | 2460*2820*2810 |
5000 | 4.11 | 31.38 | 0.5 | 1940 | 9610 | 2575*2640*2590 |
6300 | 4.90 | 34.77 | 0.5 | 2550 | 12660 | 2640*2820*2810 |
8000 | 6.52 | 40.50 | 0.55 | 2780 | 15100 | 2710*2840*3040 |
10000 | 7.70 | 47.70 | 0.55 | 3070 | 17480 | 2850*2880*3265 |
![](/proimages/44f3j00EtRTdhZovuqL/transformer-3-phase-oil-immersed-distribution-transformer-33kv-dry-type-power-transformer.jpg)
![](/proimages/44f3j00EaYtdkKwYubH/transformer-3-phase-oil-immersed-distribution-transformer-33kv-dry-type-power-transformer.jpg)

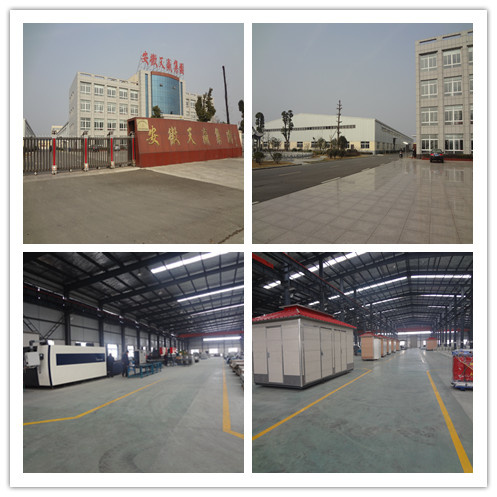

Anhui Tianying Electrical Equipment Manufacturing Co., Ltd was established in 2008, and located in NO. 18 Changchun Road Lixin Industrial Park, Anhui Province, China. It covers an area of more than 53360 square meters and is one of the largest professional manufacturers in China.
Since established, and through continuous innovation and development, we have formed a high tech group company with electric power survey and design, set of equipment manufacturing, electrical power distribution equipment installation and commissioning, to provide comprehensive services to the power industry.
