Transformer, Combined Type Power Transformer, Control Transformer

Name: Transformer, Combined Type Power Transformer, Control Transformer
Brand: china-manufacturer-directory.com
SKU: 751076125
Availability: InStock
Rating: 4.6 (69 reviews)

Supplier:	Anhui Tianying Electrical Equipment Manufacturing Co., Ltd.
Price:	US $ 2000-8000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Application:	Rectifier
Coil:	Core-type Transformer
Winding Type:	Multi-winding Transformer
Cooling Method:	Oil-immersed Type Transformer
Brand:	Tianying

Product Description

Transformer Product Description:

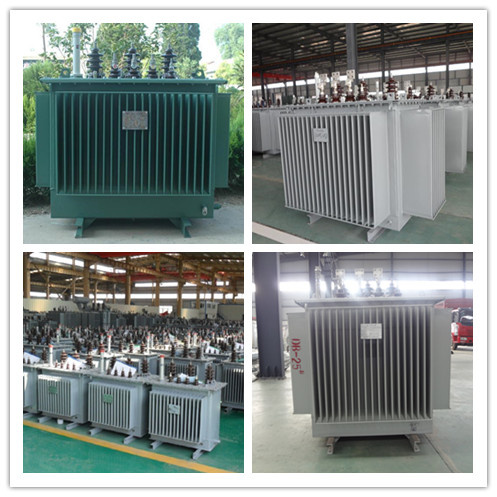

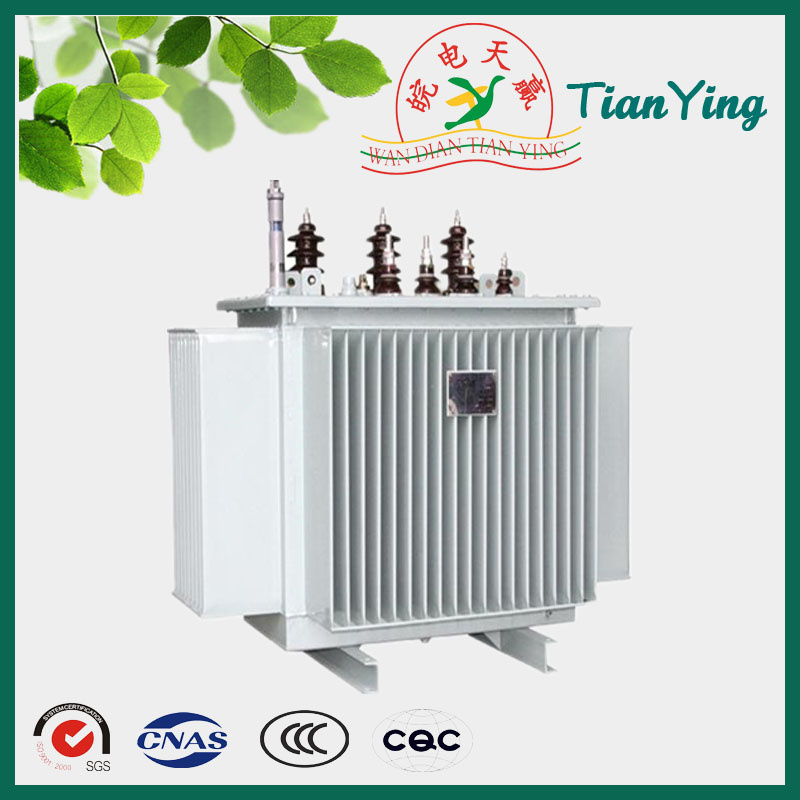

S11-M series Oil Immersed type Distribution Transformer is applied to power system of three-phase. 50Hz as well as 11KV and bellows. It is the main transformer equipment of medium and small-sized transformer substation, supplies power distribution, power and illumination for the industry and agriculture.

Advantage:
1, low no-load loss and low load loss;
2, low noise;
3, low voltage partial discharge;
4, high anti short-circuit capacity;
5, reliable performance, no oil leakage and no damages.

Compare with S9 series Transformer, S11-M series Transformer decrease 30% of no-load loss; decrease 70-85% of no-load current; decrease 10K of average temperature rising; double the service life; decrease the noise of 2-4db; decrease 40 % of running cost.

Normal S11-M Series Transformer apply to the altitude below 1000m; the circumstance temperature between -25ºC and +40ºC.

Technical parameters:

1. Rated capacity: 20~2500kVA

2. Rated HV: 6kV to 11 kV

3. Rated LV: 0.4kv

4. Frequency: 50Hz or 60Hz

5. Cooling methods: ONAN

6. Tapping Range: ±5% ±2x2.5%

7. Phase: Single Phase or Three Phases

8. Connection Symbol: Yyn0 or Dyn11

RATED POWER (KVA)	VOLTAGE(KV)		HIGH VOLTAGE TAPPING RANGE	CONNECTION SYMBOL	LOSS(KW)		NO-LOAD CURRENT (%)	IMPEDENCE VOLTAGE(%)	WEIGHT(KG)		OVERAL DIMENSION(MM) LWH
RATED POWER (KVA)	H.V.	L.V.	HIGH VOLTAGE TAPPING RANGE	CONNECTION SYMBOL	NO-LOAD	LOAD(75ºC)	NO-LOAD CURRENT (%)	IMPEDENCE VOLTAGE(%)	OIL WEIGHT	OVERAL WEIGHT	OVERAL DIMENSION(MM) LWH
200	11 10.5 10 6.3 6	6.3 6 3.15	±5% OR ±2*2.5%	Yd11	0.34	3.15	1.8	4.5	160	1000	11807401270
250					0.40	3.60	1.7		200	1190	12307801340
315					0.48	4.30	1.6		215	1360	12608101370
400					0.57	5.20	1.5		260	1650	13809001390
500					0.68	6.20	1.4		280	1890	14009201450
630					0.83	6.93	0.9	5.5	340	2245	158010201430
800					1.00	8.47	0.8		385	2645	166510701520
1000					1.19	9.92	0.7		430	2980	174011601550
1250					1.40	11.80	0.6		590	3640	182012101740
1600					1.69	14.11	0.6		680	4270	184012401860
2000					2.02	16.93	0.6		725	4775	221019201970
2500					2.38	19.67	0.6		910	5710	226019701995
3150					2.81	23.09	0.5		1350	7085	232022802360
4000					3.46	27.36	0.5		1675	8150	246028202810
5000					4.11	31.38	0.5		1940	9610	257526402590
6300					4.90	34.77	0.5		2550	12660	264028202810
8000					6.52	40.50	0.55		2780	15100	271028403040
10000					7.70	47.70	0.55		3070	17480	285028803265

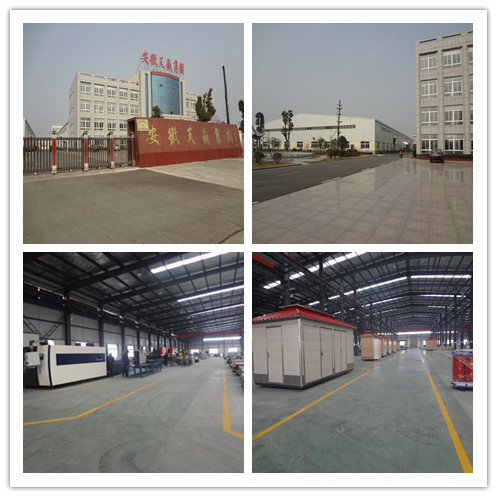

Anhui Tianying Electrical Equipment Manufacturing Co., Ltd was established in 2008, and located in NO. 18 Changchun Road Lixin Industrial Park, Anhui Province, China. It covers an area of more than 53360 square meters and is one of the largest professional manufacturers in China.

Since established, and through continuous innovation and development, we have formed a high tech group company with electric power survey and design, set of equipment manufacturing, electrical power distribution equipment installation and commissioning, to provide comprehensive services to the power industry.
