Transformer/ Combined Type Power Transformer/ Control Transformer
Product Specifications
| Prod Model: |
SCB10-1000KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Three |
| Application: |
Rectifier |
| Coil: |
Core-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Cooling Method: |
Dry-type Transformer |
| Brand: |
Tianying |
Product Description
Transformer Product Features:

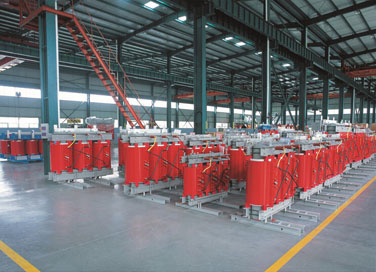

1.SCB10 is a three-phase,oil immersed,expoxy resin casting and dry type transformer with a capacity of 30-3150 KVA and frequency 50 HZ..
2.it applies to high building,commercial center,airport,tunnel,chemical plant,nuclear power plant, shipping, petrochemical industries and other special environmental occassions.
3.low off-load loss, off-load current and noise.
4.capable of safety, pollution-free and fire-proof.
4.high mechannical intensity and short-circuit resisitance.
5.the material of iron core is cold-rolled silicon steel sheet.
6.the coil of LV winding is foil winding while the coil of HV winding is multiplayer structure.
Service and Installation Conditions
Altitude:1000m
Environment temperature
The maximum temperature:+40
The maximum monthly average temperature:+30
The maximum yearly average temperature:+20
The lowest yearly temperature:-5
Power voltage waveform: power voltage waveform approximate sine.
The symmetry of multi-phase power voltage: connected power voltage of multi-phase
transformershould be approximately symmetrical.
Protection class:IP00, IP20, IP23.
Cooling style:air cold and forced air-cooled
Note: it should be explained if the transformer used in special conditions in order. -------------------------------------------- Rated
Power
(kVA) | Voltage Combination (kV) | Connection Symbol | No-load loss(W) | On-load loss(W) | Impedance(%) | No-load current(%) | Lp
dB(A) |
| 30 | 3 ~ 15 | Dyn11
Yyn0 | 190 | 620 | 4~6 | 1.8 | 43 |
| 50 | 270 | 860 | 1.8 | 43 |
| 80 | 370 | 1200 | 1.6 | 44 |
| 100 | 400 | 1370 | 1.6 | 44 |
| 125 | 470 | 1610 | 1.2 | 45 |
| 160 | 545 | 1850 | 1.2 | 45 |
| 200 | 630 | 2210 | 1.2 | 46 |
| 250 | 720 | 2400 | 1.2 | 46 |
| 315 | 880 | 3030 | 1.0 | 46 |
| 400 | 975 | 3480 | 1.0 | 47 |
| 500 | 1160 | 4260 | 1.0 | 47 |
| 630 | 1345 | 5130 | 0.8 | 48 |
| 800 | 1520 | 6075 | 0.8 | 48 |
| 1000 | 1770 | 7100 | 0.6 | 49 |
| 1250 | 2090 | 8465 | 0.6 | 50 |
| 1600 | 2450 | 10245 | 0.6 | 51 |
| 2000 | 3060 | 12620 | 0.4 | 51 |
| 2500 | 3600 | 14985 | 0.4 | 52 |

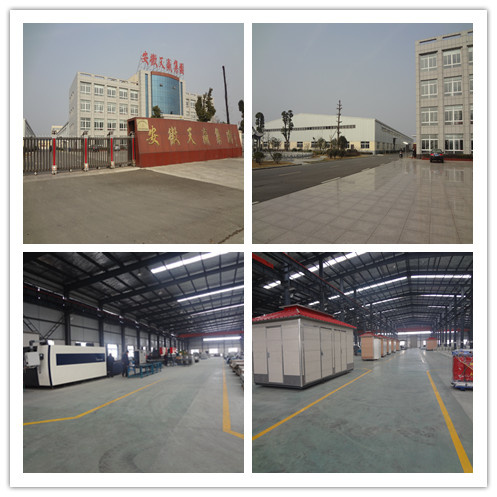

Anhui Tianying Electrical Equipment Manufacturing Co., Ltd was established in 2008, and located in NO. 18 Changchun Road Lixin Industrial Park, Anhui Province, China. It covers an area of more than 53360 square meters and is one of the largest professional manufacturers in China.
Since established, and through continuous innovation and development, we have formed a high tech group company with electric power survey and design, set of equipment manufacturing, electrical power distribution equipment installation and commissioning, to provide comprehensive services to the power industry.
