Product Specifications
| Prod Model: |
TSZ-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
60kn, |
| Specimen: |
Dia 61.8 X 125mm, Dia 101 X 220mm |
| Strain Rate: |
0.0024 - 4.5mm/Min |
| Platen Forward/Reverse: |
0 - 100mm |
| Confining Pressure: |
0 - 2.0MPa |
Product Description
Application:

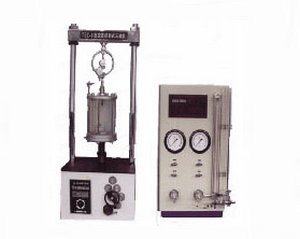

The Apparatus is used to determine the resisting shear strength of the soil specimen with maximum confining pressure of 2.0MPa and specimen dimension is of Ø61.8 x 125mm, Ø101 x 220mm. The apparatus can perform unconsolidated-undrained shear test (UU), consolidated-undrained shear test (CU), and consolidated-drained (CD) shear test. It consists of frame, test control device, pressure chamber and specimen tools etc.
Specifications:
1. Capacity : 60kN
2. Specimen : Ø61.8 x 125mm, Ø101 x 220mm
3. Strain rate : 0.0024 - 4.5mm/min
4. Platen forward/reverse : 0 - 100mm
5. Confining pressure : 0 - 2.0MPa
6. Back pressure : 0 - 0.8MPa
7. Pore pressure : 0 - 2.0MPa
8. Volume deformation : 0 - 100ml, minimum resolution: 0.2ml
9. Power supply : 380V 50Hz
10. Weight : 240kg (including main unit,controller,measuring equipment etc.)
SAMYON commit us supply professional line instruments and service to our clients refers to Building, Bridge, Highway, Channel, Airport and so on.
Our service and equipment include:
1. Geophysical exploration Consultation and relative instruments such as: IP& Resistivity systems, Fluxgate Magnetometer, Optical pump Magnetometer, Proton Magnetometer, TEM, EM system, Seismograph, Logging system, etc.
2. Construction lab and NDT instruments: Ultrasonic Cross-Hole Pile Tester, Integrity Pile tester, Rebar Locator, Concrete Chloride Migration Tester( RCM), ect.
3. We are also distributor of Petroleum equipment and accessories, to supply our clients inquiry.
With our engineer and professional technology team, we hope we can cooperate with you in future. Relative consultation service, mainly refers to Building, Bridge, Highway and lab. Relative consultation service, mainly refers to Building, Bridge, Highway and lab.
