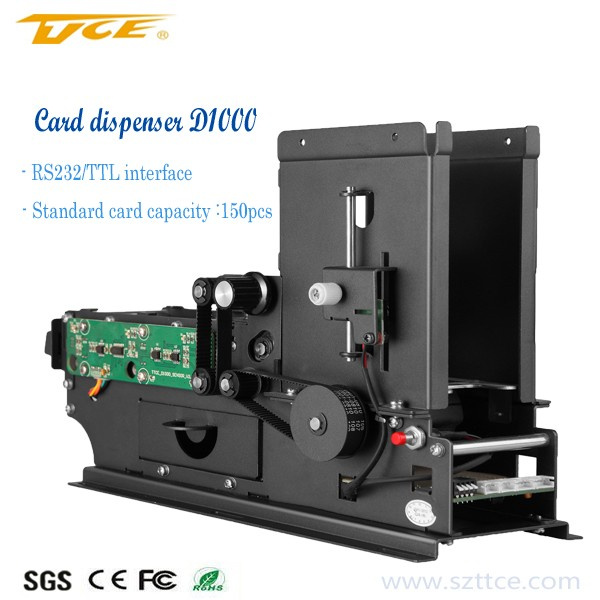

Product Specifications
| Prod Model: |
TTCE-D1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Card Style: |
RF/IC (Contactless/Contact Cards) |
| Operating Voltage: |
24VDC |
| Advantage: |
Card Empty and Pre-Empty Detect Function and Sound |
| Card Material: |
Plastic Card/Paper Card |
| Card Thickness: |
0.2-1.2mm |
| Communicate Interface: |
RS232/Ttl |
| Card Stay Position: |
Multiple Card Stay Position Control |
| Operation Condition: |
Install in The Cabinet |
| Weight: |
2.0kg(Include Card Holder) |
| Stacker Capacity: |
190PCS Standard Cards Based on The Thickness of 0. |
| Certification: |
RoHS |
| Type: |
Card Dispenser |
Product Description
Main features and functions
1) Card empty and pre-empty detect function and sound alarm.
2) Capturing card through a special card retrieving box.
3) Card thickness adjustment is convenient, precise and easy to operate.
4) RS232 control interface. May make multiple machine communication.
5)Pre-dispensing function accelerates the speed and ensures the continuous card issuing.
Subject |
Content |
Operation power |
24VDC (Max current 2A, static current 0.1A) |
Operation temperature |
-20 °C to 85 °C |
Operation humidity |
30-90% ( RH ) |
Interface |
TTL Interface |
Card stay position |
Multiple card stay position control |
Operation condition |
Install in the cabinet |
Card size |
Width: 54 ± 0.5 mm Length : 85 ± 0.5 mm Thickness : 0.2 – 2.0mm Adjustable Card material : paper card or polyester card |
Stacker capacity |
150pcs standard cards based on the thickness of 0.76 mm |
Few card Alert |
7~50pcs ( 0.76mm thick , Preset qty is 15pcs ) |
Install dimension |
Refer to product structure drawing |
Packaging & Shipping
Packing Detail:
Standard packing: 1sets/carton.The D1000 Automatic Card dispenser packing can be make to be 4sets/carton or other packing if there is larger order.
Packaging & Delivery
Detail :3-5days after product details and payment were confirmed .
Shipping:
Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on) EXPRESS: around 3-7 working days to arrive INTERNATIONAL AIR MAIL usually around 2-4 days to arrive, will also depend on which destination port By sea: depend on which destination port
Our Services
Warranty:
12 months of shipment normally. Some designated models can have as long as 24 months warranty.
RMA Procedure:
If you suspect your product is not functioning properly, please contact us to help determine whether your product is defective within warranty. Once determined defective you will receive an RMA authorization number for repair or replacement. Customers will return the defective product to us. Upon receipt of defective products, warranty verification will include visual inspection and testing for normal wear and tear, alteration, and functional compliance of the TTCE product. Defective products will be repaired or replaced and shipped via express within 30 days or best effort. Customers will not be charged for warranty repairs. However, if a returned product does not meet warranty verification then testing, repair, and/or shipping fees may apply.
Dead-on-Arrival (DOA):
Any product found to be defective within 30 days of shipment shall be deemed Dead on Arrival (DOA). DOA products will be advance replaced and shipped via express.
