Product Specifications
| Prod Model: |
OURS-2014 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
220V-380V |
| Dimension: |
as Per The Client |
| Weight: |
as Per The Client |
| Warranty: |
1 Year |
| Power: |
50-200kw |
| Type: |
Coating Production Line |
| Coating: |
Powder Coating |
| Substrate: |
Steel |
Product Description

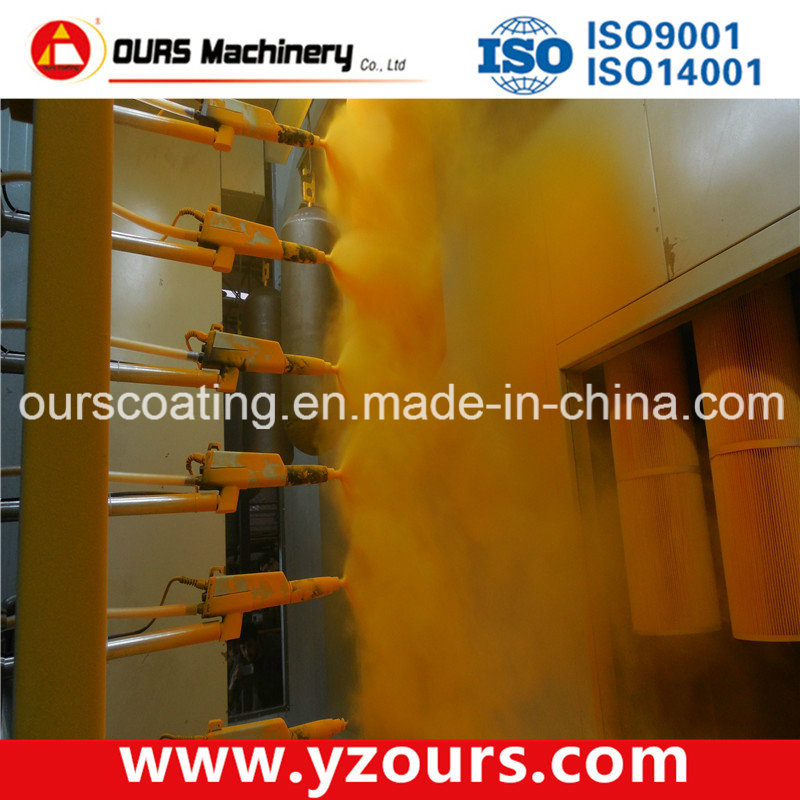

Turn-Key Powder Coating System with Fast Color Changing
Product advantages:
1. Operation under normal temperature
2. Simple structure with high-performance
3. Highly efficient process automation
Operating principle:
The workpiece is the positive electrode and the paint atomization device is the negative electrode which is connected with Negative High Voltage, thus high-voltage electrostatic field appears between the two poles, then the paint sprayed by the gun is electrified. The paint covers the workpiece and flow to the surface of the workpiece with certain direction along the power line, which creates the uniform membrane with strong adhesive force.
Main parts of the full line:
1. Pretreatment device
2. Powder coating gun
3. Electrostatic control equipment
4. Powder supplying system
5. Recovery system
6. Powder spraying booth
7. Auxiliary systems
| No. | Item | Description |
| 1 | Voltage | 60-90 KV |
| 2 | Power | 10-20μA |
| 3 | Velocity pressure | 0.30-0.55 MPa |
| 4 | Atomizing pressure | 0.30-0.45 MPa |
| 5 | Pressure for cleaning the gun | 0.5MPa |
| 6 | Fluidization pressure of powder-supplying barrel | 0.04-0.10 MPa |
| 7 | Space between the spraying mouth and the workpiece | 150-330mm |
| 8 | Speed of conveying chain | 4.5-5.5m/min |
Since 2006, Yangzhou OURS Machinery Co., Ltd., has been engaged in design, manufacture, installation of painting and environmental protection equipment.
We are a trust worthy supplier of world-renowned enterprises Sany Group and others large enterprises in China.
The company has passed the ISO9001 2008 quality management system certification and ISO14001 2004 Environment Management System certification.
Our main products are: Electrostatic spraying equipment, automatic lift type spray processing equipment, tank immersion pre-treatment devices, water curtain spray booth, water rotary spray booth, dry spray booth, Ω Electrostatic painting room, electric heating oil, gas, coal-fired hot air drying furnace, PLC automatic control system, shot blasting cleaning equipment, the anode and cathode electrophoresis equipment, advanced automotive spray paint room, conveying equipment, environmental equipment, painting equipment.
